CONTAINERIZED KITCHEN (CK)
UNIT MAINTENANCE PROCEDURES
perimeter of the door and by visually inspecting the entire gasket for hardness, cuts and a
deteriorated condition.
Casters: Attempt moving the refrigerator with the casters unlocked. It should move freely
without binding of the casters. Move the refrigerator in all directions to isolate the problem to a
particular caster. Check for foreign material in the caster flanges. Refer to the procedure in the
following section to replace a caster.
REPLACE
Power Cord: Make sure the power cord is unplugged from the electrical outlet. Remove the
screws from the access cover at the bottom rear of the refrigerator. Unplug the connector and
remove the green ground wire. Install the replacement power cord and securely connect the
green ground wire.
Temperature Controller:
fan/controller panel at the inside top of the refrigerator. Loosen the panel from the side molding
strips being careful not to damage the trim or the wiring behind the panel. Disconnect the
temperature-controller connector.
controller. Install the replacement controller using existing hardware.
fan/controller panel and slide the side molding strips onto the edges of the panel.
FAN
Door Gasket: Remove the screws from underneath the gasket material. Align the new gasket
around the door so that the screw holes are aligned. Replace all hardware.
TM 10-7360-226-13&P
See Figure 1. Remove the five machine screws from the
Remove the mounting hardware of the temperature
TEMPERATURE
CONTROLLER

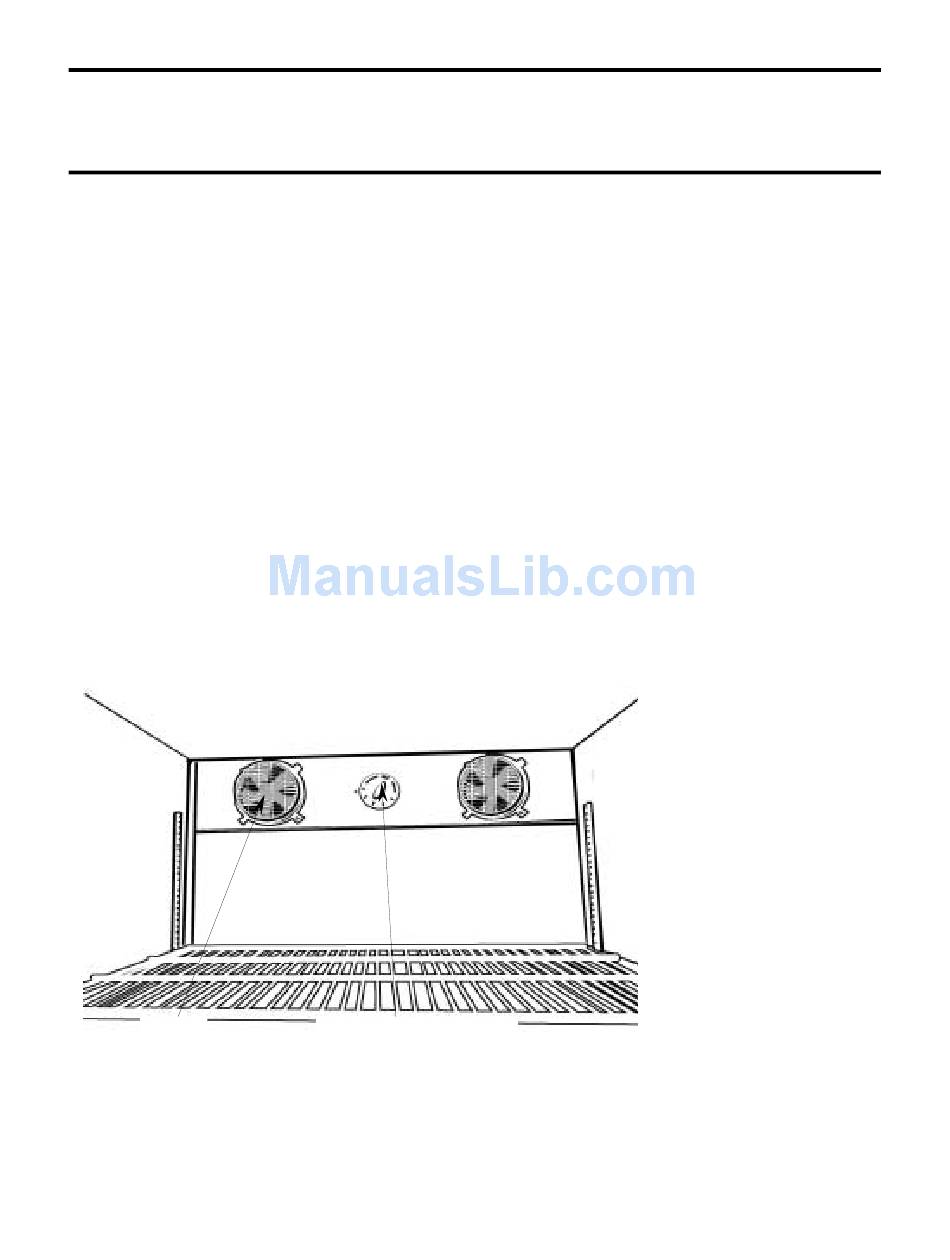

Figure 1. Refrigerator Interior.
0022 00-2
0022 00
Reinstall the
