CONTAINERIZED KITCHEN (CK)
THEORY OF OPERATION
FROM FRESH WATER
SYSTEM
50 FT WATER SUPPLY HOSE
50 FT WASTE WATER
HOSE
Waste water from the sink is routed inside the shelter, behind the refrigerators and mobile
warming cabinet, through a flexible 1.25-inch diameter interior drain hose to the floor drain near
the personnel access door. The drain hose ends have quick-disconnect couplings. One end
connects to the sink and the other to a fitting on the top of the shelter floor drain grate. Waste
water from the floor drain and sink is piped through the shelter floor to an external 1.25-inch
diameter male quick-disconnect near the personnel access door. A 50-foot, 1.25-inch diameter
exterior drain hose routes the waste water from that connection to a municipal drain or external
reclaiming tank. Both ends of the exterior drain hose have 1.25-inch diameter quick-disconnect
couplings. During transport mode, the drain hoses are coiled and stored in the hand sink
assembly. A quick-disconnect cover attached to the shelter exterior seals the external drain
connection during transport.
TM 10-7360-226-13&P
CK EXTERIOR CK INTERIOR
WATER HOSE
FITTING
FLEXIBLE DRAIN HOSE
TO WATER
QUICK
RECLAIM SYSTEM DISCONNECT

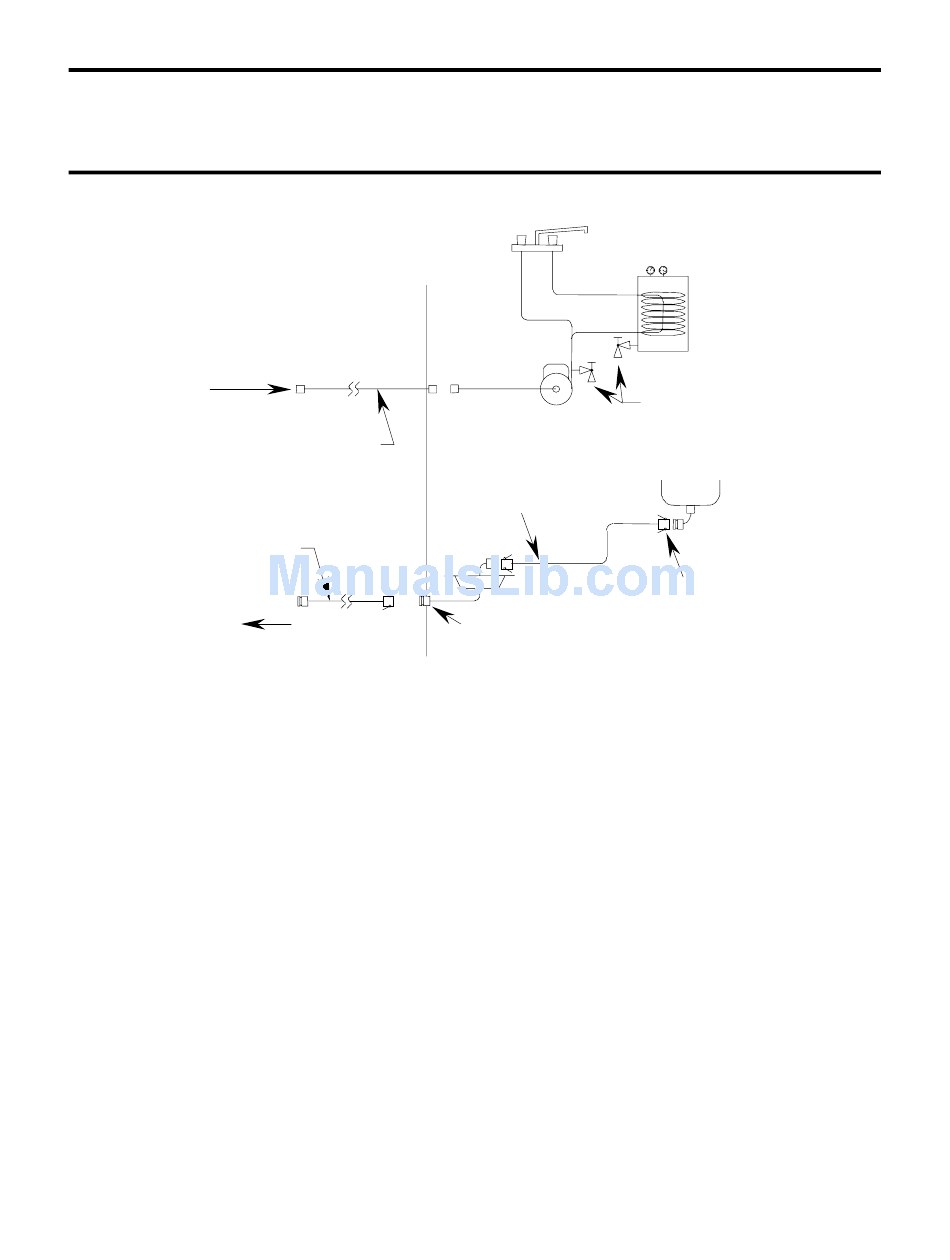

Figure 1. CK Drainage System.
0003 00-3/4 Blank
HAND SINK FAUCET
WATER
HEATER
DRAIN VALVES
WATER
PUMP
HAND SINK
COVERED
QUICK
FLOOR DRAIN
DISCONNECT
WASTE WATER DRAIN
0003 00
