CONTAINERIZED KITCHEN (CK)
DESCRIPTION OF OPERATOR CONTROLS AND INDICATORS
Refrigerators
Each refrigerator is controlled by a thermostat (Figure 10) located on the inside back wall of the
unit. Rotating the knob clockwise lowers the temperature setting (makes the refrigerator
colder). Rotating it fully counter-clockwise to OFF shuts off the unit. A small glass thermometer
on the side wall of each unit shows the temperature in
Environmental Control Unit (ECU)
The ECU is controlled by a wall-mounted, four-position rotary switch (Figure 11) located to the
right of the spice rack in the food preparation area. The switch positions are:
•
HIGH COOL – Both air conditioners operate continuously.
depending upon available electrical power.
•
LOW COOL – One air conditioner operates continuously.
•
OFF – Environmental Control Unit is not operating.
•
HEAT – Heater and one air conditioner fan operate continuously.
TM 10-7360-226-13&P

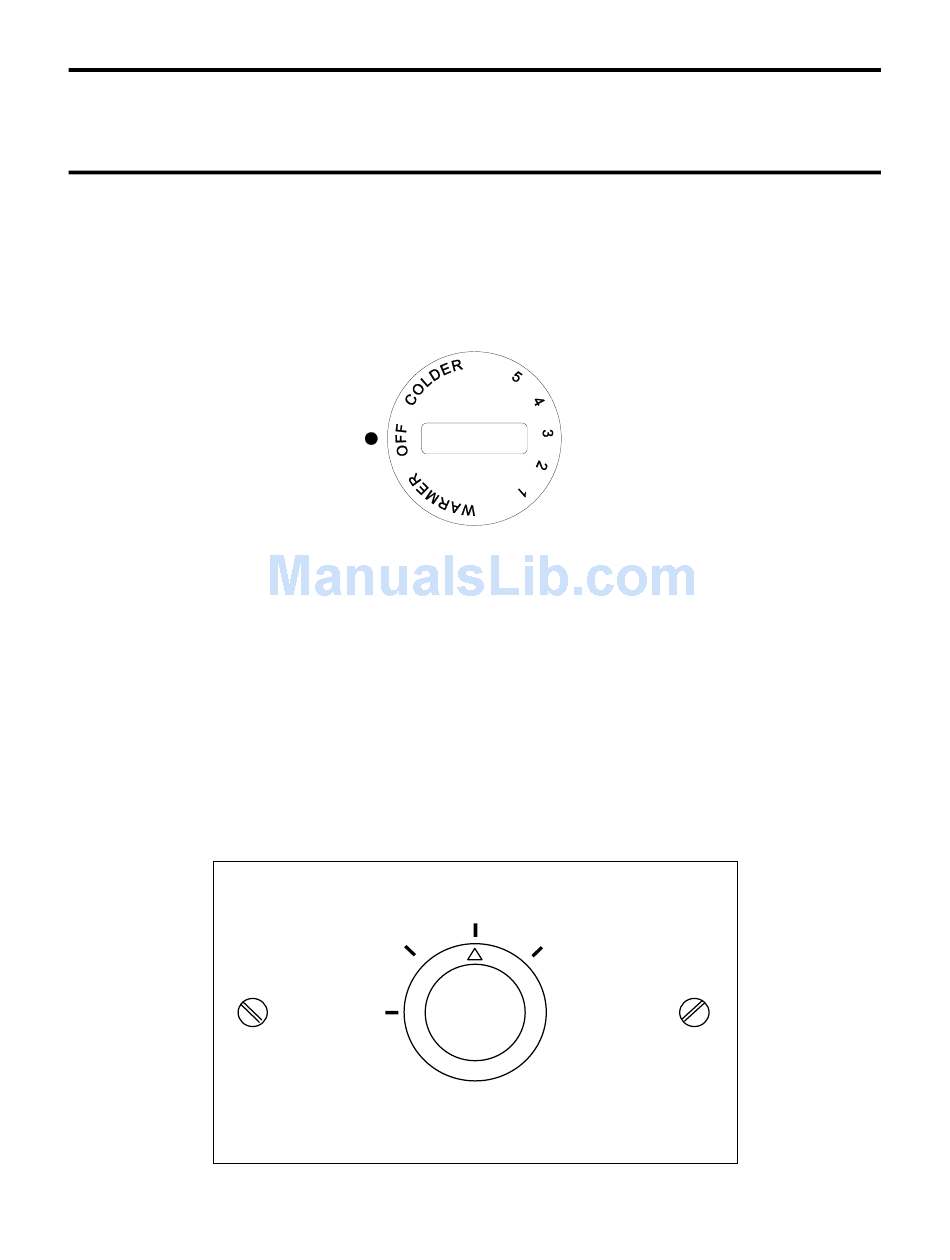

Figure 10. Refrigerator Thermostat Control.
LOW
CO OL
HIG H
CO OL
ECU CO NTROL
Figure 11. ECU Control Switch.
0005 00-10
o
F.
OFF
HEA T
0005 00
Compressors cycle
