CONTAINERIZED KITCHEN (CK)
EQUIPMENT DESCRIPTION AND DATA
Dual Oven Assembly
The dual oven assembly, Figure 11, consists of two MBU-fired ovens mounted on a mobile base
cabinet. Integral casters allow it to be easily moved between its operational and transport
locations. The assembly includes an integral exhaust gas oven fan and chimney pipe that
penetrates the fabric wall when positioned for operation. Positioning rails, permanently attached
to the floor at the assembly's operational location, position it with the correct clearance to
prevent damage to the walls from overheating.
OVENS
TM 10-7360-226-13&P

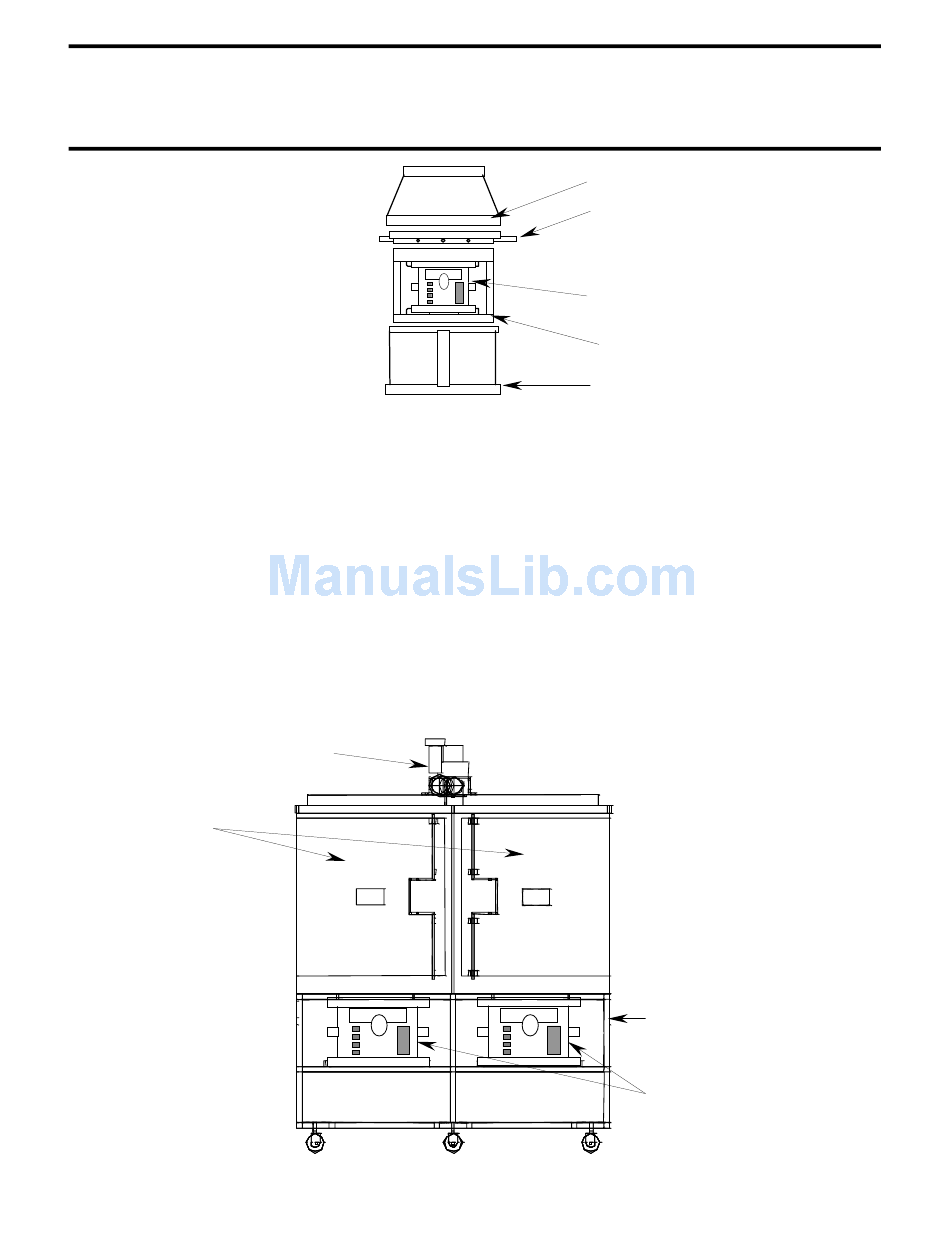

Figure 10. Cook Pot Assembly
OVEN FAN
Figure 11. Dual Oven Assembly.
0002 00-10
COOK POT CRADLE
COOK POT
CRADLE ADAPTER
MBU
BURNER RACK
BASE RACK
BASE ASSEMBLY
MBUs
0002 00
