Before Installing Intel ® I/O Expansion Module At The Left Edge Of The Board (Optional); Figure 60. Installing Intel I/O Expansion Module - Intel R2000LH2 Service Manual

Hardware Installations and Upgrades
3. Remove the power supply modules. For instructions, see
Module(s).
4. Remove the PCI riser assemblies. For instructions, see
5. Remove the air duct. For instructions, see
Before Installing Intel
Board (Optional)
1. Install the module to the provided bracket (see letter A).
2. Secure the module to the bracket with the three screws (see letter B).
3. Install the provided connector converter (see letter C).
38
Removing the Air
®
I/O Expansion Module at the Left Edge of the
®

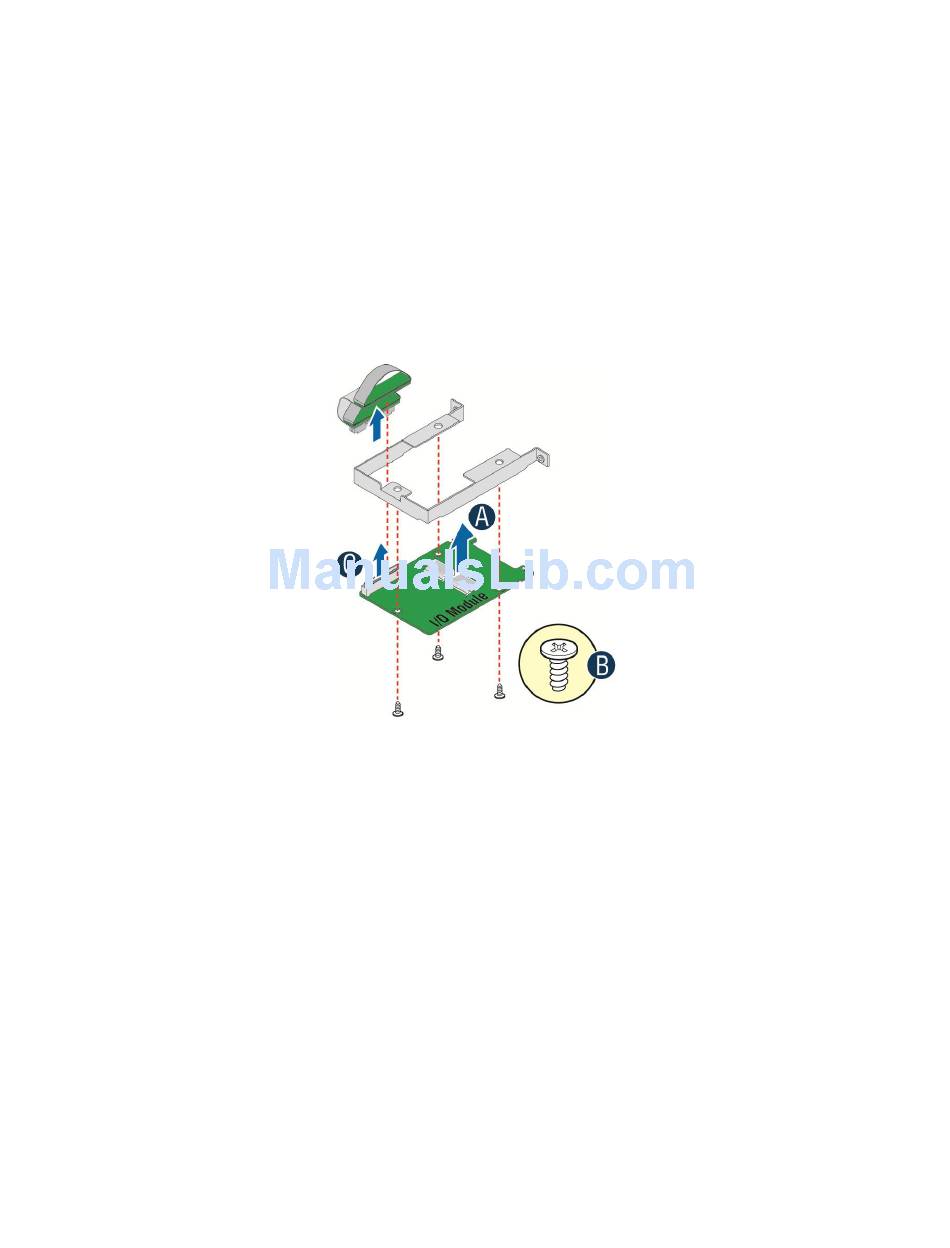

Figure 60. Installing Intel
Removing the Power Supply
Removing the PCI Riser
Duct.
I/O Expansion Module
®
Intel Server System R2000LH2/LT2 Service Guide
Assembly.
