Installing and Removing an Internal Solid State Drive

Before installing or removing the Solid State Drive, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the rack handles. For instructions, see
4. Slide the front end module in forward a bit. For instructions, see

Installing a Solid State Drive

1. Remove the two screws to release the Solid State Drive carrier (see letter A)
2. Place the Solid State Drive in the carrier (see letter B).
3. Secure the Solid State Drive with the four screws (see letter C).
4. Slide the Solid State Drive carrier into the chassis (see letter D).
5. Secure the Solid State Drive carrier with the two screws (see letter E).
6. Connect cables (see letter F).
®
Intel Server System R2000LH2/LT2 Service Guide
Hardware Installations and Upgrades
Removing the System
Removing the Rack

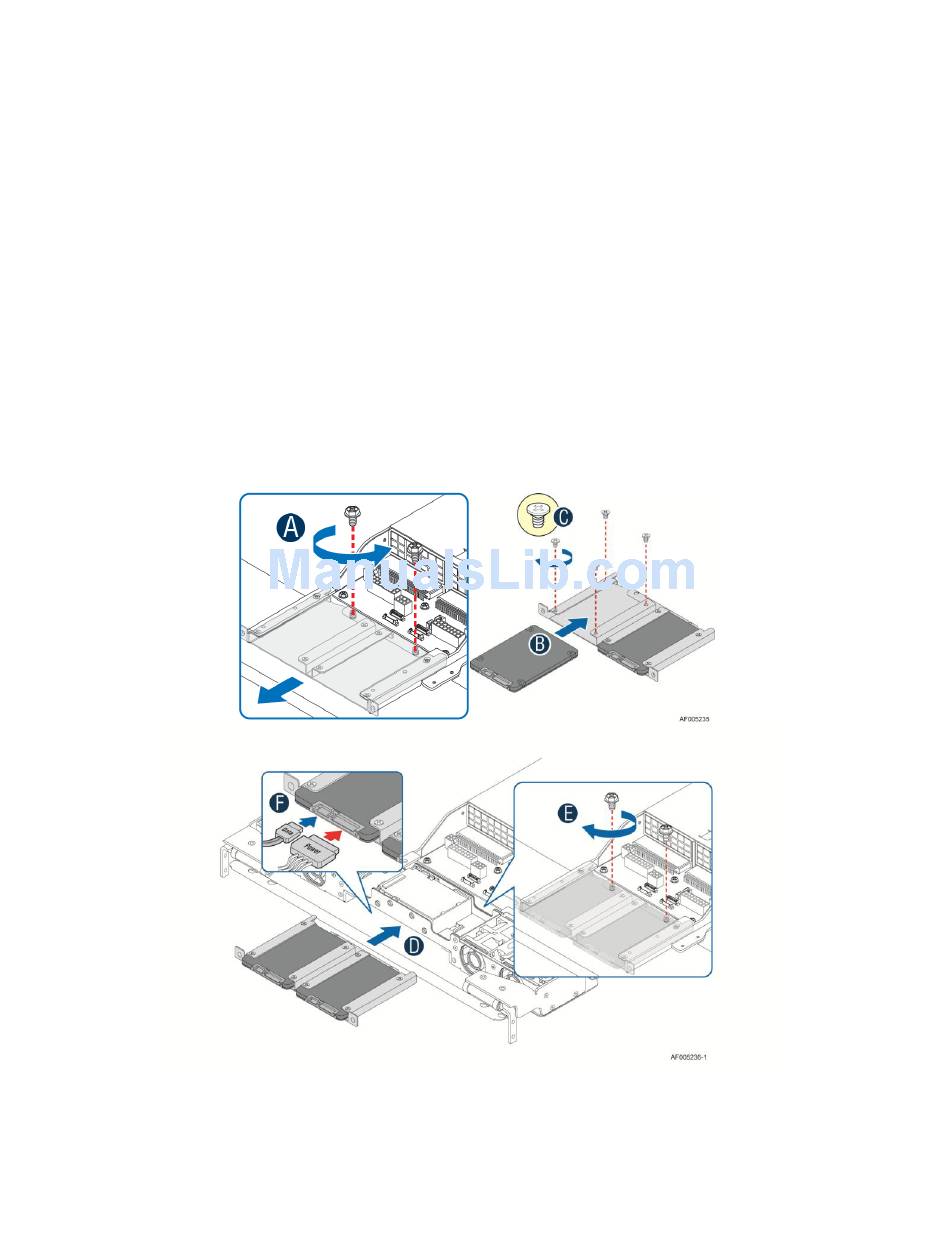

Figure 66. Installing a SSD

Cover.
Handles.
Removing the Front End Module.
43
