Hardware Installations and Upgrades
Installing a Full-length PCI Add-in Card
1. Remove the screw (See letter A), install and secure the provided proper bracket as shown (see
letter B)
2. Remove the filler panel from the add-in card slot and remove the screw as shown (see letter C).
3. Insert add-in card until it sits in the riser connector (see letter D).
4. Secure the add-in card with screw as shown (see letter E).

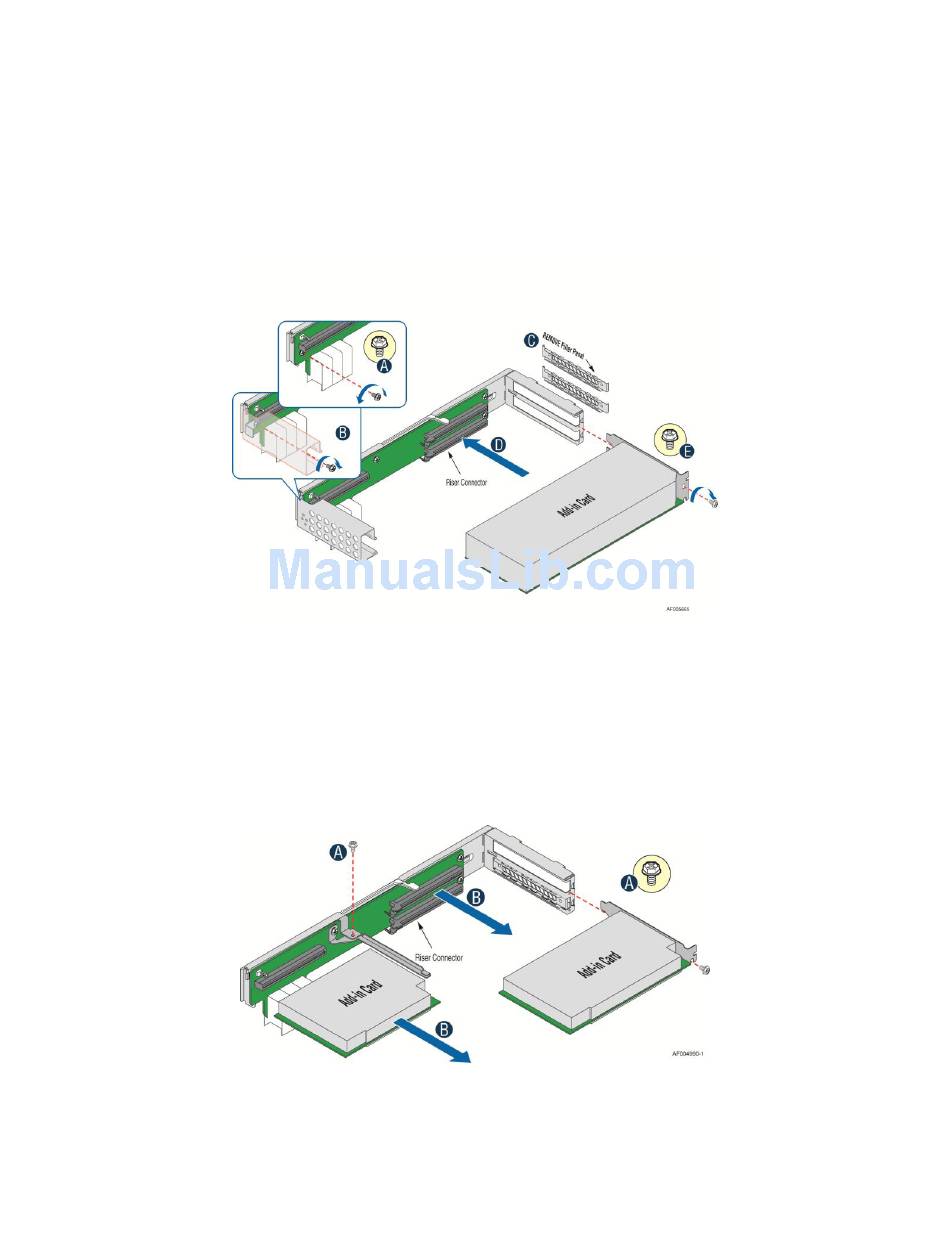

Figure 34. Installing a Full-Length PCI Add-In Card

Removing a PCI Add-in Card

Removing a Half-Length PCI Add-in Card
1. Remove the screw as shown (see letter A).
2. Remove the PCI add-in card from the riser card connector (see letter B).

Figure 35. Removing a Half-Length PCI Add-In Card

Note: Make sure that all empty add-in card slots have filler panels installed.
®
Intel Server System R2000LH2/LT2 Service Guide 25
