Front Panel

Label
A System ID Button w/Integrated LED
B NMI Button (recessed, tool required for use)
C NIC-1 Activity LED
D 
Not Used
E System Cold Reset Button

Back Panel

Label
A USB Ports
B USB Ports
C I/O Module Ports/Connectors (Optional)
D Video Connector
NIC – 1
E
NIC – 2
F
G RJ45 Serial-A Port
®
Intel Server System R2000LH2/LT2 Service Guide
Description

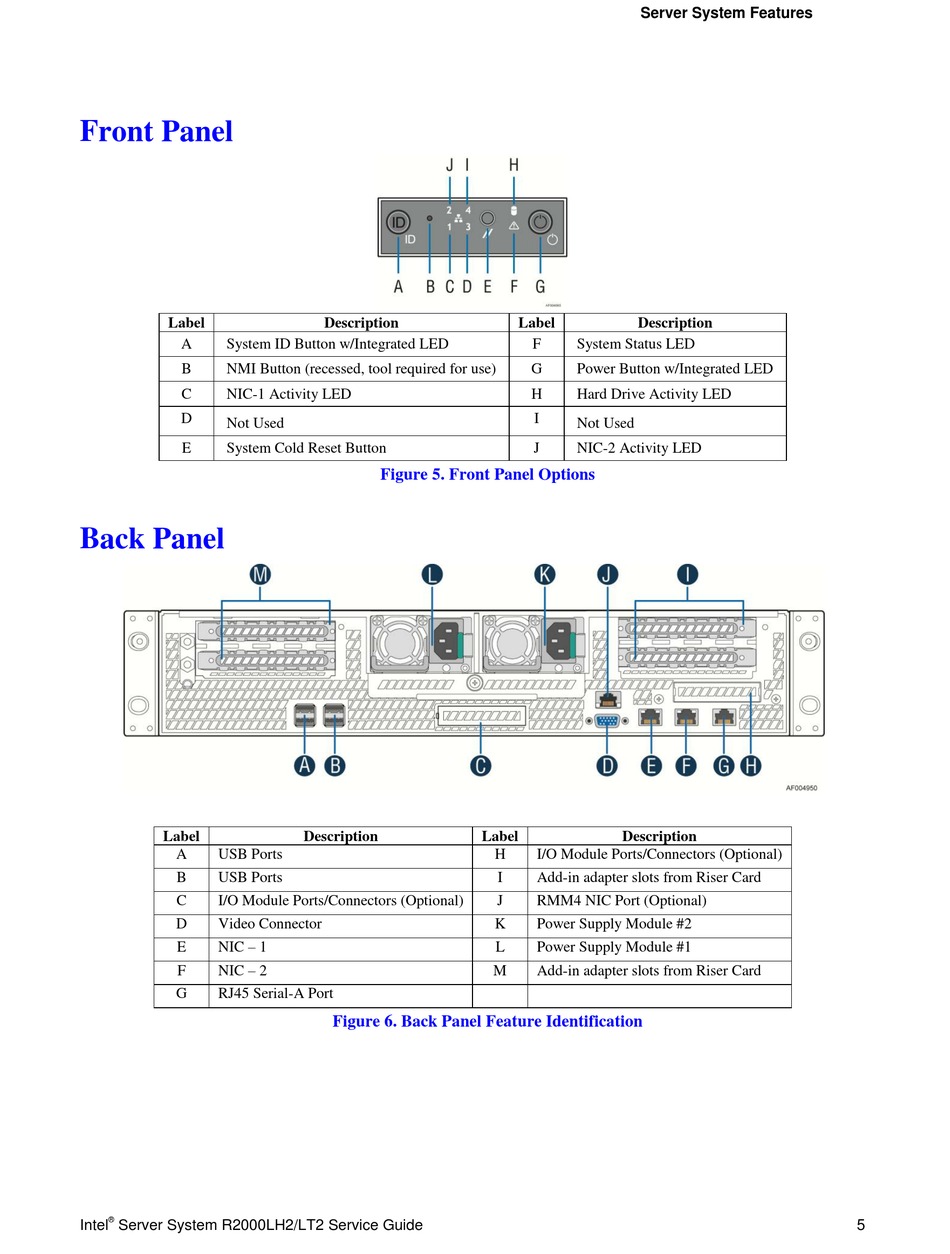

Figure 5. Front Panel Options

Description Label

Figure 6. Back Panel Feature Identification

Server System Features
Label Description
F System Status LED
G Power Button w/Integrated LED
H Hard Drive Activity LED
I 
Not Used
J NIC-2 Activity LED
Description
H I/O Module Ports/Connectors (Optional)
I Add-in adapter slots from Riser Card
J RMM4 NIC Port (Optional)
K Power Supply Module #2
L Power Supply Module #1
M Add-in adapter slots from Riser Card
