5. Pull the release button in the inner member to release the lock and allow the chassis to close.

Removing the Chassis from Rack

1. Fully extend the slides until it is in the locked position, pull the release button to release lock
and disconnect inner member from slides.
®
Intel Server System R2000LH2/LT2 Service Guide

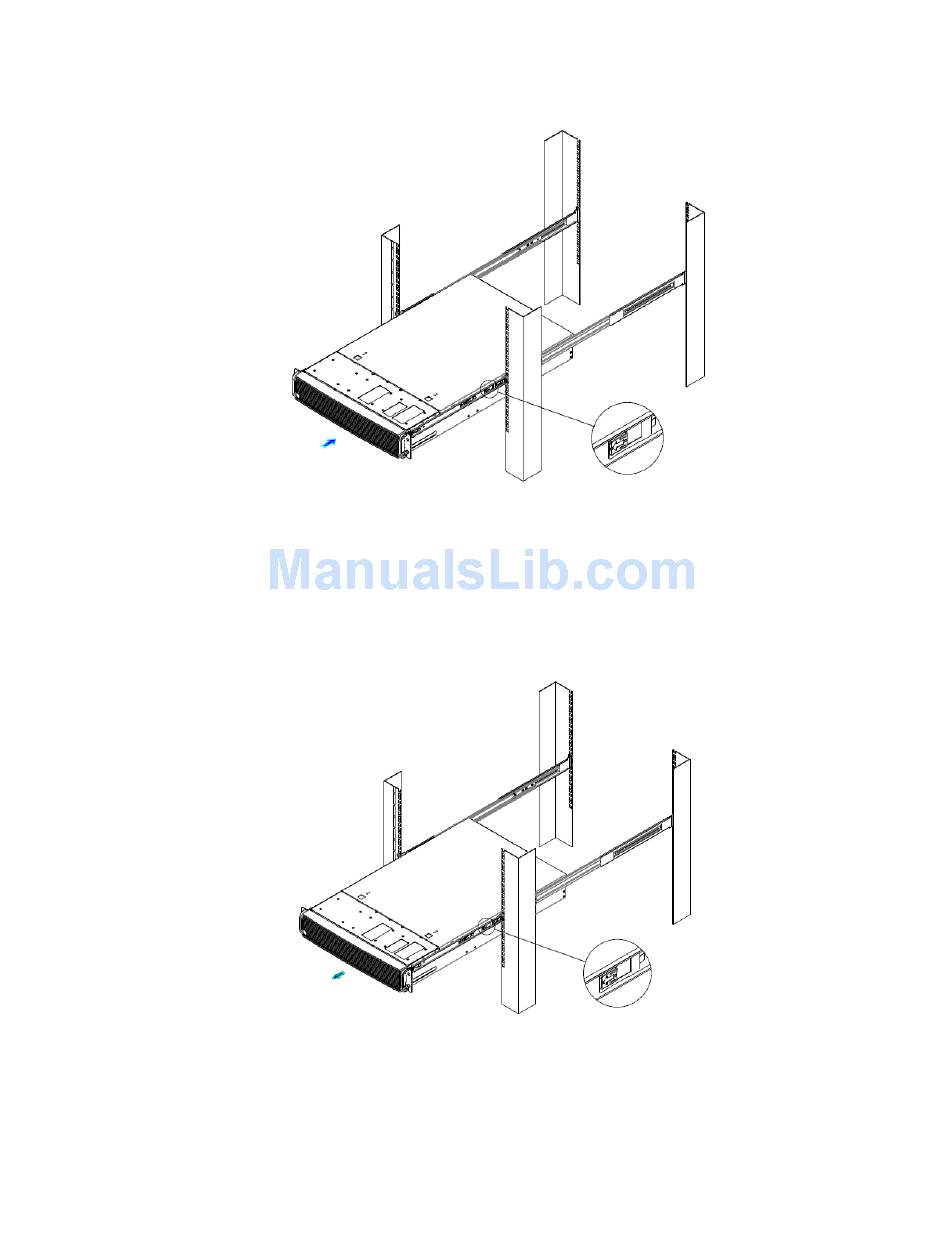

Figure 85. Install Chassis to Fixed Slides

Figure 86. Extend Slides

Hardware Installations and Upgrades
59
