Note: A non-skid surface or a stop behind the server system may be needed to prevent the server
system from sliding on your work surface.
1. Observe the safety and ESD precautions at the beginning of this book.
2. Turn off all peripheral devices connected to the server. Turn off the server.
3. Disconnect the power cord.
4. Remove the screws (see letter A).
5. Depress the latches (see letter B).
6. Slide the cover back and lift upward.

Installing the System Cover

1. Place system cover onto the chassis and slide forward to engage recessed edge at front of
cover (see letter A).
2. Tighten the screw at front (see letter B).
®
Intel Server System R2000LH2/LT2 Service Guide

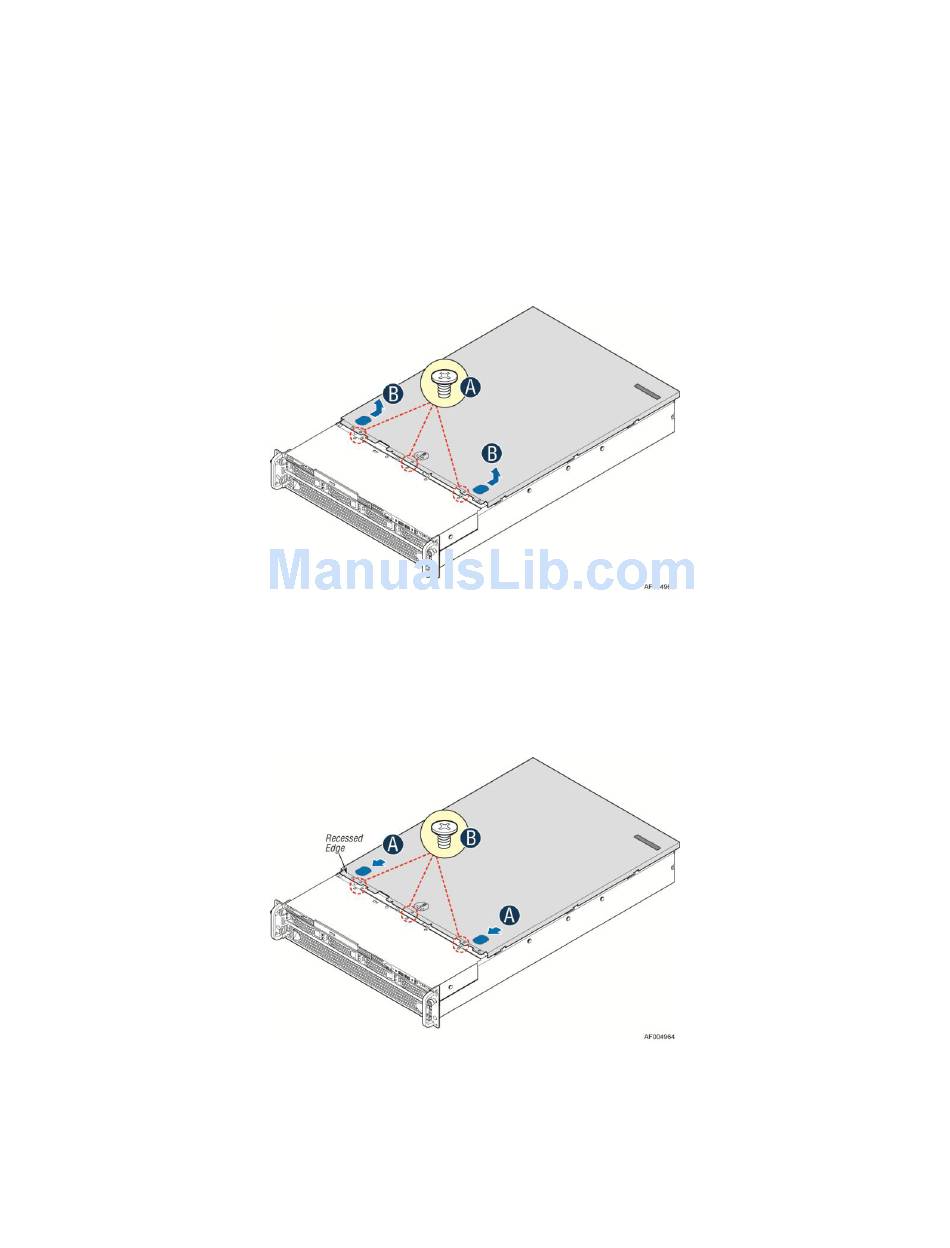

Figure 27. Removing the System Cover

Figure 28. Installing the System Cover

Hardware Installations and Upgrades
21
