Hardware Installations and Upgrades
Removing the LCP Module
1. Disconnect LCP and USB cables from server board (see letter A).
2. Remove the two screws as shown (see letter B).
3. Slide the module out (see letter C).
4. Remove the two screws as shown, slide the front USB header out (see letter D).
5. Install the front video and USB module. For instructions, see
USB
Module.
56

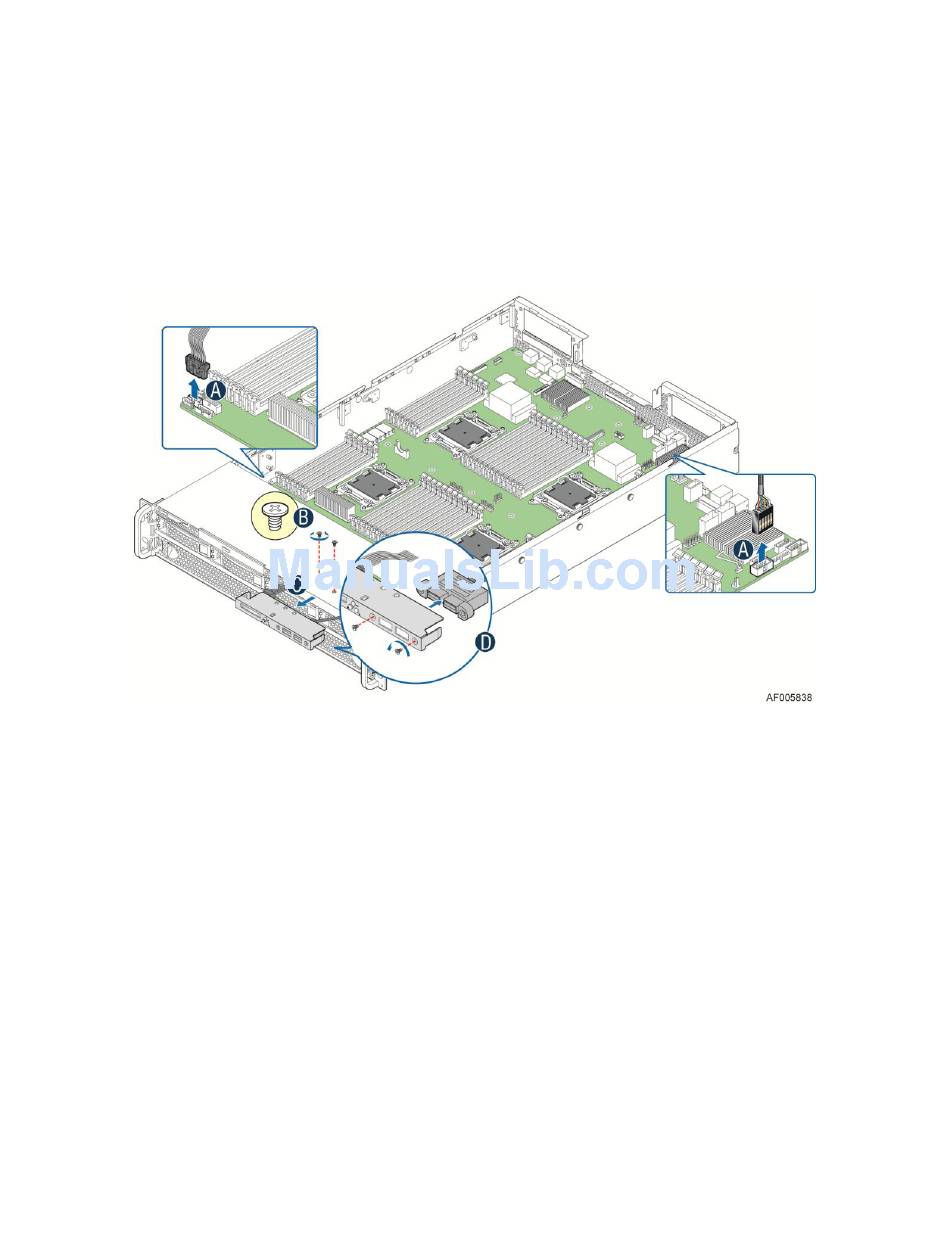

Figure 81. Removing the LCP Module
Installing the Front Video and
®
Intel
Server System R2000LH2/LT2 Service Guide
