Setup Screen Menu Selection Bar; Bios Setup Utility Screens - Intel R2000LH2 Service Manual

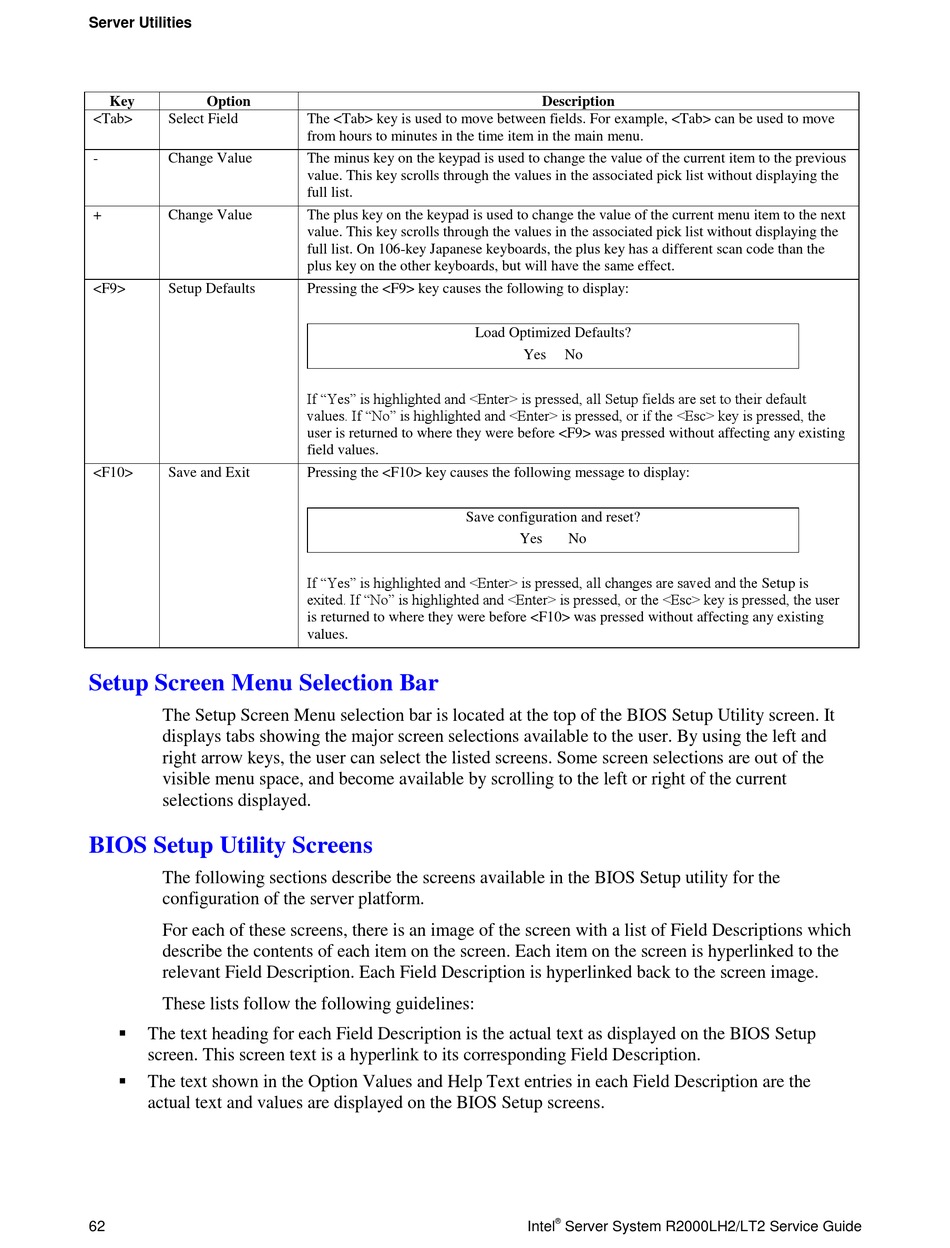

Server Utilities
Key Option
<Tab> Select Field
- Change Value
+ Change Value
<F9> Setup Defaults
<F10> Save and Exit

Setup Screen Menu Selection Bar

The Setup Screen Menu selection bar is located at the top of the BIOS Setup Utility screen. It
displays tabs showing the major screen selections available to the user. By using the left and
right arrow keys, the user can select the listed screens. Some screen selections are out of the
visible menu space, and become available by scrolling to the left or right of the current
selections displayed.

BIOS Setup Utility Screens

The following sections describe the screens available in the BIOS Setup utility for the
configuration of the server platform.
For each of these screens, there is an image of the screen with a list of Field Descriptions which
describe the contents of each item on the screen. Each item on the screen is hyperlinked to the
relevant Field Description. Each Field Description is hyperlinked back to the screen image.
These lists follow the following guidelines:

The text heading for each Field Description is the actual text as displayed on the BIOS Setup
screen. This screen text is a hyperlink to its corresponding Field Description.

The text shown in the Option Values and Help Text entries in each Field Description are the
actual text and values are displayed on the BIOS Setup screens.
62
The <Tab> key is used to move between fields. For example, <Tab> can be used to move
from hours to minutes in the time item in the main menu.
The minus key on the keypad is used to change the value of the current item to the previous
value. This key scrolls through the values in the associated pick list without displaying the
full list.
The plus key on the keypad is used to change the value of the current menu item to the next
value. This key scrolls through the values in the associated pick list without displaying the
full list. On 106-key Japanese keyboards, the plus key has a different scan code than the
plus key on the other keyboards, but will have the same effect.
Pressing the <F9> key causes the following to display:
Load Optimized Defaults?
If "Yes" is highlighted and <Enter> is pressed, all Setup fields are set to their default
values. If "No" is highlighted and <Enter> is pressed, or if the <Esc> key is pressed, the
user is returned to where they were before <F9> was pressed without affecting any existing
field values.
Pressing the <F10> key causes the following message to display:
Save configuration and reset?
If "Yes" is highlighted and <Enter> is pressed, all changes are saved and the Setup is
exited. If "No" is highlighted and <Enter> is pressed, or the <Esc> key is pressed, the user
is returned to where they were before <F10> was pressed without affecting any existing
values.
Description
Yes No
Yes No
®
Intel Server System R2000LH2/LT2 Service Guide
