Removing The Air Duct; Installing The Air Duct; Figure 37. Removing The Air Duct; Figure 38. Installing The Air Duct - Intel R2000LH2 Service Manual

Removing the Air Duct

1. Loosen the thumbscrew under the power supply cage at the rear of the system.
2. Lift up the tilt bay and fully open it to 110 degrees (see letter A).
3. Bend and slide out the air duct (see letter B).
4. Remove the air duct from the chassis (see letter C).

Installing the Air Duct

1. Bend and slide in the air duct (see letter A).
2. Install air duct into the chassis (see letter B).
3. Flip down the power supply (see letter C).
®
Intel Server System R2000LH2/LT2 Service Guide
Hardware Installations and Upgrades

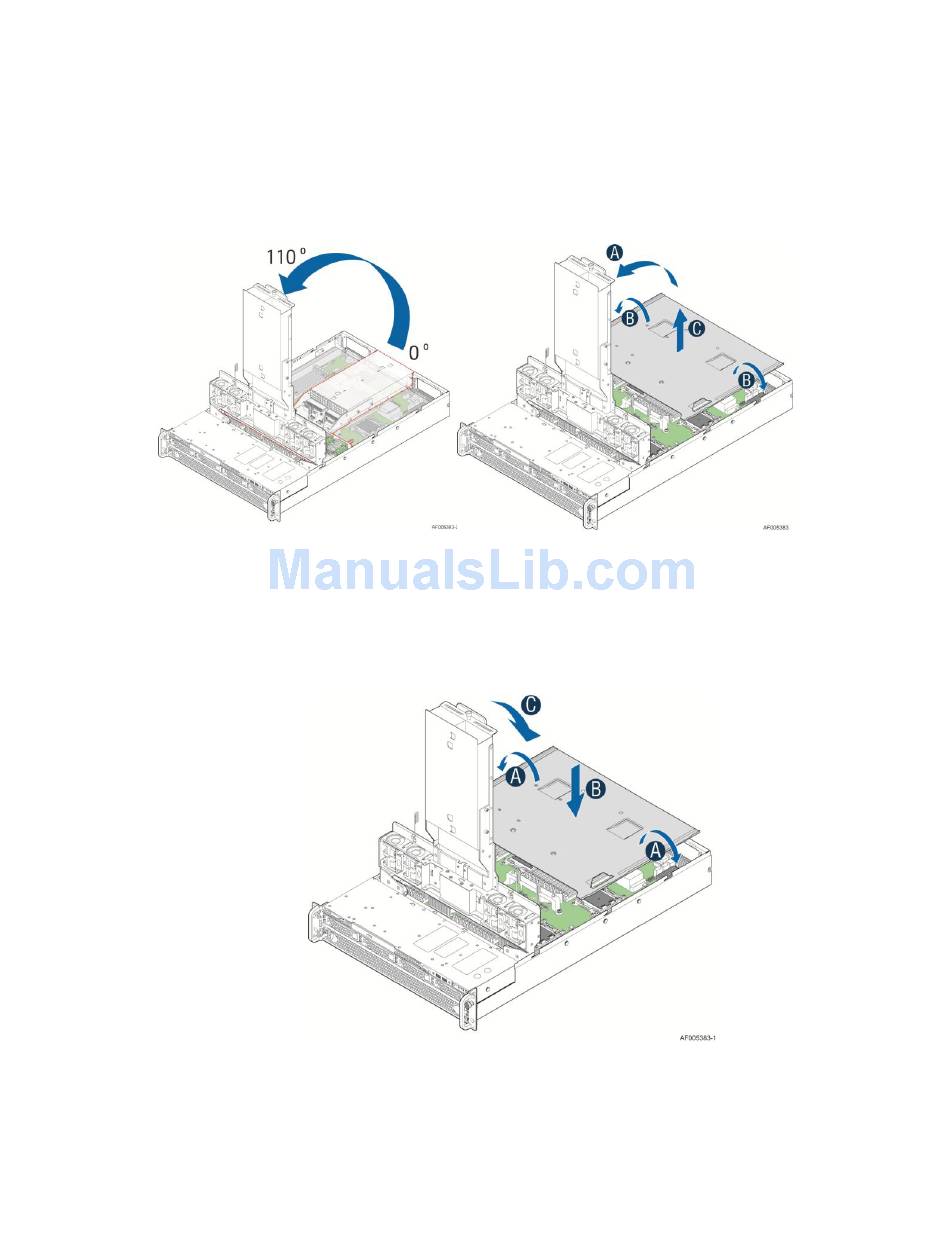

Figure 37. Removing the Air Duct

Figure 38. Installing the Air Duct

27
