Hardware Installations and Upgrades
Installing the Chassis into Rack
1. Pull release button to remove inner member from slides.
2. Align brackets to desired vertical position on rack and insert fasteners.
3. Move ball retainer to the front of slides.
4. Align inner member key holes to standoffs on chassis, move inner member as shown below.
58

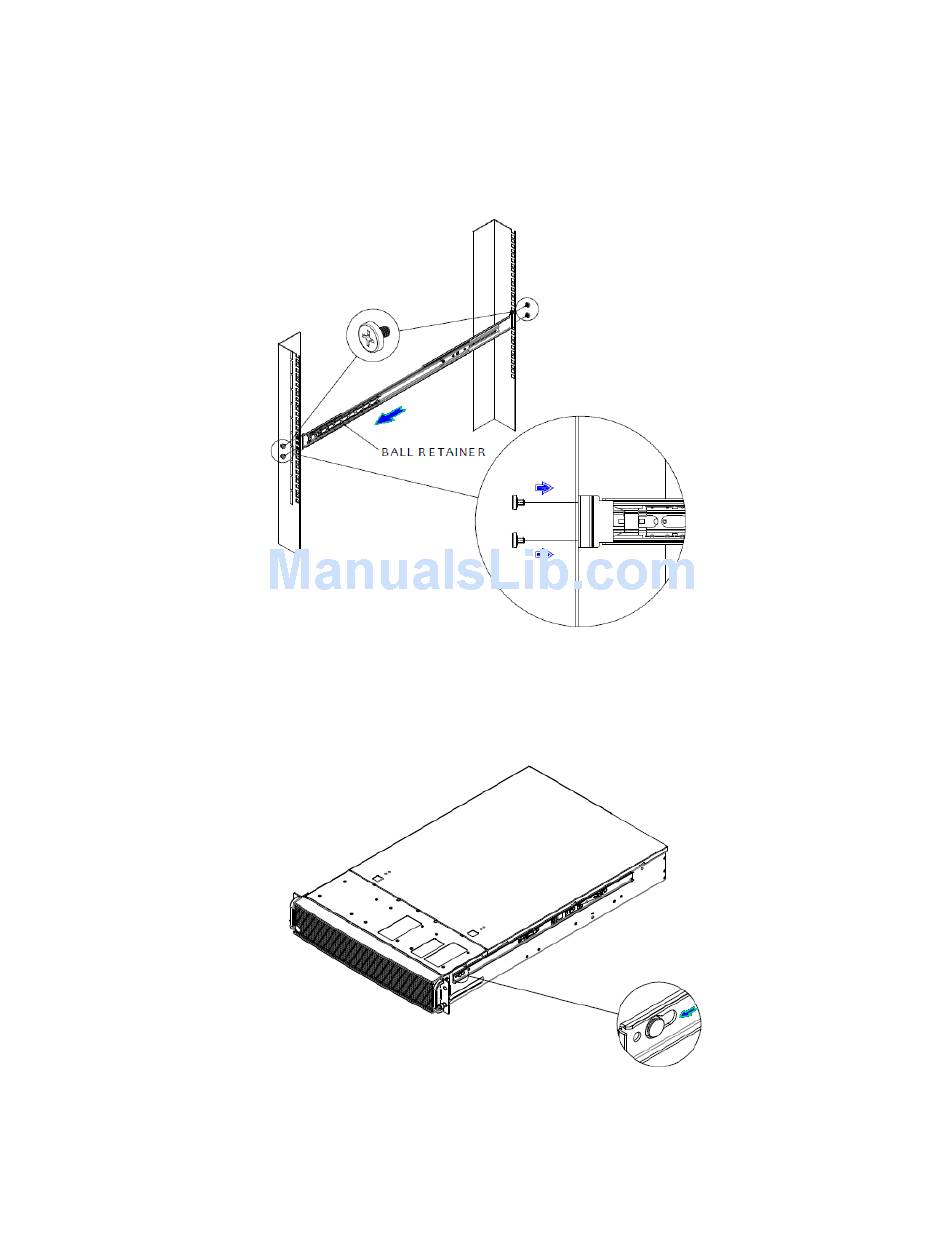

Figure 83. Install Slides to Rack
Figure 84. Install Inner Member to Chassis
®
Intel
Server System R2000LH2/LT2 Service Guide
