Install The Intel Rmm4 Nic; Removing The Intel Rmm4 Lite; Installing The Intel ® Rmm4 Lite; Removing The Intel Rmm4 Nic - Intel R2000LH2 Service Manual

Hardware Installations and Upgrades
®
Install the Intel
1. Connect the cable to the server board (see letter A).
2. Secure the module with the two screws as shown (see letter B).
3. Connect the cable to the module (see letter C).
Removing the Intel
Pull up the RMM4 Lite module to remove it from the mother board.
Removing the Intel
1. Remove the cable to the module (see letter A).
2. Remove the two screws as shown and remove the module out of the server system (see letter B).
3. Remove the cable to the server board (see letter C).
42
RMM4 NIC

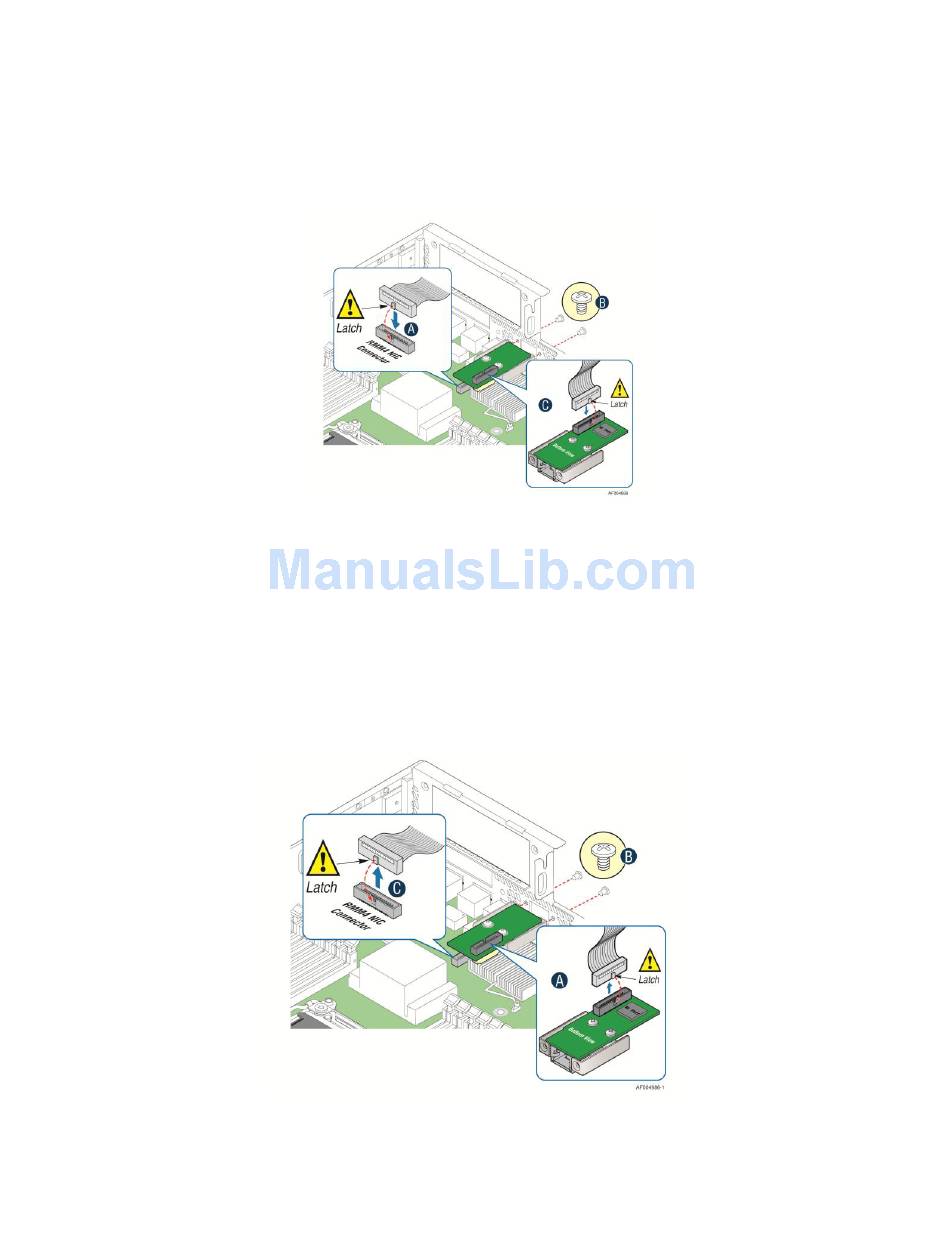

Figure 64. Installing the Intel

®
RMM4 Lite
®
RMM4 NIC

Figure 65. Removing the Intel

®
RMM4 NIC
®
RMM4 NIC
®
Intel Server System R2000LH2/LT2 Service Guide
