Installing and Removing the Intel

Module 4
Before installing or removing the Intel
steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the power supply modules. For instructions, see
Module(s).
4. Remove the PCI riser assemblies. For instructions, see
5. Remove the air duct. For instructions, see
Installing the Intel
Locate the RMM4 Lite connector next to onboard NIC port, carefully pick up the Intel
Lite module, and match the alignment pin of the module and the connector on server board.
Press to install.
®
Intel Server System R2000LH2/LT2 Service Guide
®
Remote Management Module 4, please make sure following
®
RMM4 Lite

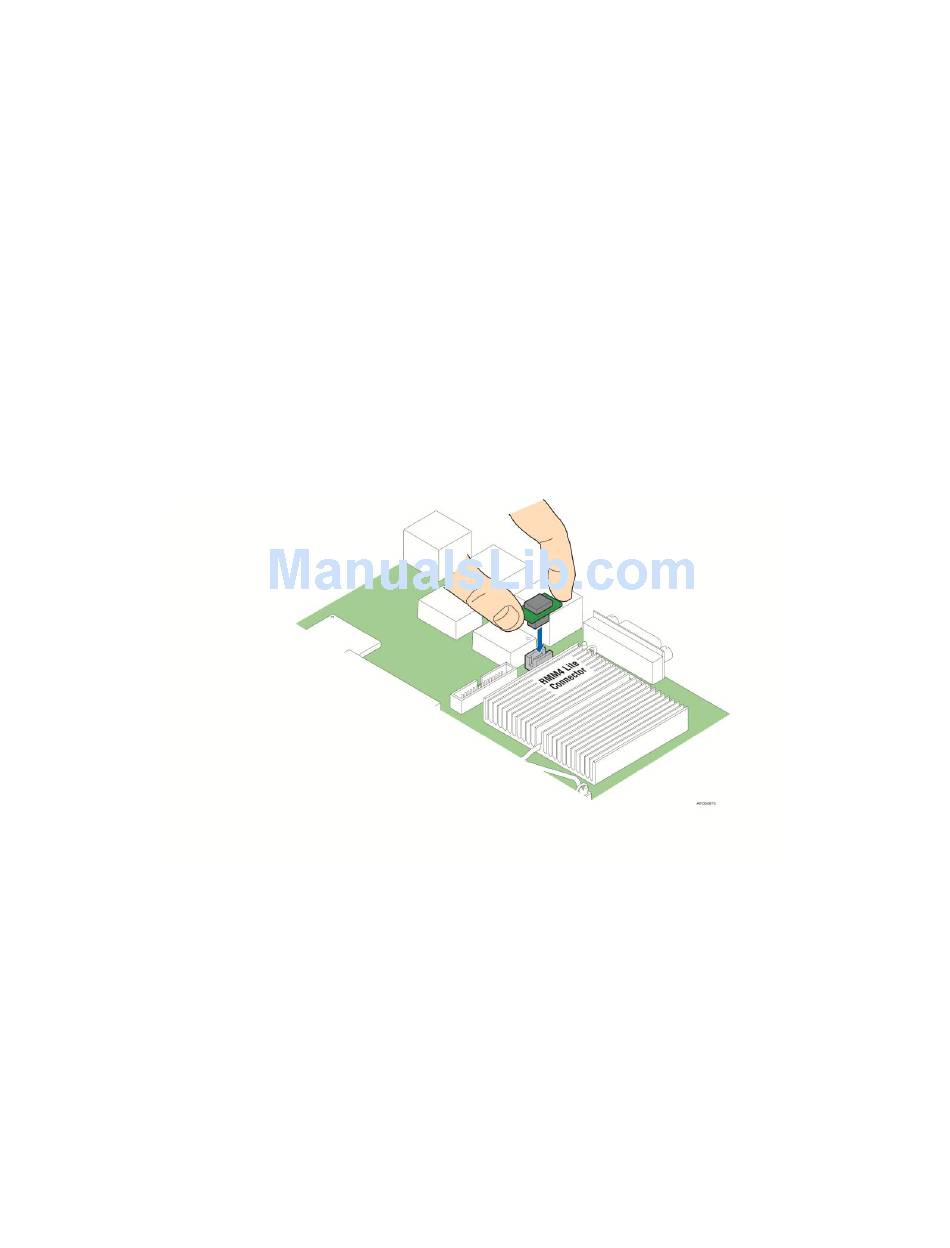

Figure 63. Installing the Intel

Hardware Installations and Upgrades
®
Remote Management
Removing the System
Removing the Power Supply
Removing the PCI Riser
Removing the Air Duct.
®
RMM4 Lite
Cover.
Assembly.
®
RMM4
