Hardware Installations and Upgrades

Installing the Lower Fan Board

1. Hold the lower fan board only by the edges. Do not push or pull on any components on the
lower fan board. Position the lower fan board in place at the front of the server system (see
letter A).
2. Secure the lower fan board with the screws as shown (see letter B).
3. Connect cables to the lower fan board; please refer to

Replacing the Front Video and USB Module

Before removing or installing the front video and USB module, please make sure following steps are
performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the power supply modules. For instructions, see
4. Remove the PCI riser assemblies. For instructions, see
5. Remove the air duct. For instructions, see
52

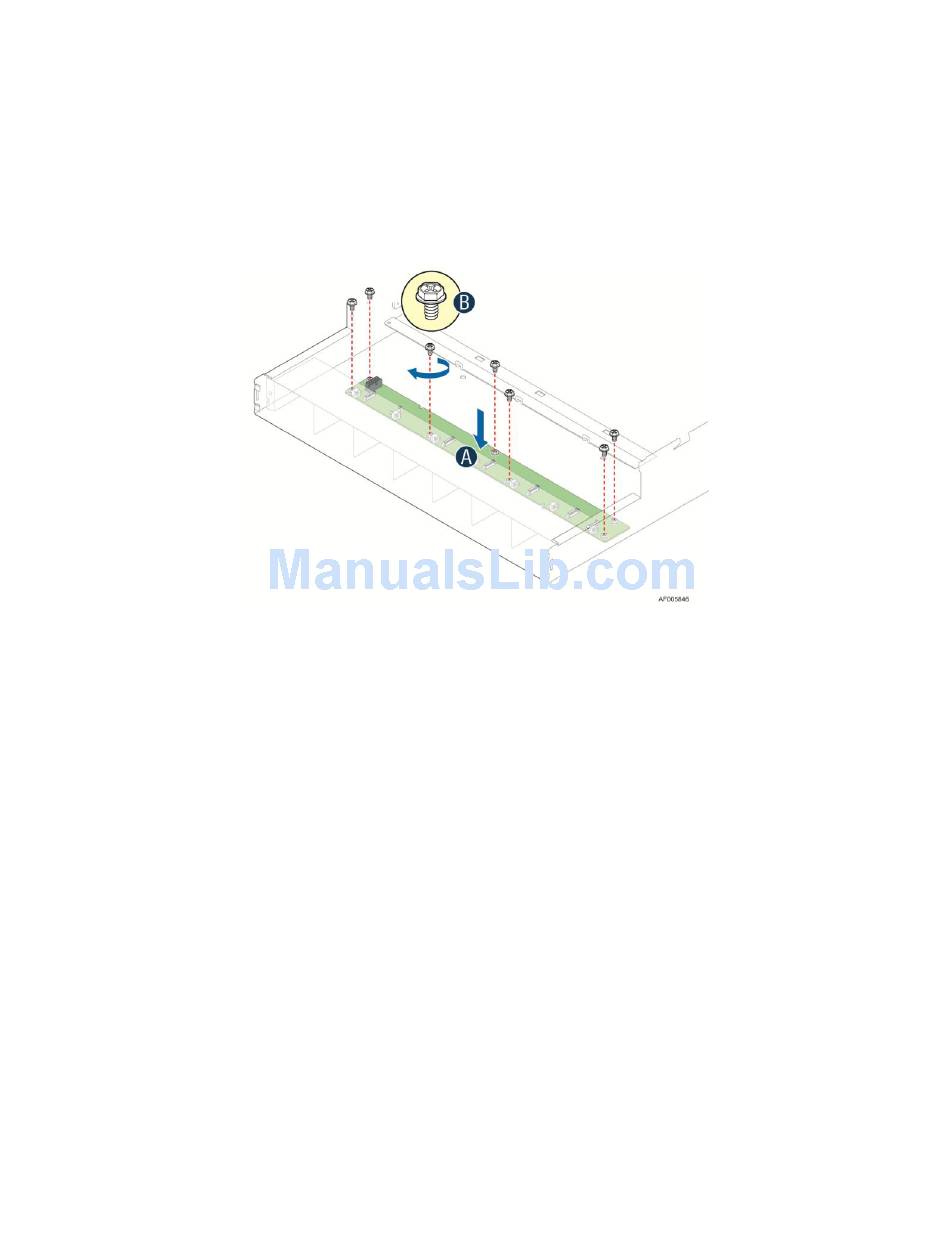

Figure 77. Installing the Lower Fan Board

Removing the System
Removing the Air
Cable Routing.
Cover.
Removing the Power Supply
Removing the PCI Riser
Duct.
®
Intel Server System R2000LH2/LT2 Service Guide
Module(s).
Assembly.
