Hardware Installations and Upgrades
3. Remove the power supply modules. For instructions, see
4. Remove the PCI riser assemblies. For instructions, see
5. Remove the air duct. For instructions, see
6. Remove the processor heatsink(s). For instructions, see

Installing the Processor

1. Remove the cover as shown. Save the protective cover.
2. Open the Socket Lever. Push down the lever handle on the OPEN first side and away from the
socket to release it (see letter A). Repeat the steps to release the lever on the other side (see
letter B).
3. Open the Load Plate. Press the locking lever slightly to raise the load plate (see letter A). Open
the load plate all the way (see letter B).
4. Install the Processor. Take the processor out of the box and remove the protective shipping
cover (see letter A). Orient the processor with the socket so that the processor cutouts match the
four orientation posts on the socket (see letter B). Note location of gold key at corner of
processor (see letter C).
30
Removing the Air

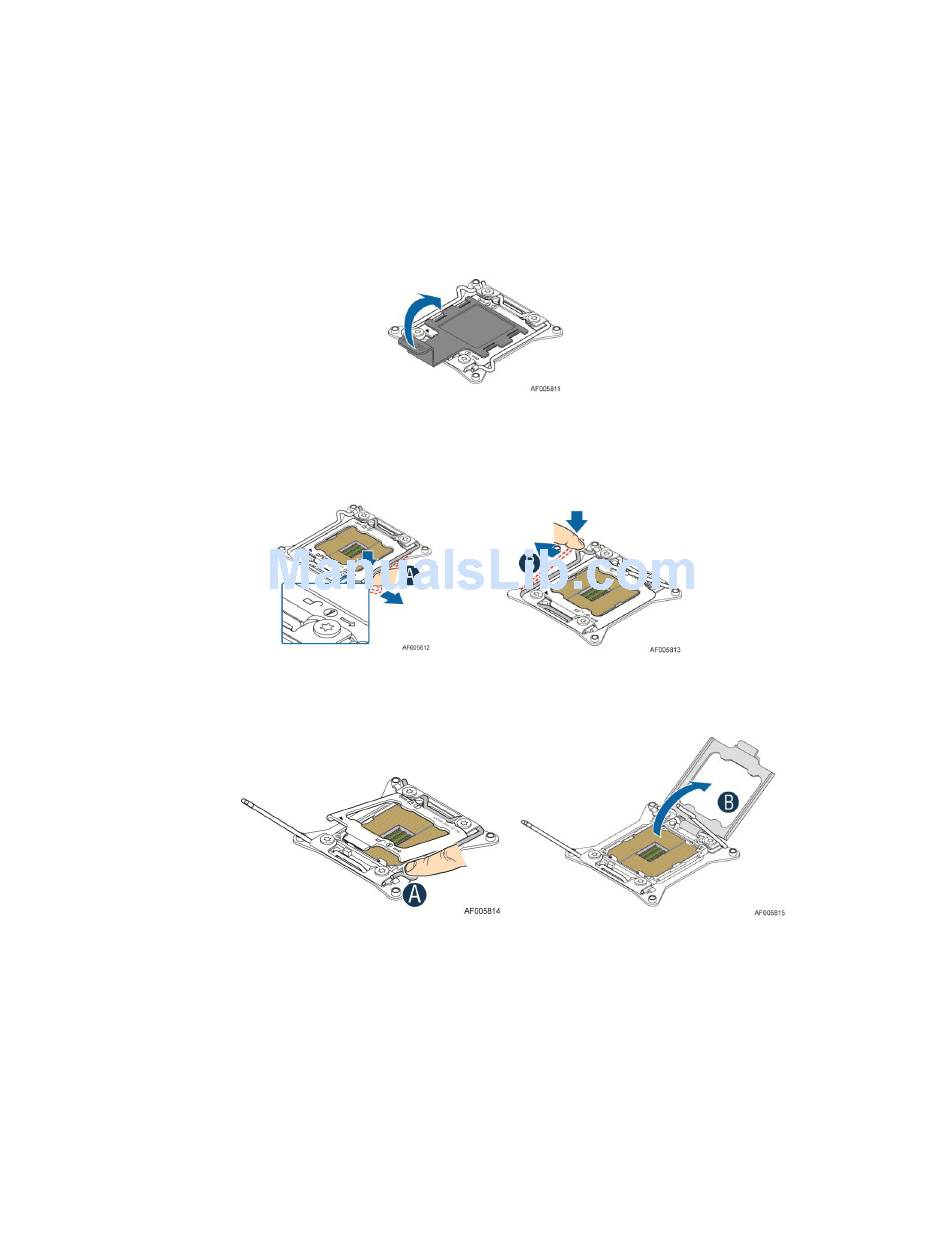

Figure 41. Installing Processor – Remove the Cover
Figure 42. Installing Processor – Open the Socket Lever
Figure 43. Installing Processor – Open the Load Plate
Removing the Power Supply
Removing the PCI Riser
Duct.
Removing Processor Heatsink(s).
®
Intel Server System R2000LH2/LT2 Service Guide
Module(s).
Assembly.
