Removing And Installing The Air Duct; Figure 36. Removing A Full-Length Pci Add-In Card - Intel R2000LH2 Service Manual

Hardware Installations and Upgrades
Removing a Full-Length PCI Add-in Card
1. Remove the screw as shown (see letter A).
2. Remove the PCI add-in card from the riser card connector (see letter B).
3. Remove the screw and the bracket for full-length PCI add-in card as shown (see letter C)
4. Install the screw as shown (see letter D)
Note: Make sure that all empty add-in card slots have filler panels installed.

Removing and Installing the Air Duct

Always operate your server system with the air duct in place. The air duct is required for proper airflow
within the server system.
Before removing or installing the air duct, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the PCI riser assemblies. For instructions, see
4. Remove the power supply modules. For instructions, see
26

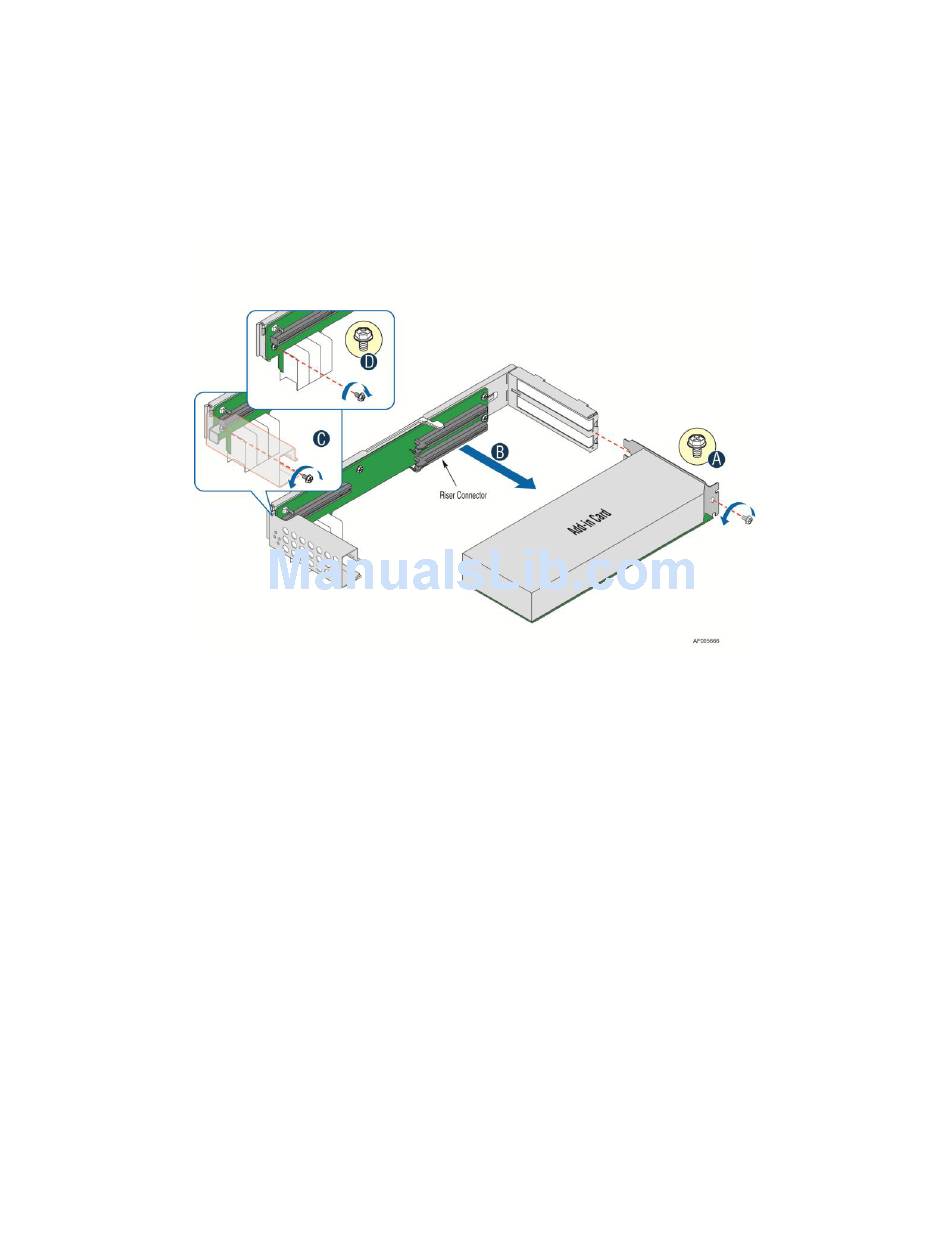

Figure 36. Removing a Full-Length PCI Add-In Card

Removing the System Cover.
Removing the PCI Riser
Removing the Power Supply
®
Intel Server System R2000LH2/LT2 Service Guide
Assembly.
Module(s).
