Peripheral Devices

®
The Intel Server System R2000LH2/LT2 provides locations and hardware for installing hard
drives, CD-ROM drive, or DVD-ROM drive. The following figure shows the available options:

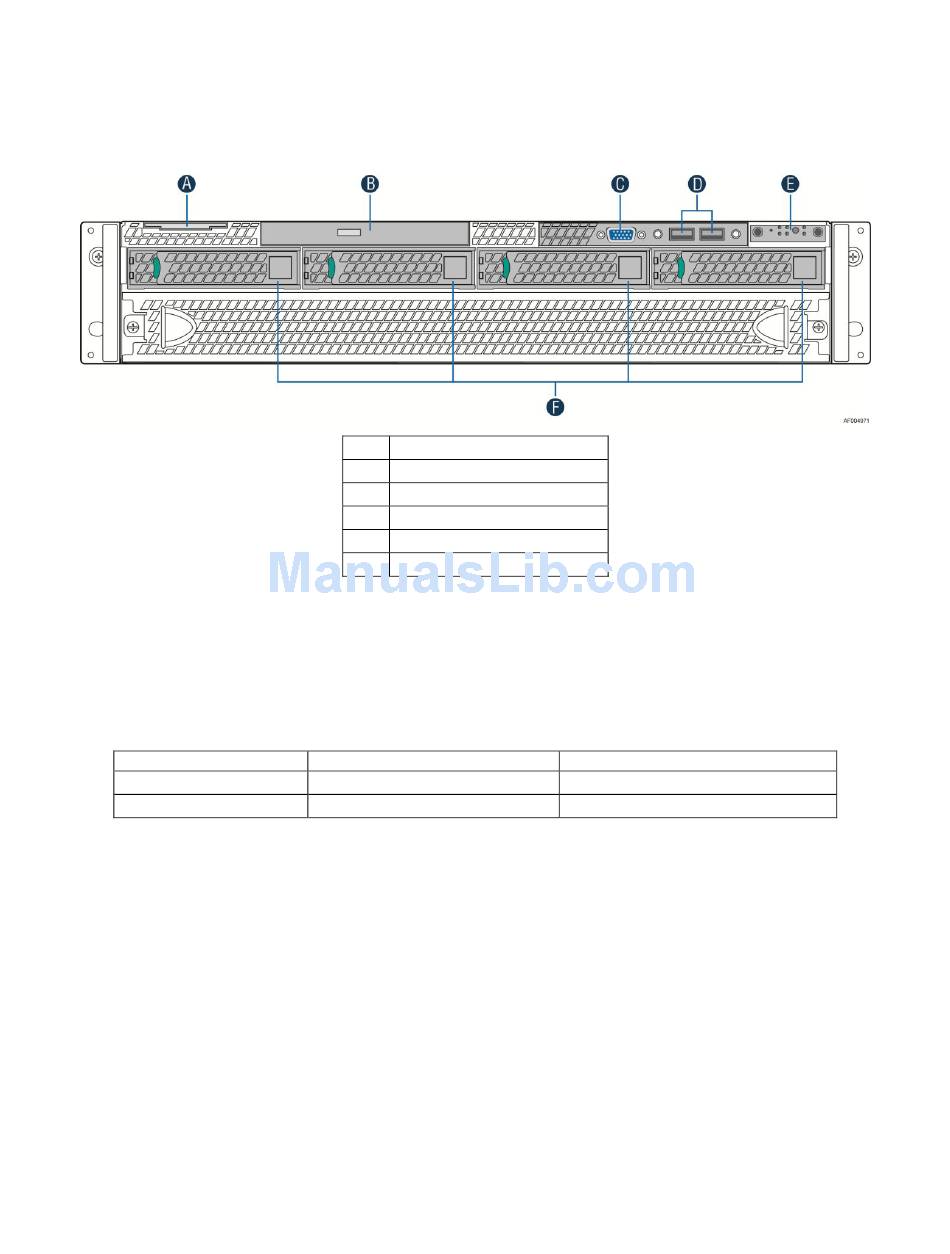

Figure 9. Optional Peripherals (4x3.5-inch hard drive bays as shown)

Hard Disk Drive Carriers
®
The Intel Server System R2000LH2/LT2 ships with either 3.5" or 2.5" hard disk drive carrier,
and with different maximum number of hard disk drives; see the table below for details:
®
Intel Server System
R2304LH2/LT2
R2208LH2/LT2
Note: SAS drives are only supported when proper Intel
RAID Module is installed.
For instructions on installing hard drives, see
Note: Drives can consume up to 17 watts of power each. Drives must be specified to run at a maximum
ambient temperature of 45°C.
®
Note: The Intel Server System R2000LH2/LT2 does not support all SAS or Serial ATA (SATA) hard
drives. For a web link to a list of supported hard drives, see
®
Intel Server System R2000LH2/LT2 Service Guide
A Asset Tag
B Slimline Optical Drive Bay
C Video Port
D USB Ports
E Front Control Panel
F Hard Disk Drive Bays

Table 6. Hard Disk Drive Options

Supported Hard Drive Type
3.5" or 2.5"
2.5"
®
Installing and Removing Hard
Server System Features
Maximum Hard Drive Number
4
8
RAID C600 Upgrade Key or Intel
Additional Information and
®
Integrated
Drive.
Software.
9
