Removing and Installing the PCI Riser Assembly

Before removing or installing the PCI riser assembly, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see

Removing the PCI Riser Assembly

1. Disconnect any cables attached to any add-in cards, pull up the release lever (see letter A).
2. Grasp the riser assembly with both hands and pull up to remove from system (see letter B).
Warning: Place the riser assembly upside down or sideway to avoid damage to the riser card
connector.
Do one of the following:
— If you need to add or replace a PCI add-in card, see
— If you removed the PCI riser assembly for another procedure, continue with that procedure.

Installing the PCI Riser Assembly

1. Position the riser card connector edge over the server board riser socket (see letter A).
2. Press down the release lever to install the riser assembly into the riser socket (see letter B).
3. Push on the board edge above the connector to ensure the connector is seated.
®
Intel Server System R2000LH2/LT2 Service Guide
Removing the System

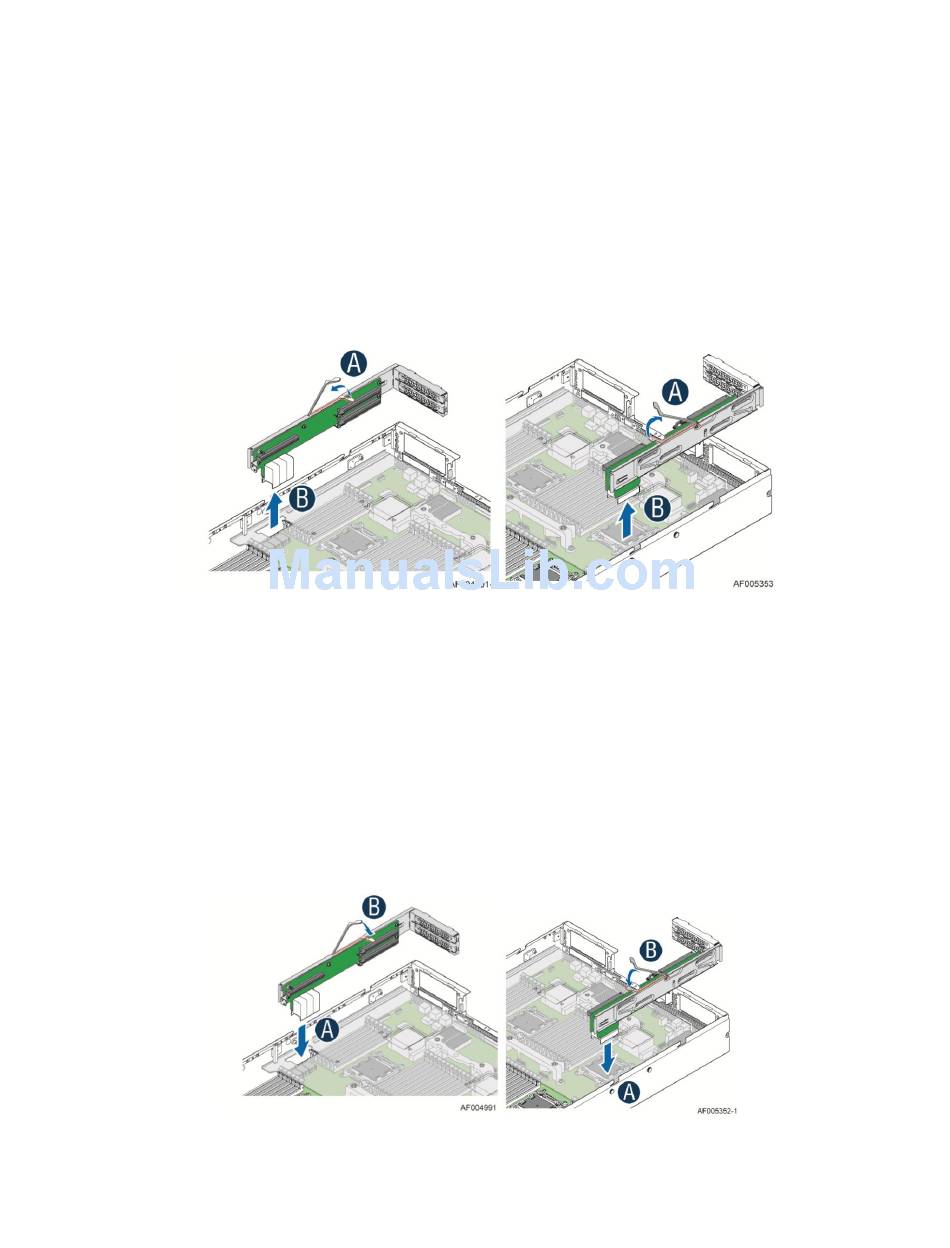

Figure 31. Removing the PCI Riser Assembly

Figure 32. Installing the PCI Riser Assembly

Hardware Installations and Upgrades
Cover.
Installing and Removing a PCI Add-in Card.
23
