1. Using a #2 Phillips* screwdriver, start with screw 1 and engage screw threads by giving it two
rotations and stop (see letter C). (Do not fully tighten.)
2. Proceed to screw 2 and engage screw threads by giving it two rotations and stop (see letter D).
Similarly, engage screws 3 and 4.
3. Repeat steps C and D by giving each screw two rotations each time until each screw is lightly
tightened up to a maximum of eight inch-lbs torque (see letter E).

Installing or Replacing the Processor

Caution: Processor must be appropriate: You may damage the server board if you install a processor
that is inappropriate for your server. For a web link to the list of compatible processor(s), see
"Additional Information and Software" on page 4.
Caution: ESD and handling processors: Reduce the risk of electrostatic discharge (ESD) damage to the
processor by doing the following:

Touch the metal chassis before touching the processor or server board. Keep part of your body
in contact with the metal chassis to dissipate the static charge while handling the
processor.

Avoid moving around unnecessarily.
Caution: Protective socket cover needs to be removed for proper cooling of the processor; failure to
remove the cover could result in damage to the system.
Note: To avoid unexpected damage to the processor socket(s), Intel strongly recommends using
Processor Insertion/ Removal Tool (IPN: G21819-003) to install or replace the processor(s).
Before removing or replacing the processor, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
®
Intel Server System R2000LH2/LT2 Service Guide

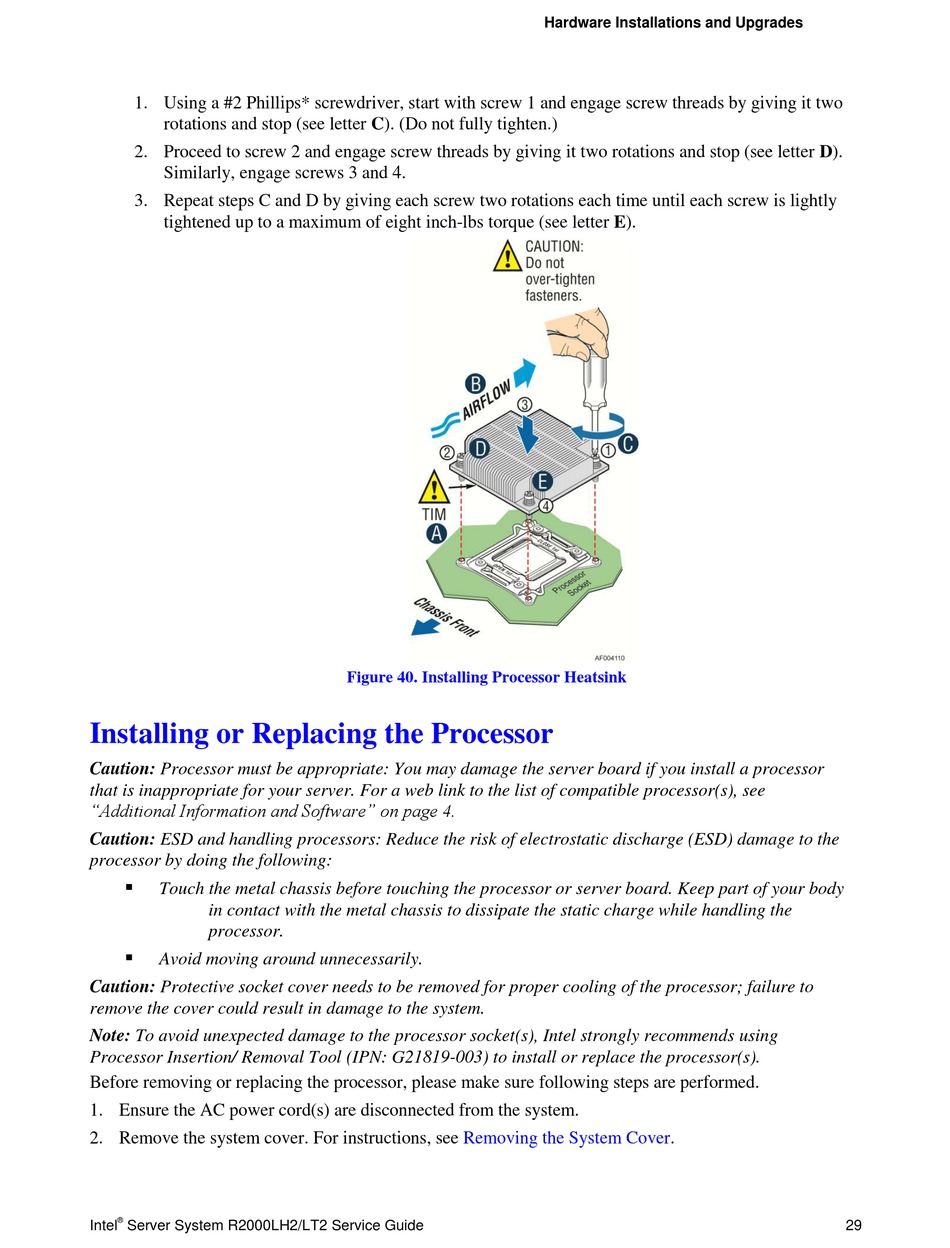

Figure 40. Installing Processor Heatsink

Removing the System
Hardware Installations and Upgrades
Cover.
