Installing And Removing The Intel Raid Smart Battery; Installing The Intel Raid Smart Battery; Figure 68. Installing The Intel - Intel R2000LH2 Service Manual

Installing and Removing the Intel
Before installing or removing the Intel
performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
Installing the Intel
1. Connect the cable between the BBU and the RAID card. For details, see Intel
Battery User's Guide.
2. Position the battery against chassis (see letter A).
3. Align the tabs on the plastic battery holder with the mounting holes in the chassis and slide in
the plastic battery holder until the tabs engage with the mounting holes (see letter B).
®
Intel Server System R2000LH2/LT2 Service Guide
®
RAID Smart Battery, please make sure following steps are
®
RAID Smart Battery

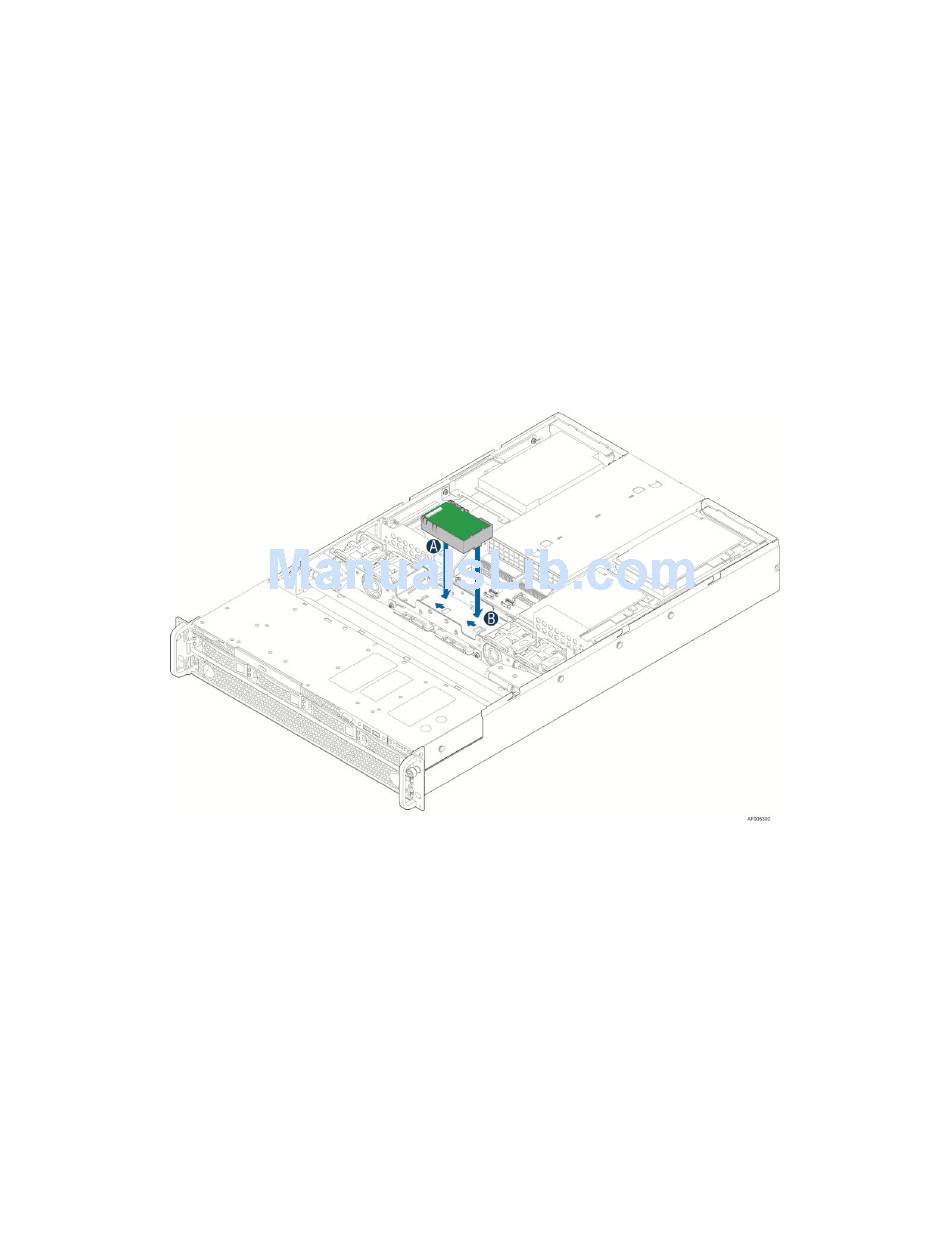

Figure 68. Installing the Intel

Hardware Installations and Upgrades
®
RAID Smart Battery
Removing the System Cover.
®
RAID Smart Battery
®
RAID Smart
45
