Note: The underside of the processor has components that may damage the socket pins if installed
improperly. Processor must align correctly with the socket opening before installation. DO NOT
DROP processor into socket!
5. Close the Load Plate. Carefully lower the load plate over the processor.
6. Latch the Locking Lever. Push down on the locking lever on the CLOSE 1st side (see letter A).
Slide the tip of the lever under the notch in the load plate (see letter B). Make sure the load
plate tab engages under the socket lever when fully closed. Repeat the steps to latch the locking
lever on the other side (see letter C). Latch the levers in the order as shown.

Installing and Removing the Memory

Before installing or removing the memory, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the power supply modules. For instructions, see
4. Remove the PCI riser assemblies. For instructions, see
5. Remove the air duct. For instructions, see
®
Intel Server System R2000LH2/LT2 Service Guide

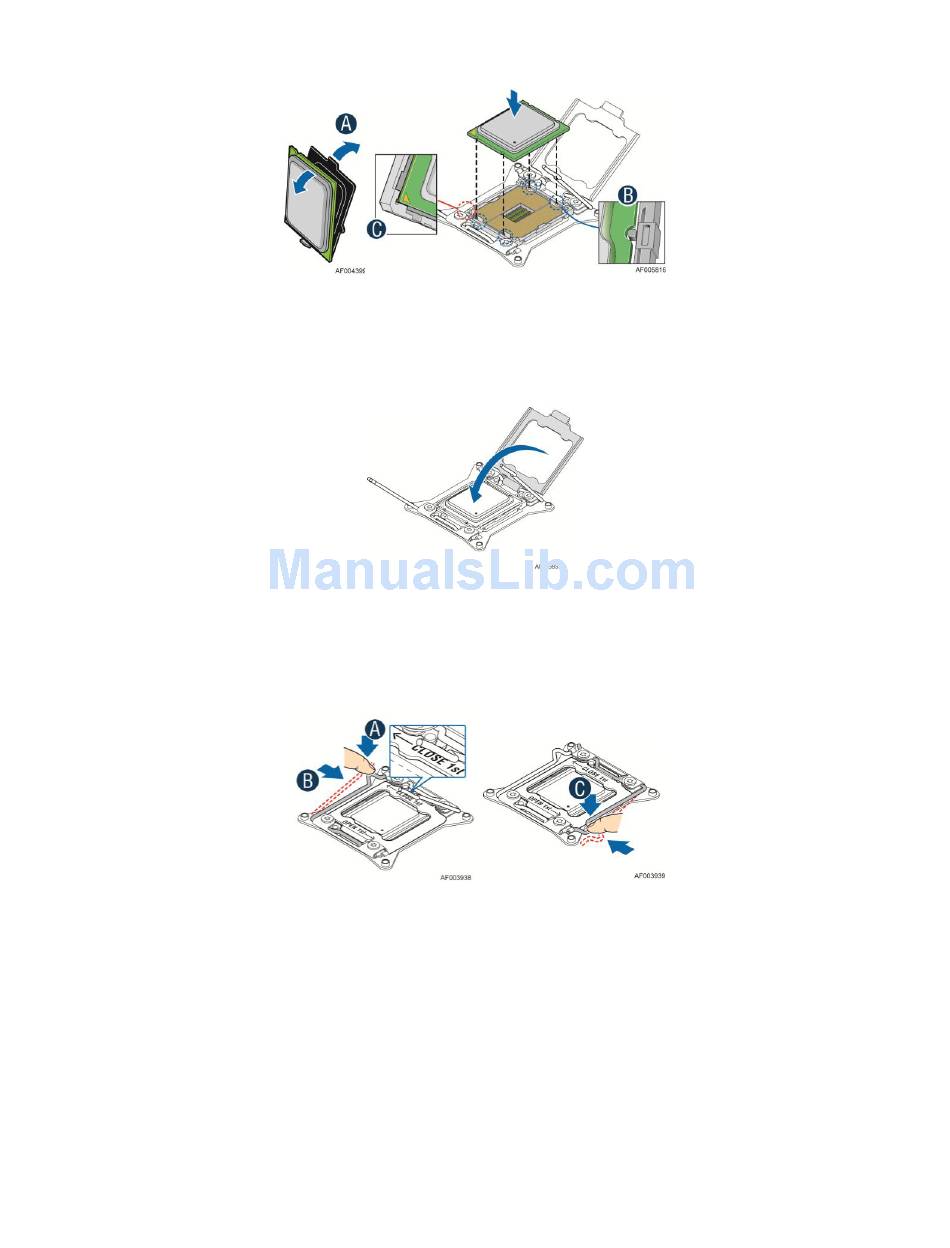

Figure 44. Installing Processor – Install the Processor
Figure 45. Installing Processor – Close the Load Plate
Figure 46. Installing Processor – Latch the Locking Lever
Hardware Installations and Upgrades
Removing the System
Removing the Power Supply
Removing the PCI Riser
Removing the Air Duct.
Cover.
Module(s).
Assembly.
31
