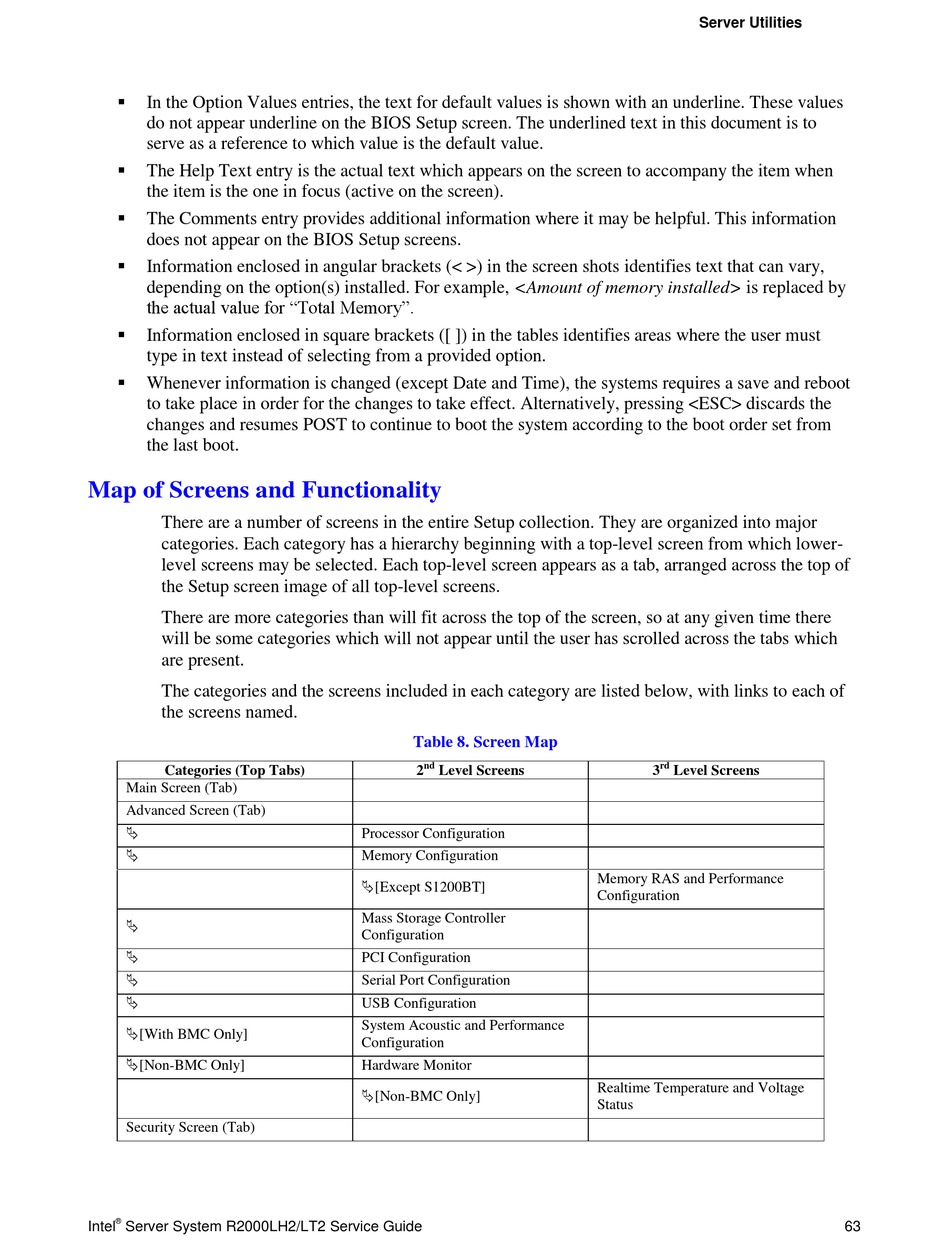

Map Of Screens And Functionality; Table 8. Screen Map - Intel R2000LH2 Service Manual


In the Option Values entries, the text for default values is shown with an underline. These values
do not appear underline on the BIOS Setup screen. The underlined text in this document is to
serve as a reference to which value is the default value.

The Help Text entry is the actual text which appears on the screen to accompany the item when
the item is the one in focus (active on the screen).

The Comments entry provides additional information where it may be helpful. This information
does not appear on the BIOS Setup screens.

Information enclosed in angular brackets (< >) in the screen shots identifies text that can vary,
depending on the option(s) installed. For example, <Amount of memory installed> is replaced by
the actual value for "Total Memory".

Information enclosed in square brackets ([ ]) in the tables identifies areas where the user must
type in text instead of selecting from a provided option.

Whenever information is changed (except Date and Time), the systems requires a save and reboot
to take place in order for the changes to take effect. Alternatively, pressing <ESC> discards the
changes and resumes POST to continue to boot the system according to the boot order set from
the last boot.

Map of Screens and Functionality

There are a number of screens in the entire Setup collection. They are organized into major
categories. Each category has a hierarchy beginning with a top-level screen from which lower-
level screens may be selected. Each top-level screen appears as a tab, arranged across the top of
the Setup screen image of all top-level screens.
There are more categories than will fit across the top of the screen, so at any given time there
will be some categories which will not appear until the user has scrolled across the tabs which
are present.
The categories and the screens included in each category are listed below, with links to each of
the screens named.
Categories (Top Tabs)
Main Screen (Tab)
Advanced Screen (Tab)






[With BMC Only]
[Non-BMC Only]
Security Screen (Tab)
®
Intel Server System R2000LH2/LT2 Service Guide

Table 8. Screen Map

nd
2 Level Screens
Processor Configuration
Memory Configuration
[Except S1200BT]
Mass Storage Controller
Configuration
PCI Configuration
Serial Port Configuration
USB Configuration
System Acoustic and Performance
Configuration
Hardware Monitor
[Non-BMC Only]
Server Utilities
rd
3 Level Screens
Memory RAS and Performance
Configuration
Realtime Temperature and Voltage
Status
