Hardware Installations and Upgrades

Installing the LCP Module

1. Remove the front video and USB module. For instructions, see Removing the Front Video and
USB Module.
2. Secure the front USB header to the module with two screws as shown (see letter A).
3. Insert the LCP module into chassis (see letter B).
4. Secure the LCP module to chassis with two screws (see letter C).
5. Install the LCP and USB cables to the server board as shown (see letter D).

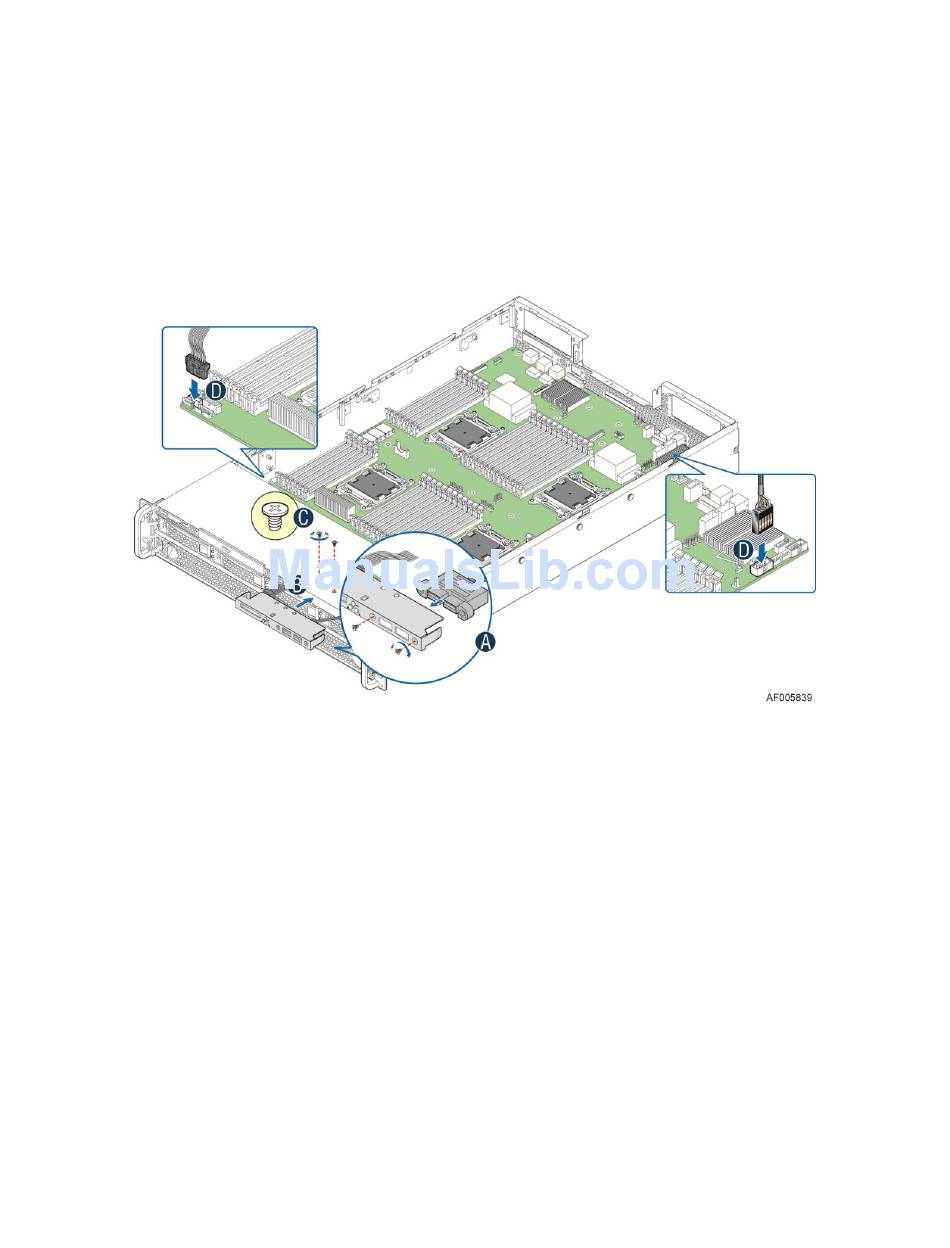

Figure 80. Installing the LCP Module

®
Intel Server System R2000LH2/LT2 Service Guide 55
