Server Board Components

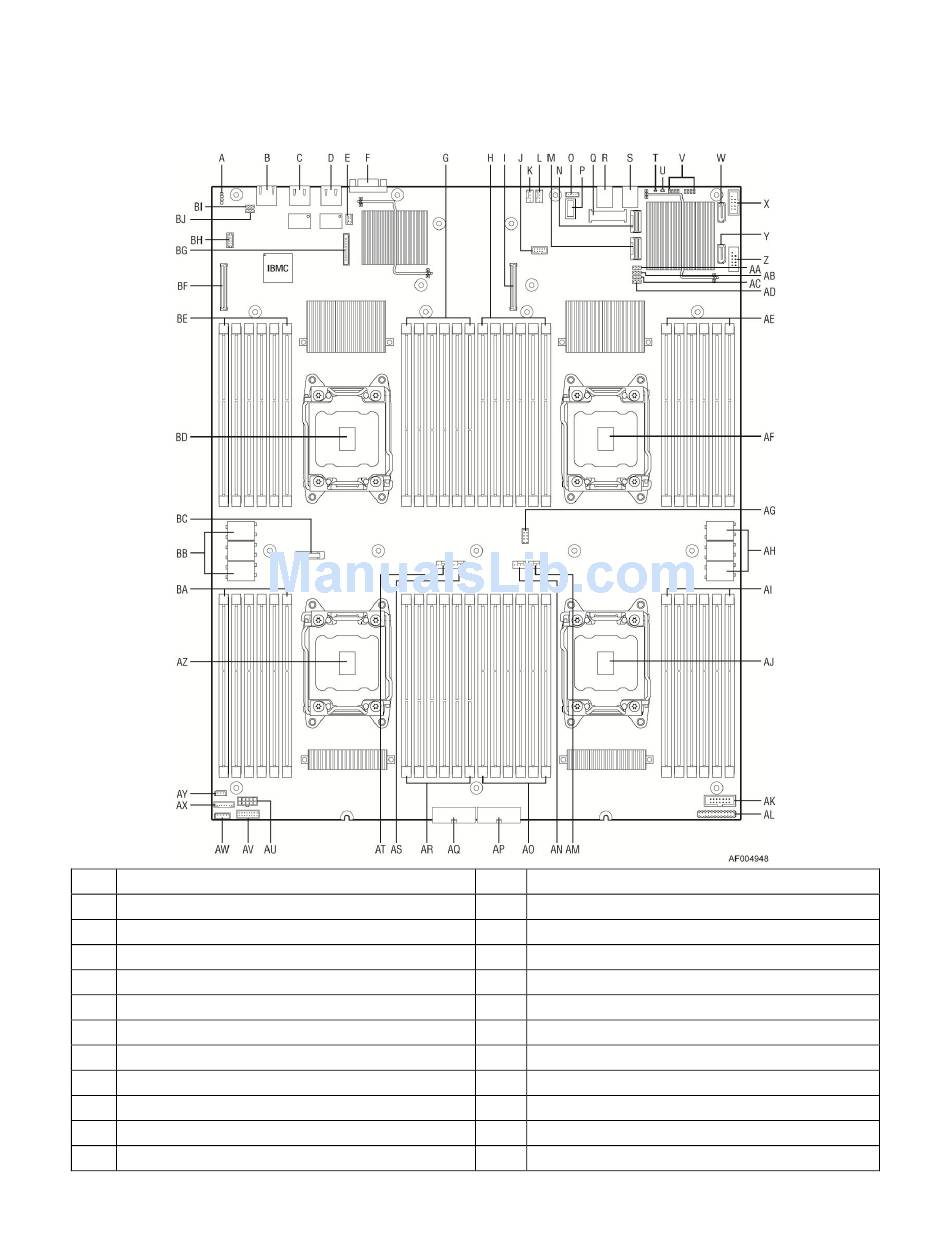

This section helps you identify the components and connectors on the server board.
Description
A Manufacturing Mode jumper
Serial 'A' Port (RJ45)
B
C NIC 2
D NIC 1
E (Option) RMM4 Lite connector
F Video connector
CPU #2 DIMM slots – Memory Banks G and H
G
CPU #1 DIMM slots – Memory Banks A and B
H
I (Option) I/O Module connector
J (Option) eUSB Solid State Device (SSD) connector
K Rear System Fan #2 connector
6
Description
AH Riser Card slot #1
CPU #4 DIMM slots – Memory Banks N and P
AI
AJ CPU #4 socket
AK Front Panel Video connector
AL Front Panel header (SSI compatible)
AM CPU #1 Fan connector
AN CPU #4 Fan connector
CPU #4 DIMM slots – Memory Banks R and T
AO
AP Main Power Slot #2
AQ Main Power Slot #1
CPU #3 DIMM slots – Memory Banks J and K
AR
®
