For System With 8 X 2.5" Hot Swap Hard Drive Bay; Figure 16. Cable Routing - 8 X 2.5" Hot Swap Hdd - Intel R2000LH2 Service Manual

For system with 8 x 2.5" hot swap hard drive bay

Note:
1. To activate the port SCU1 (4-7) on the server board, a proper Intel
must be installed. For instructions, see Intel
2. A second SSD is supported when the optical drive is NOT in use.
®
Intel Server System R2000LH2/LT2 Service Guide
®
RAID C600 Upgrade Key Installation Guide.

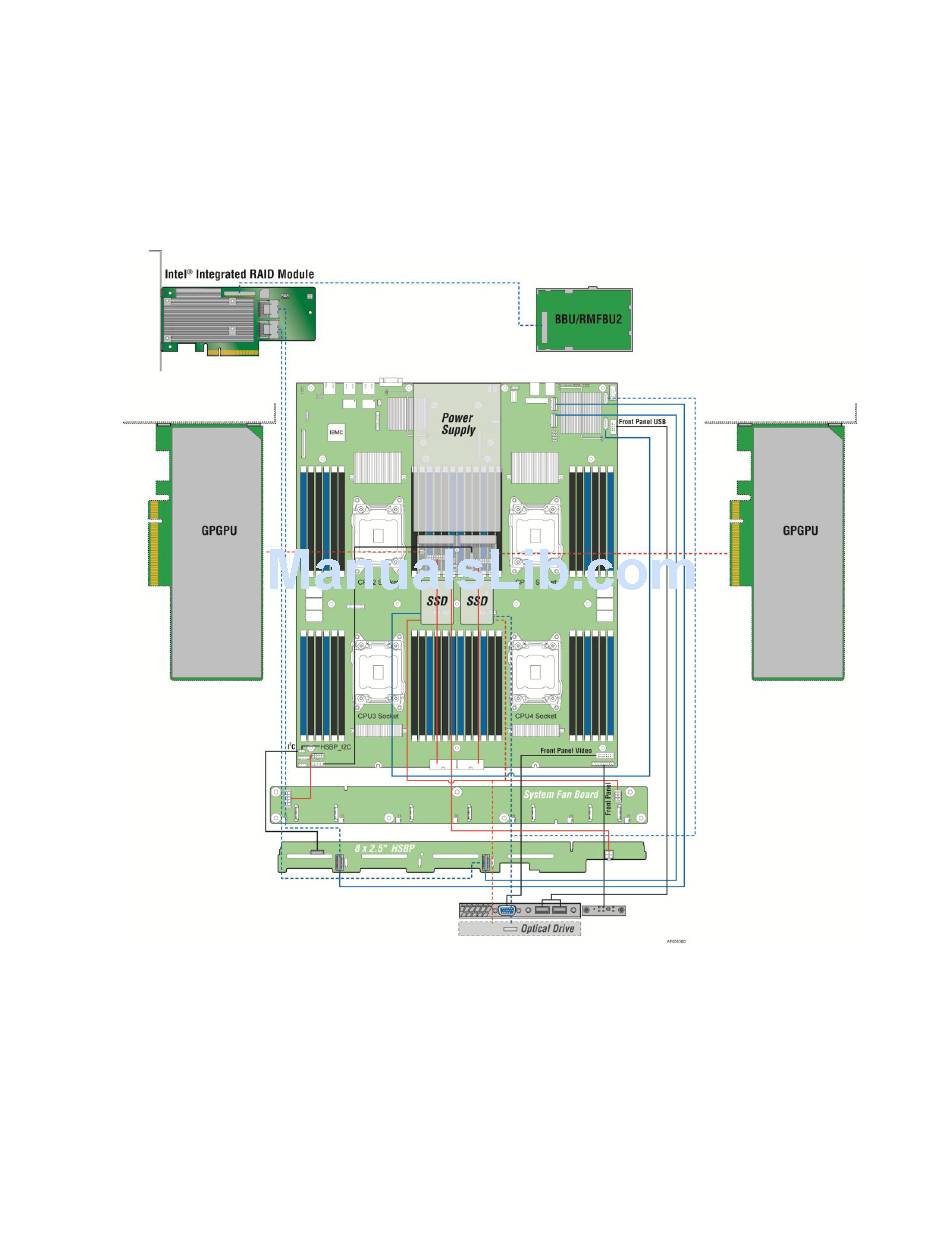

Figure 16. Cable Routing – 8 x 2.5" Hot Swap HDD
Hardware Installations and Upgrades
®
RAID C600 Upgrade Key
15
