Removing the Server Board
1. Disconnect all cables from the server board.
2. Remove the thirteen screws from the server board (see letter A).
3. Lift the server board from the server system (see letter B).
Installing the Server Board
1. Place the server board into the server system (see letter A).
2. Secure the server board with thirteen screws (see letter B).
3. Connect all power cables to the server board.
®
Intel
Server System R2000LH2/LT2 Service Guide

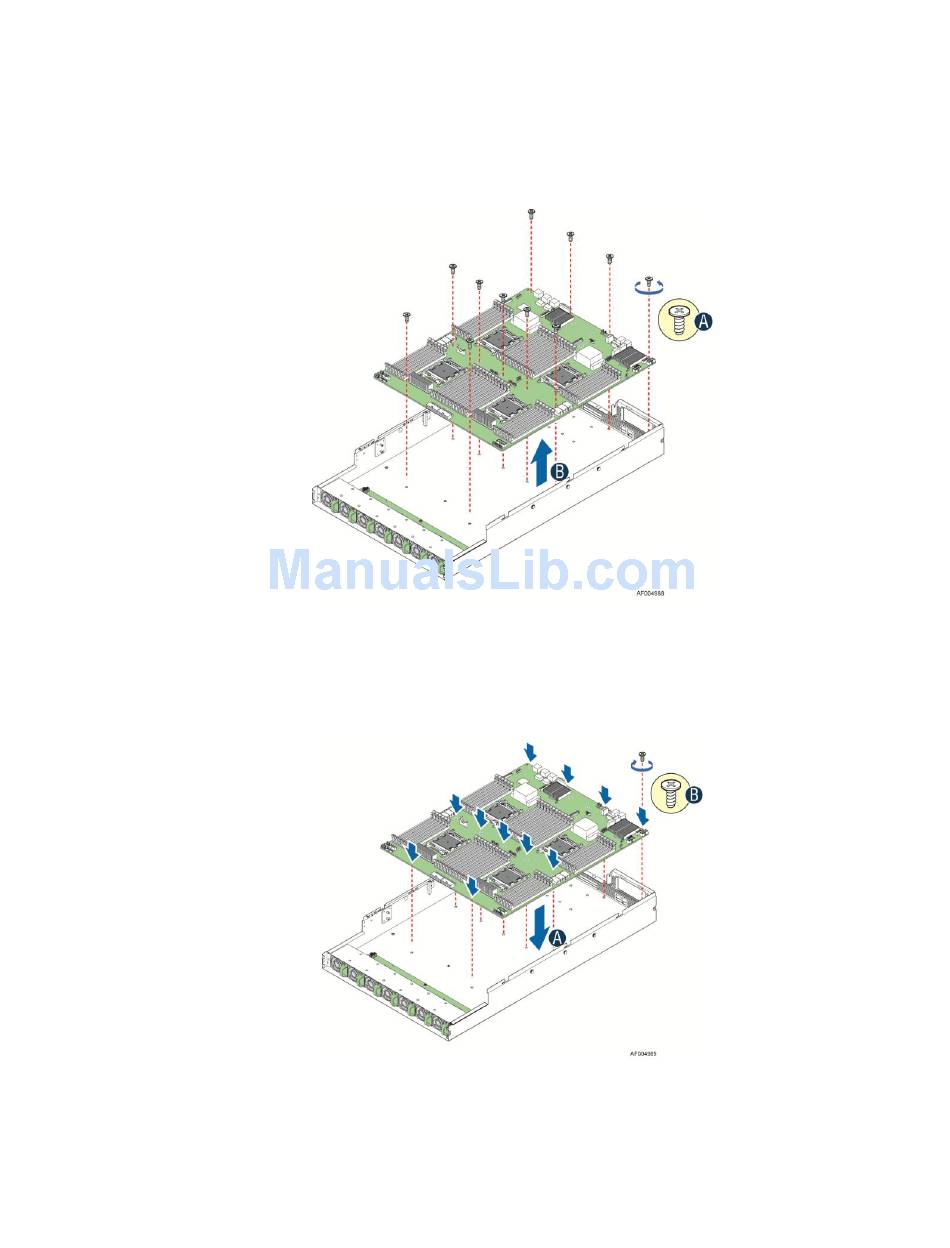

Figure 70. Removing the Server Board
Figure 71. Installing the Server Board
