Installing The Front Video And Usb Module; Installing And Removing The Lcp Module; Figure 79. Installing The Front Video And Usb Module - Intel R2000LH2 Service Manual

Hardware Installations and Upgrades

Installing the Front Video and USB Module

1. Secure the front USB header to the module with two screws as shown (see letter A).
2. Insert the front video and USB module into chassis (see letter B).
3. Secure the front video and USB module to chassis with two screws (see letter C).
4. Install the video and USB cables to the server board as shown (see letter D).

Installing and Removing the LCP Module

Before installing or removing the LCP module, please make sure following steps are performed.
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the system cover. For instructions, see
3. Remove the power supply modules. For instructions, see
4. Remove the PCI riser assemblies. For instructions, see
5. Remove the air duct. For instructions, see
54

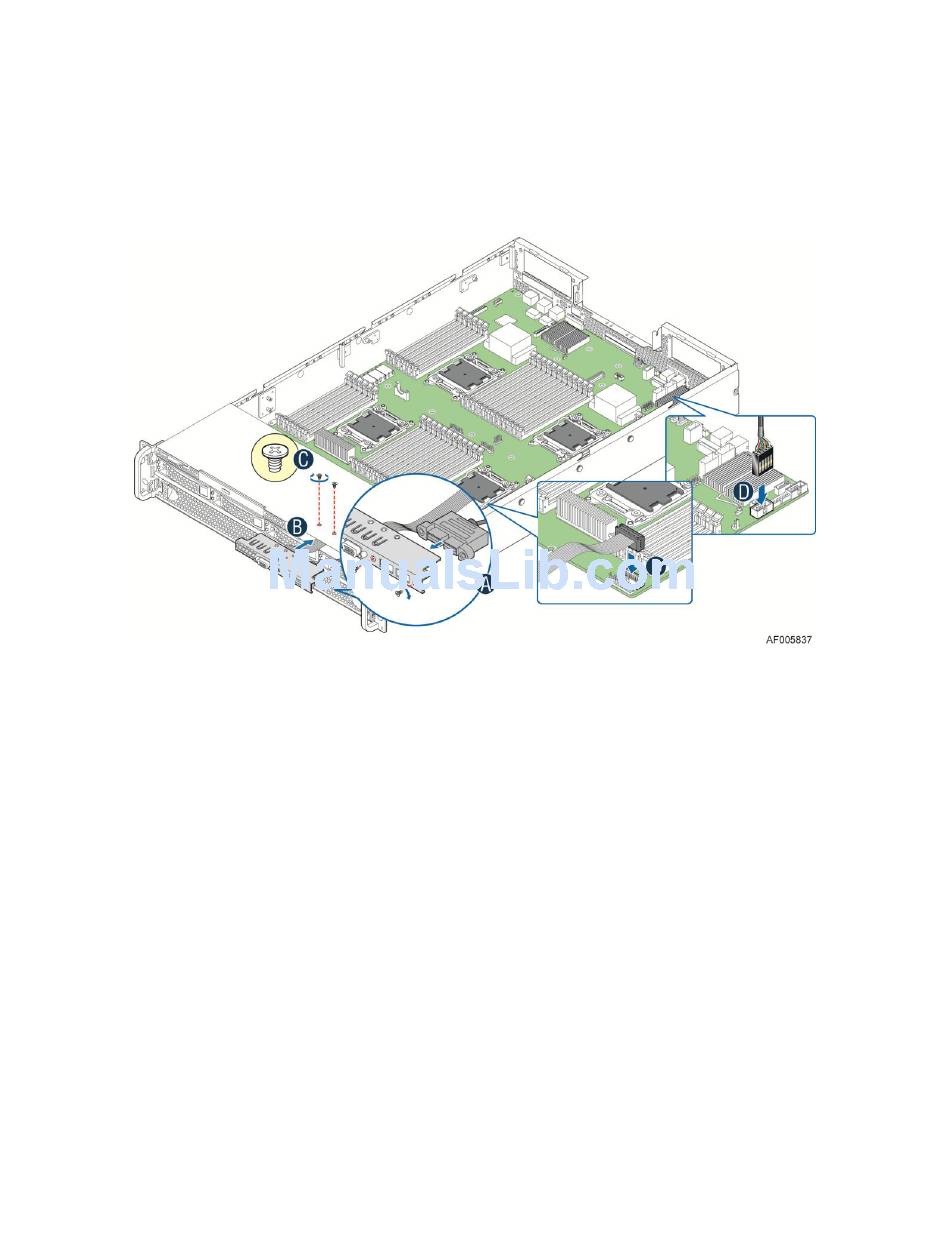

Figure 79. Installing the front video and USB Module
