Hardware Installations and Upgrades

Removing and Installing the Front End Module

Before removing or installing the PCI riser assembly, please make sure following steps are performed:
1. Ensure the AC power cord(s) are disconnected from the system.
2. Remove the rack handles. For instructions, see
3. Remove the system cover. For instructions, see

Removing the Front End Module

1. Disconnect any cables attached to the front end module.
2. Removing the six screws securing the front end module from the chassis (see letter A).
3. Slide the front end module in forward and remove it from the chassis (see letter B).

Installing the Front End Module

1. Push the front end module into place (see letter A).
2. Secure the front end module with six screws (see letter B).
3. Connect any required cables, please refer to Cable Routing.
22
Removing the Rack
Removing the System

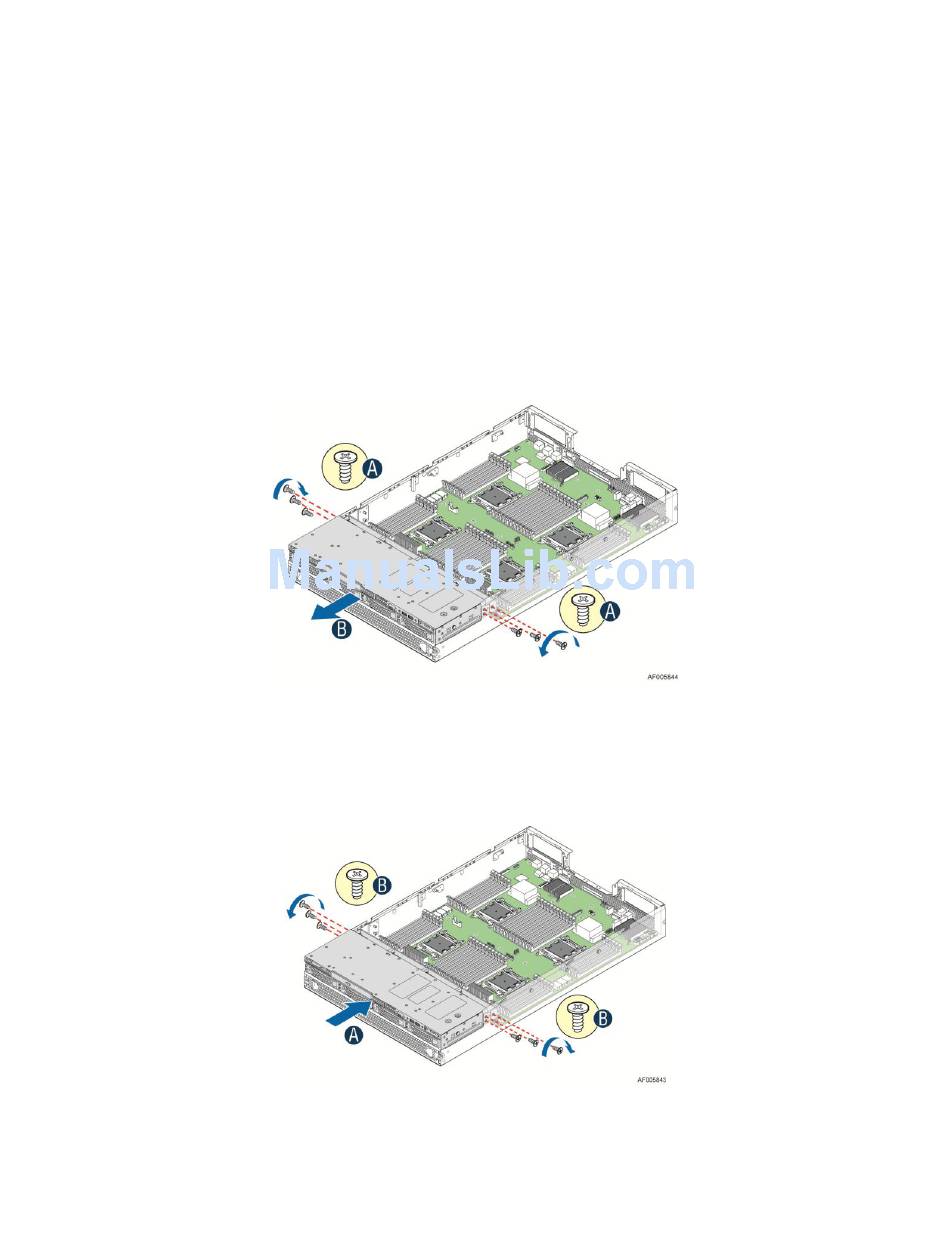

Figure 29. Removing the Front End Module

Figure 30. Installing the Front End Module

Handles.
Cover.
®
Intel Server System R2000LH2/LT2 Service Guide
