Removing and Installing the Power Supply Module(s)

Removing the Power Supply Module(s)

1. Push the green latch in the direction shown while pulling out of the system by the handle.
2. Repeat step 1 to remove the second power supply module.

Installing a Power Supply Module(s)

1. Insert the power supply module into the power supply cage and push all the way until it clicks
into place.
2. Repeat step 1 to install the second power supply module.

Removing and Installing the System Cover

Removing the System Cover

The server system must be operated with the system cover in place to ensure proper cooling.
You will need to remove the top cover to add or replace components inside of the server.
Before removing the top cover, power down the server and unplug all peripheral devices and
the power cable(s).
20

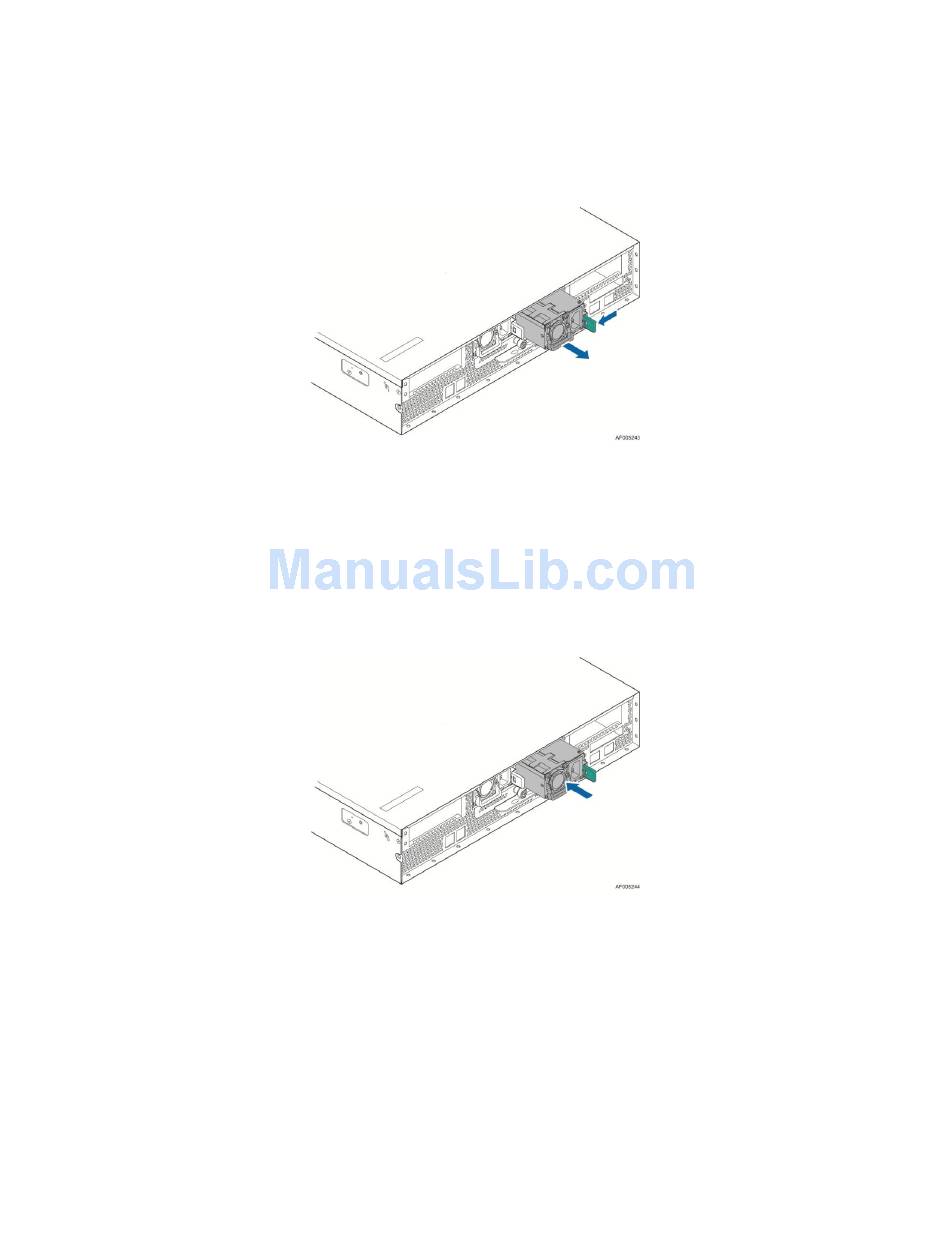

Figure 25. Removing the Power Supply Module

Figure 26. Installing the Power Supply Module

®
