Genie GS-2669 RT Service Manual page 84

Section 4 • Repair Procedures

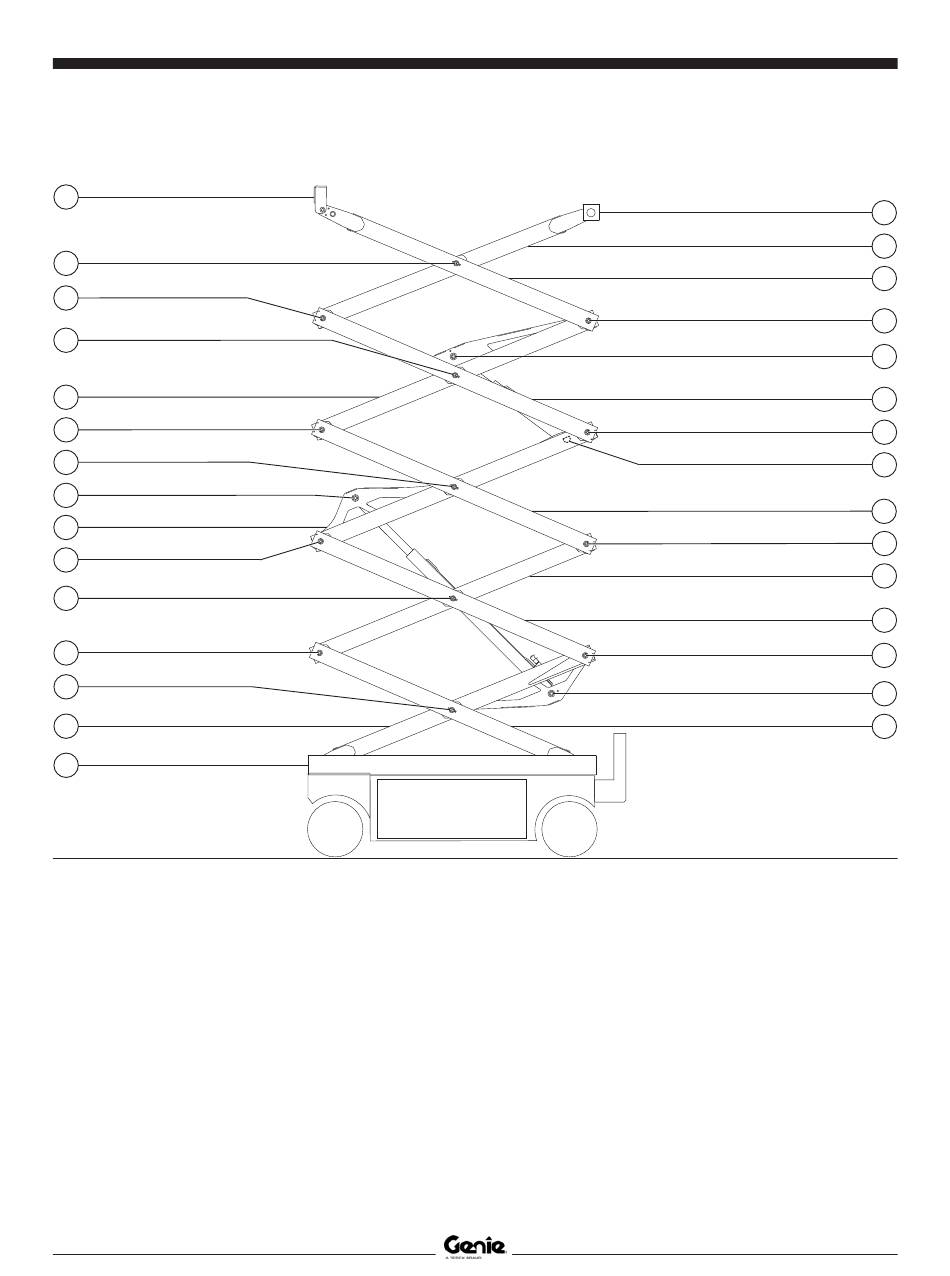

SCISSOR COMPONENTS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Steer End
1 Platform pivot
2 Number 5 center pivot pin (2 each)
3 Number 5 pivot pin (steer end)
4 Number 4 center pivot pin (2 each)
5 Number 4 inner arm
6 Number 4 pivot pin (steer end)
7 Number 3 center pivot pin (2 each)
8 Lower lift cylinder rod-end pivot pin
9 Number 3 inner arm
10 Number 3 pivot pin (steer end)
11 Number 2 center pivot pin (2 each)
12 Number 2 pivot pin (steer end)
13 Number 1 center pivot pin (2 each)
14 Number 1 inner arm
4 - 14
GS-4069
GS-2669 RT • GS-3369 RT • GS-4069 RT
Non-steer End
15 Chassis pivot
16 Slider block (2 each)
17 Number 5 inner arm
18 Number 5 outer arm
19 Number 5 pivot pin (non-steer end)
20 Upper lift cylinder rod-end pivot pin
21 Number 4 outer arm
22 Number 4 pivot pin (non-steer end)
23 Upper lift cylinder barrel-end pivot pin
24 Number 3 outer arm
25 Number 3 pivot pin (non-steer end)
26 Number 2 inner arm
27 Number 2 outer arm
28 Number 2 pivot pin (non-steer end)
November 2014
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Part No. 229753
