Backlapping Brush Assembly; Angle Indicator And Magnetic Mount - Toro Greensmaster 3120 Service Manual

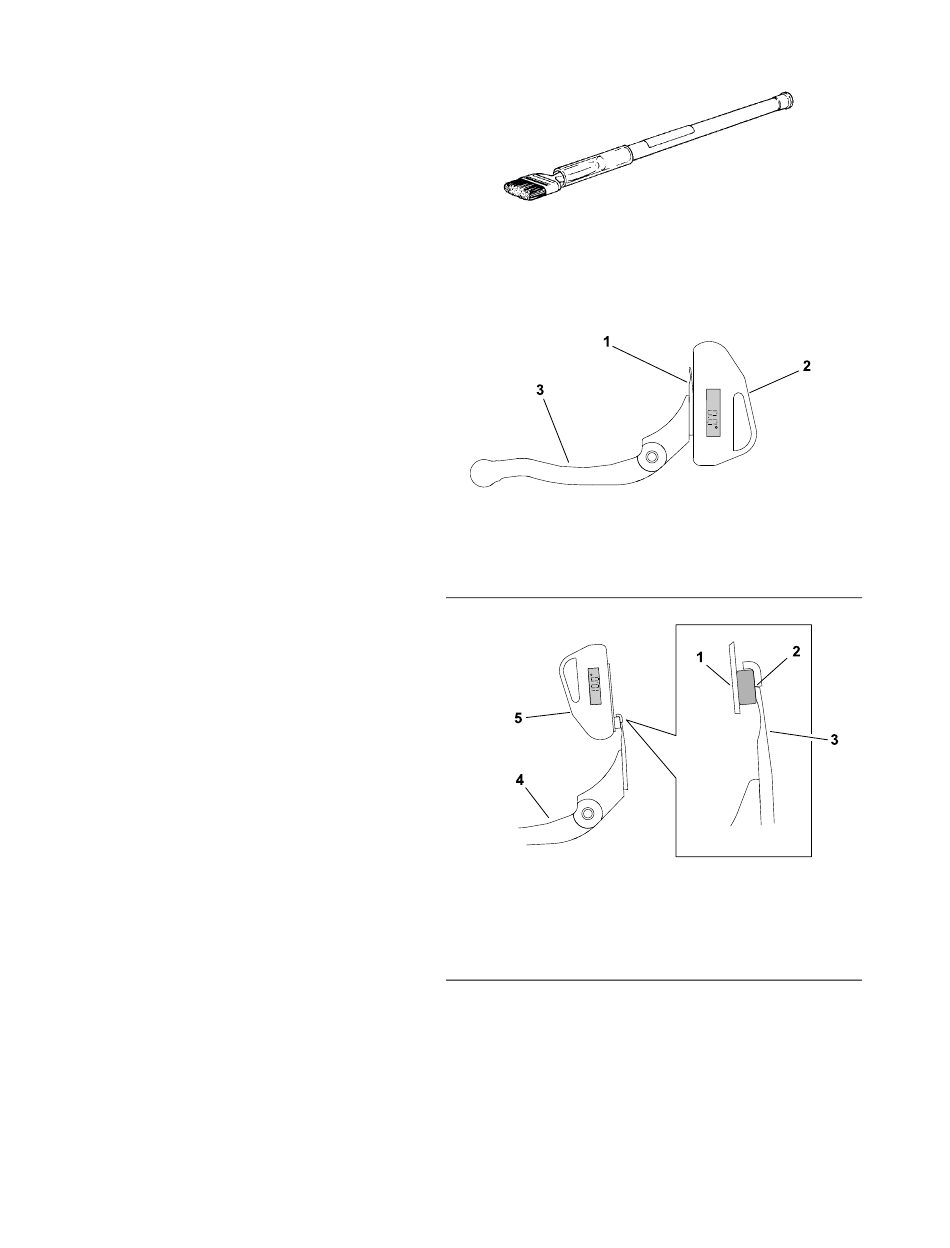

Backlapping Brush Assembly

Toro Part No. 29–9100
For applying lapping compound to cutting units while keeping
hands a safe distance from the rotating reel.
Components for the brush assembly are also available
individually.
Brush 36-4310
Handle 29-9080
Handle cap 2410-18

Angle Indicator and Magnetic Mount

Angle Indicator: Toro Part No. 131–6828
Magnetic Mount: Toro Part No. 131–6829
Because the top grind angle on bedknives is critical for edge
retention, and therefore after− cut appearance, Toro has
develop these service tools for accurately measuring the top
grind angle on all bedknives.
Since there can be variations in the mounting surface of the
bedbar, it is necessary to grind the bedknife after installing
it to the bedbar.
1. Place the angle indicator on the bottom side of the
bedknife with the digital display facing you as shown
2. Press the Alt Zero button on the angle indicator.
3. Remove the angle indicator and place the magnetic mount
on the edge of the bedknife so the face of the magnet is flat
against the top angle of the bedknife.
4. Place the angle indicator on the mount with the digital
display facing you as shown. The angle displayed on the
indicator is the current bedknife top angle.
DPA Cutting Units: Special Tools
1. Bedknife
2. Angle Indicator
1. Angle indicator surface
2. Magnetic mount
3. Bedknife
Page 7–6
g223327
Figure 106
3. Bedbar
g223326
Figure 107
4. Bedbar
5. Angle indicator
