VCU118 Board Power System

[Figure 2-1, callout 31]
The VCU118 hosts a Maxim PMBus based power system.
power system block diagram.
X-Ref Target - Figure 3-27
VCU118 Board User Guide
UG1224 (v1.0) December 15, 2016

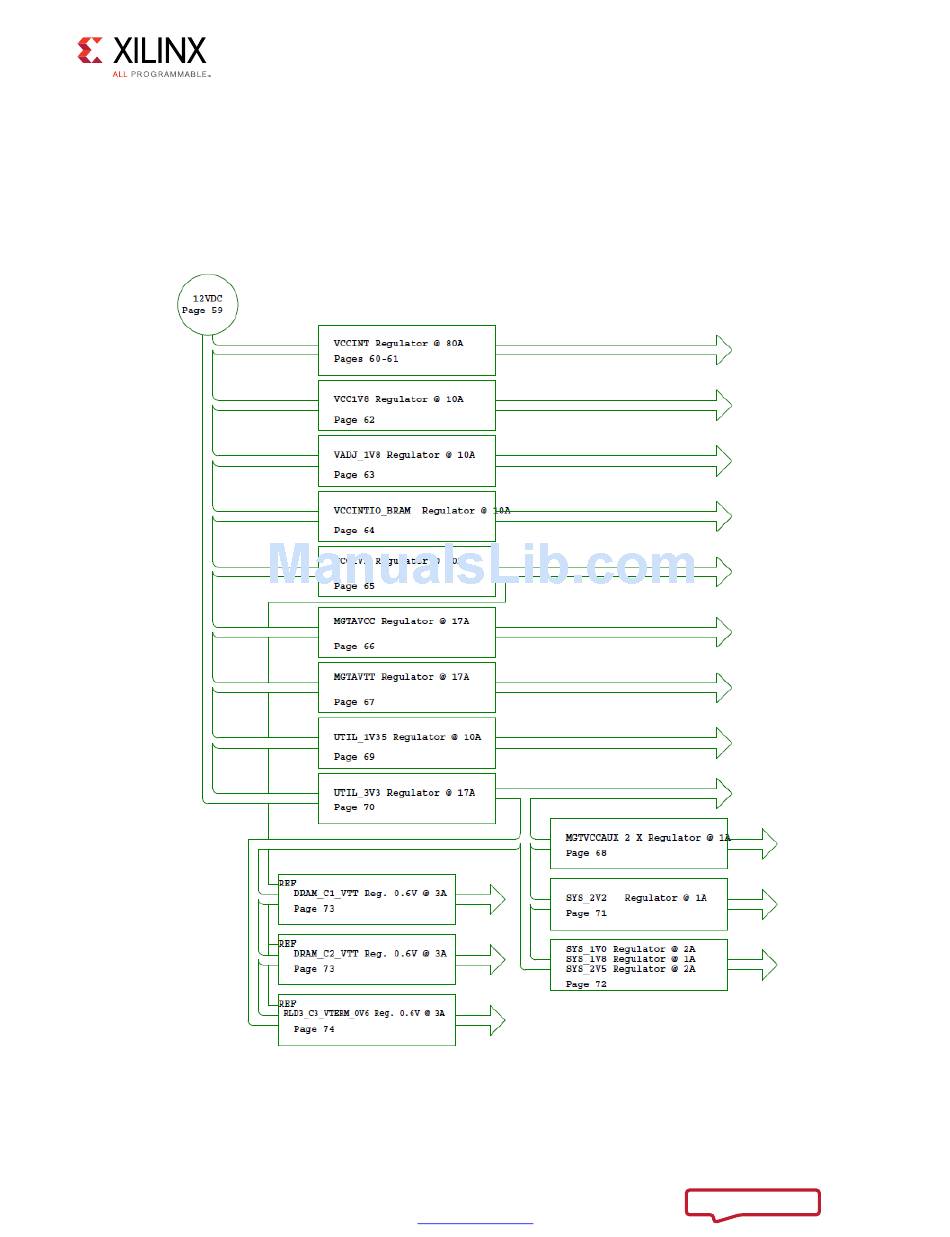

Figure 3-27: VCU118 Power System Block Diagram
www.xilinx.com
Chapter 3: Board Component Descriptions
Figure 3-27 shows the VCU118
X17984-100416
Send Feedback
106
