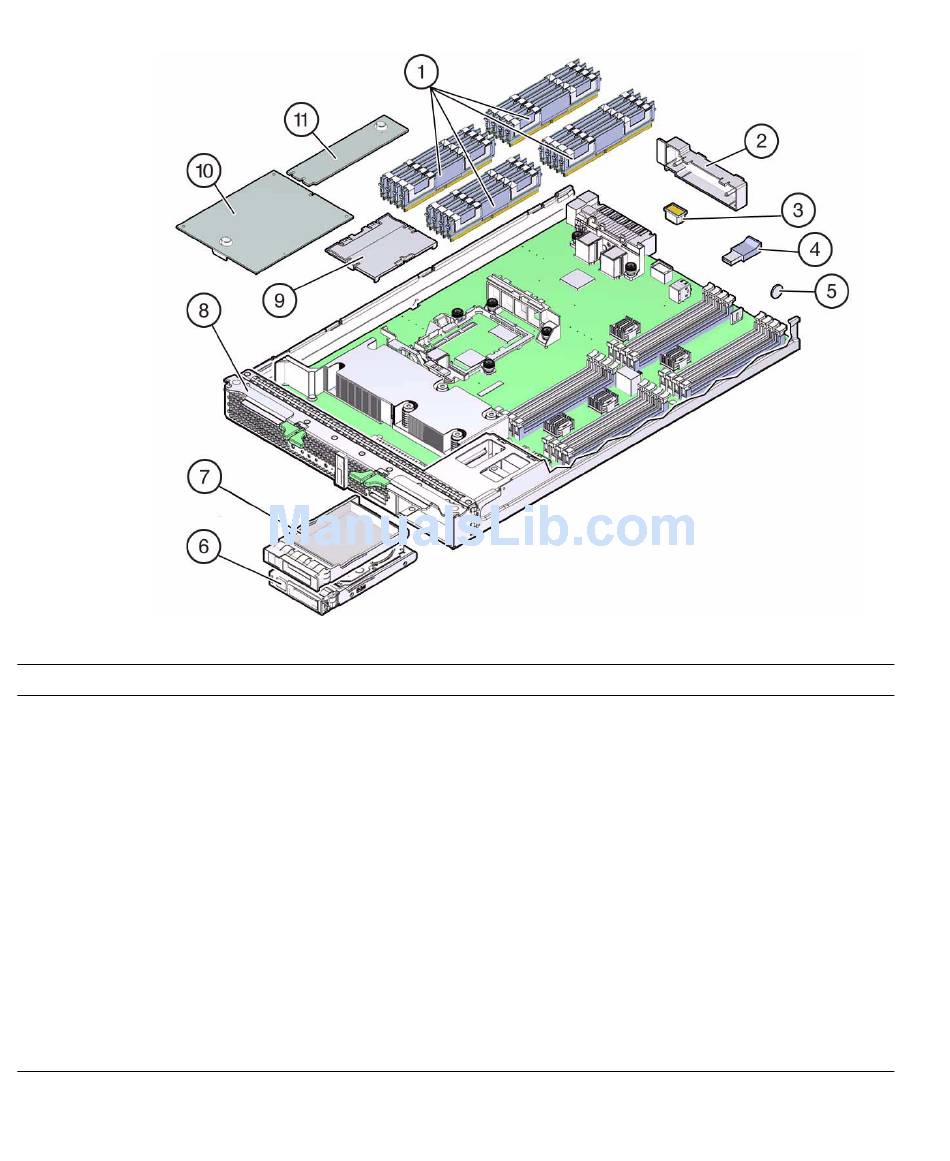

Oracle Netra SPARC T4-1B Service Manual page 12

No. FRU
1 DIMMs
2 Rear connector cover
3 ID PROM
4 USB flash drive
5 Clock battery
6 Drive (HD or SSD)
7 Drive filler
8 Enclosure assembly
9 SP
10 REM
11 FEM
2 Netra SPARC T4-1B Server Module Service Manual • June 2012
FRU Name (If Applicable)
/SYS/MB/CMP0/BOBn/CHn/Dn
/SYS/MB/SCC
/SYS/MB/BAT
/SYS/HDDn
/SYS/MB
/SYS/MB/SP
/SYS/MB/REM
/SYS/MB/FEM
Links
"Servicing Memory" on page 75
Remove before inserting the server module in a slot.
"Servicing the ID PROM" on page 101
"Servicing a USB Flash Drive" on page 105
"Servicing the Battery" on page 109
"Servicing Drives" on page 65
"Servicing Drives" on page 65
"Replacing the Server Module Enclosure Assembly
(Motherboard)" on page 113
"Servicing the SP Card" on page 97
"Servicing the REM" on page 89
"Servicing the FEM" on page 93
