1. Prepare for service.
See "Preparing for Service" on page
2. (If needed) Remove a FEM.
See "Remove a FEM" on page
3. Determine the correct set of motherboard FEM connectors for your FEM.
A double-width FEM (card 1) uses connectors FEM-0 and FEM-1.
■
A single-width FEM (card 2) uses connector FEM-0.
■

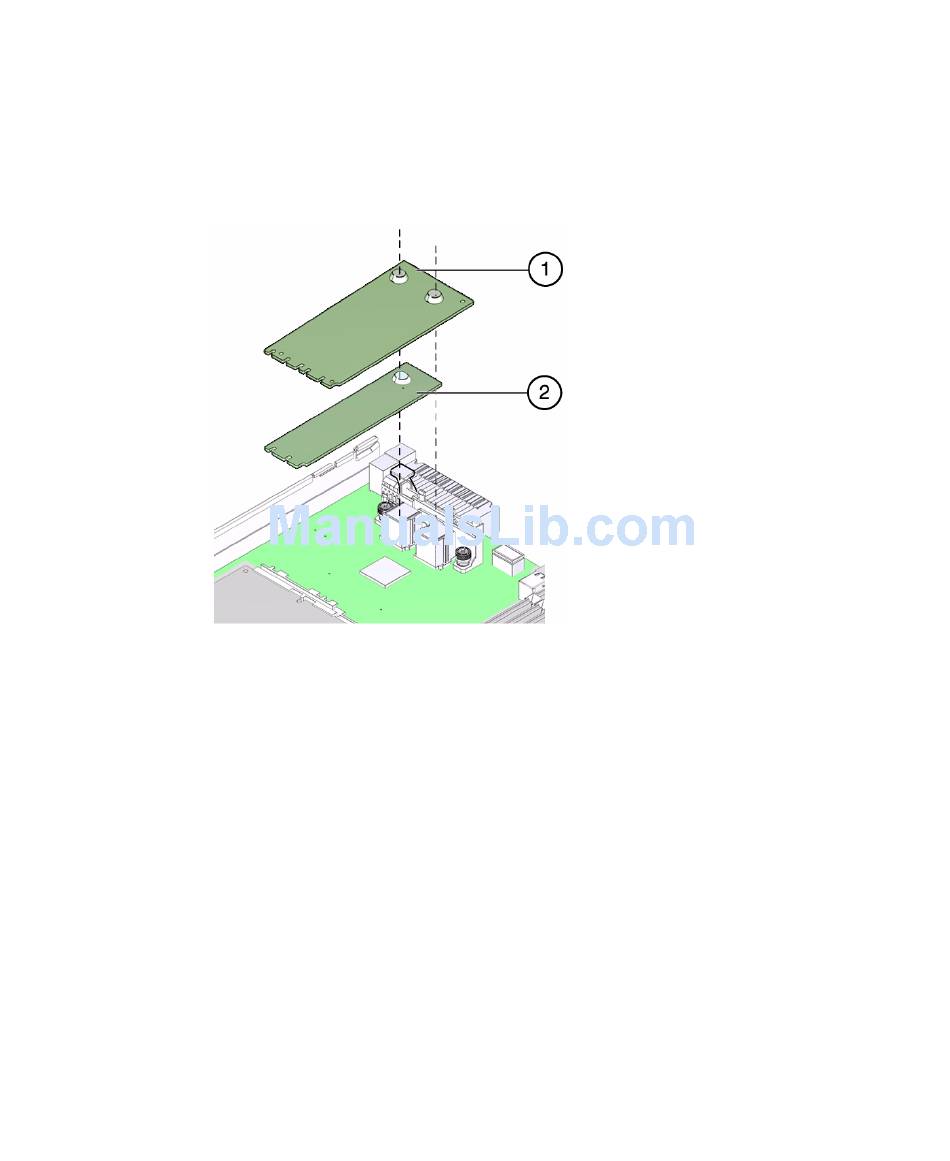

4. Insert the FEM edge into the bracket and carefully align the FEM so that the
card connects with the correct motherboard connectors (panels 1 and 2).
