Page 1 RED DSMC OPERATION GUIDE: E P I C / S C A R L E T E P I C S C A R L E T V 6 . 0 R E D D R A G O N...
Page 2: Table Of Contents
REDMOTE Basics Post Production with REDCINE-X PRO REDMOTE LCD Display Menu HDRx and MAGIC MOTION Upgrade REDMOTE Firmware Additional Resources Chapter 8: Timecode, Genlock, Multi-Camera Setup Chapter 2: EPIC/SCARLET System Components Timecode Additional Resources Genlock BRAIN Master/Slave Operation DSMC Media Modules...
Page 3: Disclaimer
While thought to be accurate, the information ation to, is not associated with or sponsored by, and has no express in this document is provided strictly “as is” and RED will not be held rights in third-party trademarks. Adobe is a registered trademark of responsible for issues arising from typographical errors or user’s...
Page 4: Compliance Statements
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est sus- RED declares that the radio equipment described in this document ceptible d’en compromettre le fonctionnement.Cet appareil numéri- comply with the following international standards.
Page 5 Restrictions d’utilisation - Zone géographique où les restrictions s’appliquent : France Pour la France métropolitaine 2.400 - 2.4835 GHz (Canaux 1 à 16) autorisé en usage intérieur 2.400 - 2.454 GHz (canaux 1 à 10) autorisé en usage extérieur COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 6: Safety Instructions
WARNING: Danger of explosion if an incor- DO NOT operate or store near any heat sources such as radia- rect battery is charged with the RED Char- tors, heat registers, stoves, or any other apparatus that pro- ger or is used to power the camera and duce heat.
Page 7: Battery Storage And Handling
40% to 60%. If RED batteries. batteries will be stored for long periods of time, RED recommends Store the battery in a location where children cannot reach it. that you check the charge level at least once every six (6) months, If the battery leaks or gives off a bad odor, discontinue use and recharge batteries to a capacity level of 40% to 60%.
Page 8: Chapter 1: Epic/Scarlet Introduction

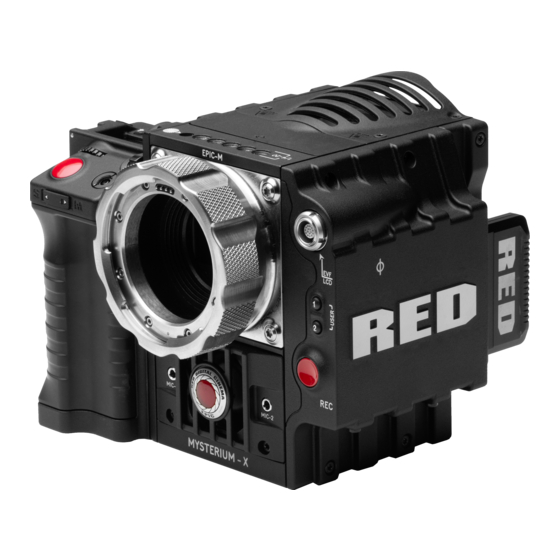

EPIC-M RED DRAGON MONOCHROME READ BEFORE YOU SHOOT Read this operation guide carefully and in its entirety before assembling or operating your DSMC or other RED accessories. In addition to this document, RED offers the following operation guides for the DSMC system:...
Page 9: Dsmc Brain
The expansive RED arsenal of DSMC modules, monitors, lens mounts, controllers, power, media, and other accessories supports both the EPIC and SCARLET BRAINs. Modular DSMC lens mounts enable you to use your existing Canon , Nikon , Leica-M , and PL lenses to capture the perfect shot.
Page 10: Red Digital Sensors
35mm film in both latitude and image density. The RED DRAGON (6K) sensor is a model for image innovation, leading the way in the evolution of digital cinema technology. Boasting an industry-leading 19 megapixels at 6K resolution, the RED DRAGON (6K) supports 100+ frames per second (FPS), 16.5+ stops of dynamic range, and advanced color science.
Page 11: R3D File Format And Redcode
NOTE: The MONOCHROME and RED DRAGON MONOCHROME sensors are only available with EPIC BRAINs. R3D FILE FORMAT AND REDCODE The R3D file format was developed by RED to provide an efficient and manageable RAW video data format that promotes advanced post-production editing capabilities. In the R3D file format, the digital image received from the sensor is formatted as a pixel-defect corrected (but in all other aspects unprocessed) 16-bit per pixel RAW data frame.
Page 12: Shoot For Video And Stills
The DSMC is equipped with a Stills mode that makes it easier to capture stunning images. With presets optimized for stills and Swipe-Up Shortcuts for the RED Touch display, switching from Motion mode to Stills mode is seamless. Using REDCINE-X PRO, or other editing applications supporting the RED SDK, you can pull full resolution still images from R3D files.
Page 13: Hdrx And Magic Motion
MAGIC MOTION creates an image that matches the natural motion observed by the human eye. ADDITIONAL RESOURCES The following resources offer additional information about RED, the DSMC system, and the RED community: RED.com: Check the official RED website for the latest information about RED products.
Page 14: Chapter 2: Epic/Scarlet System Components
NOTE: Availability of components listed in this chapter is subject to change at any time. ADDITIONAL RESOURCES For more information on power and media, see the following guides, available at www.red.com/downloads: DSMC Power Operation Guide DSMC Media Operation Guide COPYRIGHT ©...
Page 15: Brain
Fully press and hold the PWR/REC button for two (2) seconds to turn on/off. When the DSMC is on, fully press and then release the PWR/REC button to toggle record start/stop. BRAIN LEDS This section describes the LED functions for the EPIC/SCARLET BRAIN. COLOR/FLASHING DESCRIPTION...
Page 16: Dsmc Media Modules
Rear SSD Module 720-0009 1. The DSMC 1.8" SSD Side Module (DRAGON) is only available with the purchase of a RED DRAGON sensor-based BRAIN. 2. Carbon fiber side SSD modules are only available with the purchase of a carbon fiber BRAIN.
Page 17 The Rear SSD Module secures to the back of a Module Adaptor or a +1 Adaptor Module to serve as a rear location for recording to a REDMAG 1.8" SSD. For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 18: Redmag And Red Mini-Mag Systems
RED STATION RED MINI-MAG 750-0055 1. The RED MINI-MAG 1TB can take up to 20 seconds to mount to a computer or a DSMC. 2. The RED MINI-MAG 1TB requires that your DSMC is on firmware v5.3.34 or later. 3. The RED MINI-MAG 512GB requires that your DSMC is on firmware v5.1.34 or later.
Page 19: Epic/Scarlet Adaptor Modules
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module. WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor. WARNING: DO NOT use the EVF/LCD port if a Pro I/O Module is connected to the EPIC/SCARLET BRAIN. RED offers the following EPIC/SCARLET adaptor modules:...
Page 20 Power Out > +1 PWR. The last power output setting is saved until a firmware upgrade or a factory reset. +1 ADAPTOR MODULE ACCESSORIES For more information, as well as a full list of EVF/LCD cables and other accessory cables, visit www.red.com. ACCESSORY...
Page 21: Power Modules
, REDVOLT XL, and RED BRICK batteries. When used in combination with a ® ® DSMC AC Power Adaptor or DSMC Side Handle, you can hot-swap batteries without interrupting recording. RED offers the following DSMC power modules: ITEM PART NUMBER Pro Battery Module (Dual) 720-0005...
Page 22: Red Batteries And Chargers
BRAIN. These batteries provide long-term mobile power and attach to the BRAIN via a DSMC power module or other RED accessory, such as the DSMC Side Handle. RED chargers replenish lost capacity for REDVOLT, REDVOLT XL, and RED BRICK batteries.
Page 23 Centralized ports that make it easy to manage connections and cables. LCD/EVF port that allows you to connect an additional RED LCD or EVF. Customizable triggers that interface with third-party GPIO and RS232 control devices using Pro I/O cables.
Page 24 The REDCAST™ Module allows for live 4K streaming, enabling you to capture and view action in real-time. Compatible with both EPIC DRAGON and SCARLET DRAGON cameras, the REDCAST Module uses four (4) 3G-SDI output connections to broadcast 4K video at up to 60 frames per second. Five (5) 1/4-20 mounting holes are built into the top of the module, allowing for various mechanical peripherals to be attached.
Page 25: Displays And Electronic Viewfinders
LCD PRECAUTIONS WARNING: DO NOT use a RED display as a handle to lift or carry the DSMC. Damage to a RED display or other components of the DSMC system caused by using the display as a handle are not covered under warranty.
Page 26 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T WARNING: DO NOT use the threaded holes in the RED Touch LCD base to mount the display to the BRAIN.
Page 27 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color represenation. View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view. Engineered with OBSOLESCENCE OBSOLETE...
Page 28: Lemo Adaptors
DSMC LEMO Adaptor A The DSMC LEMO Adaptor A makes your existing RED Touch and RED PRO displays, as well as RED EVFs, fully compatible with the WEAPON camera system. The DSMC LEMO Adaptor A converts the pogo connection on the WEAPON BRAIN to a legacy EVF/LCD LEMO port.
Page 29: Camera Control Modules
720-0028 ® 1. The RED Switchblade-M requires that your DSMC is on firmware v5.2.28 or later. Full functionality requires DSMC firmware v5.3 or later. 2. The REDLINK Bridge requires that your DSMC is on firmware v5.2.28 or later. DSMC SIDE HANDLE...
Page 30 RED SWITCHBLADE-M RED Switchblade-M The RED Switchblade-M is a low-profile and lightweight interface solution that mounts to the side of the DSMC BRAIN. With a 1.7” OLED display and full navigation controls, the RED Switchblade-M grants full access to DSMC menus while optimizing the size and weight of y our camera configuration.
Page 31 The REDLINK Bridge is part of the REDLINK Development Kit and uses the REDLINK Command Protocol (RCP) to communicate information between the DSMC and your application. For more information, see the REDLINK Bridge Operation Guide, available at www.red.com/downloads. NOTE: The REDLINK Bridge requires DSMC firmware v5.2.8 or later. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 32: Lens Mounts
DSMC Al Leica-M Mount 725-0008 DSMC MOTION MOUNT Ti PL 725-0012 DSMC MOTION MOUNT Ti Canon 725-0014 1. The DSMC RED MOTION MOUNT requires that your DSMC is on firmware v5.1.14 or later. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 33: Interchangeable Olpfs
NOTE: The DSMC interchangeable OLPF system is only compatible with the DRAGON sensor. The DSMC interchangeable OLPF system is an upgrade to the optical low-pass filter (OLPF) in your EPIC DRAGON or SCARLET DRAGON. The modular mounting system enables you to remove and replace OLPFs to achieve optimal color reproduction in any lighting and environment.
Page 34: Chapter 3: Epic/Scarlet Basic Operations
Backpack Quickplate NOTE: Additionally, one (1) REDVOLT battery may be used in conjunction with the DSMC Side Handle to provide ® short term power and support hot-swapping of other power sources. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 35: Configure Your Dsmc
The Power Status LED then illuminates green to confirm that the BRAIN is turned on and ready to use. NOTE: The Power Status LED flashes red when there is less than five (5) minutes of operating time remaining. TURN OFF THE BRAIN Use one of the following methods to turn off the BRAIN: Go to Menu >...
Page 36 5. Install the appropriate screw at the bottom of the BRAIN side plate using a T10 TORX driver. DO NOT exceed 70 in-oz, or damage may occur. ‒ EPIC side plate screw: M3x0.5 x 8 mm ‒ SCARLET side plate screw: M3x0.5 x 5.5 mm WARNING: DO NOT OVERTIGHTEN.
Page 37 3. Rotate the BRAIN side plate upwards to disengage the lip at the top of the side plate from the BRAIN, and remove the BRAIN side plate. 4. Insert the lip on the RED Switchblade-M into the slot where the lip of the BRAIN side plate was installed. 5. Press the Switchblade-M down flush along the side of BRAIN.
Page 38 T20 TORX driver. DO NOT FULLY TIGHTEN. 5. Fully tighten the four (4) screws in a cross pattern (“X” pattern) using a T20 TORX driver. WARNING: DO NOT OVERTIGHTEN. Tighten screws COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 39 REQUIRED TOOL: T20 TORX driver 1. Turn off the BRAIN. 2. Remove the REDMOTE, if attached. 3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN. Install the +1 Module Adaptor COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 40 2. Loosen the four (4) captive mounting screws in a cross pattern (“X” pattern) using a a T20 TORX driver. 3. Disconnect the HDMI connector from the BRAIN. 4. Remove the +1 Adaptor Module from the BRAIN. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 41 2. Use a T20 TORX driver to turn the lock on the adaptor module counter-clockwise to the Unlock position. 3. Rotate the module upwards and away from the adaptor module to disengage. 4. Remove the module. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 42 REQUIRED TOOL: T8 TORX driver The hood scoop on some EPIC-X and EPIC-M models extends beyond the rear plane of the BRAIN. RED offers shorter hood scoops so that you can attach an LCD or other accessory to the mounting locations on the top of the +1 Adaptor Module.
Page 43: Interchangeable Olpf System
WARNING: This procedure is ONLY applicable to DRAGON sensor cameras that are compatible with the DSMC Interchangeable OLPF system. WARNING: Use only DSMC OLPFs. DO NOT use WEAPON RED DRAGON OLPFs. For any questions about OLPF compatibility, please contact your Bomb Squad representative.
Page 44 6. Remove the four (4) M2x0.4 x 4 mm OLPF module screws (P/N 600-0224) in a cross pattern (“X” pattern) using a T6 TORX driver. Remove OLPF module screws 7. Remove the OLPF module and place it in its protective case. Remove the OLPF module COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 45 12. Fully tighten the four (4) OLPF module screws in a cross pattern (“X” pattern) using a T6 TORX driver. DO NOT exceed 30 in-oz, or damage may occur. WARNING: DO NOT OVERTIGHTEN. 13. Replace the lens mount. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 46 IMPORTANT: Ensure the correct OLPF type is selected from the drop-down menu. Failure to select the correct OLPF type will affect color accuracy. For more information, go to “OLPF” on page 121. OLPF Type menu selection COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 47: Use A Tripod Or Monopod
WARNING: Ensure that the tripod, monopod, or support system is designed and rated to handle the weight of your DSMC configuration. RED is not responsible for any damage caused by using a tripod, monopod, mount, or support system that does not provide sufficient support.
Page 48: Video Monitor Outputs
4:4:4 RGB. The camera offers the following monitor outputs: EVF/LCD: Supports a RED EVF or LCD display. HD-SDI: Provides a 720p or 1080p output suitable for monitoring or recording to an external VTR or DDR device. It may be configured for 10-bit LIN (VIDEO) or 10-bit LOG (FILM) encoded data.
Page 49 “Cannot Use Touchscreen or DSMC Side Handle” on page 178. SIMULTANEOUS RECORD You can record simultaneously to an external recorder and a RED SSD. To record simultaneously, follow the instructions below: 1. Connect the BRAIN to an external recorder with an HD-SDI or HDMI cable.
Page 50: Chapter 4: Basic Menus And Controls
Live camera recording view, overlays, guides, and more. Go to “Live Action Area” on page Lower Status Row Critical camera parameters, record/playback modes, media and power status, and audio meter. Go to “Lower Status Row” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 51: Upper Status Row (Basic Menu)
UPPER STATUS ROW (BASIC MENU) The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu. Upper Status Row...
Page 52 For example, select Advanced... in the Frame Rate menu to open Menu > Settings > Project > Frame Rate. For more information about Advanced Menus, go to “Advanced Menus” on page Select “Advanced...” Button “Advanced...” Menu COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 53 For example, if you open the Frame Rate menu and select Edit List..., the camera lets you add or remove values to available frame rates. Select “Edit List...” Button “Edit List...” Menu COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 54 HDRx mode, media, or the target REDCODE compression ratio. MYSTERIUM-X: Range is 3:1 to 18:1. Default is 8:1. RED DRAGON: Range is 2:1 to 22:1. Default is 8:1. For maximum available REDCODE values, see the DSMC Media Operation Guide at www.red.com/downloads.
Page 55: Live Action Area
The focal length and focal distance values and range vary depending on the attached lens. When the focal length of the lens changes, the current values displays. For more information, go to “Lens Tab” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 56: Lower Status Row
DC voltage in or % of remaining battery “Power Status” on page 59 capacity; tap to access the Power menu Audio Meter Audio input selection and levels; “Audio Meter Levels” on page 146 tap to access the Audio menu COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 57: Camera Mode
Media ‒ Power NOTE: For more information, go to “Swipe-Up Menu” on page Default Motion Preset (RED) NOTE: For more information, go to “Default Key Functions” on page 218. STILLS MODE Stills mode optimizes your camera settings for capturing stills. In Stills mode, the camera defaults to 6K 3:2, REDCODE 3:1, Auto Exposure Single Shot, and Multi-Shot mode.
Page 58 RAW Clip Meter Also known as “traffic lights”. Provides a visual representation of exposure and sensor data levels for Red, Green, and Blue channels; Circles (traffic lights) will light up when clipping occurs 1. The RAW Level Bars display the amount of pixels in the image that are noisy or clipped in relation to the total number of pixels in the image.
Page 59 Grey: The sensor sync mode is not set to genlock. Red: The sensor sync mode is set to genlock, but is not locked to a genlock signal. This may occur if genlock or sensor sync is lost while recording.
Page 60 SH: DSMC Side Handle; RM: Rear Module) and the remaining battery capacity. When using a RED BRICK battery connected to DC IN, the power status displays BRICK and the remaining battery capacity. The color of the displayed battery capacity represents the amount of time remaining: Green: >10 minutes...
Page 61: Navigation Controls
R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T NAVIGATION CONTROLS This section describes basic controls for navigating the DSMC menus. TOUCHSCREEN NAVIGATION RED Touch displays offer intuitive menu control and four (4) programmable buttons. RED Touch 7.0" LCD RED TOUCH BUTTON DESCRIPTION...
Page 62 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T SWIPE-UP MENU The Swipe-Up Menu is available in the Lower Status Row on RED Touch displays and provides Swipe-Up Shortcuts for Motion mode, Stills mode, and Playback.
Page 63 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T NAVIGATION GROUP The Navigation Group is the primary control interface on the DSMC Side Handle, RED Switchblade-M, and REDMOTE.
Page 64 1. Press User Keys 1 + 4 simultaneously to lock/unlock DSMC Side Handle buttons to prevent inadvertent menu changes. NOTE: DSMC Side Handle keys are programmable. For more information, go to “Key Mapping” on page 103. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 65 Shutter Speed Integration time or shutter angle Media Status Displays media location and remaining media capacity Power Status Indicates DC supply voltage or % of remaining battery capacity including current supply voltage COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 66 Mounting Thumbscrew Install and remove the RED Switchblade-M 1. Press User Keys A + D simultaneously to lock/unlock RED Switchblade-M buttons to prevent inadvertent menu changes. 2. MODE Button functionality requires DSMC firmware v5.3 or later. NOTE: RED Switchblade-M keys are programmable. For more information, go to “Key Mapping”...
Page 67 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T RED SWITCHBLADE-M DISPLAY The RED Switchblade-M OLED display provides basic camera parameters during operation. RED Switchblade-M OLED...
Page 68: Chapter 5: Advanced Menus
Tap the Menu button on the DSMC Side Handle or REDMOTE ® ® Tap the Menu icon on the touchscreen. Select the Advanced... button in any menu from the Upper Status Row (except the REDCODE menu). COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 69: Settings Menu
Red: Overexposed; indicates sensor exposure levels that are clipping. Purple (underexposure) and red (overexposure) are based on RAW data and show areas that are clipping or close to clipping. The RGB settings (settings in the Look menu) DO NOT affect the Exposure indicators.
Page 70 16: Represents the top stop, and is broken up into 1/8th increments to show highlight roll-off. Each 1/8th stop is represented by a different shade of red, ranging from light red (less light) to dark red (most light). COPYRIGHT © 2015 RED.COM, INC...
Page 71 ® The side-bars are green if the pitch is within +/– 1° of the calibrated zero position, otherwise they are red. The horizon-line is green if the roll is within +/– 1° of the calibrated zero position, otherwise it is red.
Page 72 NOTE: When two (2) touchscreens are attached to the DSMC with the same resolution and one (1) is currently the control surface, set the other to mirror it and give the effect of having two (2) control surfaces. OVERLAY Select which overlay shows on top of the video. RED provides preset overlays, which have “(RED)” in the ®...
Page 73 Enables the false color modes on the monitor. For more information, go to “Tools” on page FLIP/MIRROR UI NOTE: This setting is NOT available on the RED Touch 7.0" LCD. For more information, go to “Flip/Mirror” on page Flip the graphical user interface (GUI) vertically and mirror horizontally (not rotated). Use this setting when mounting a monitor upside down.
Page 74 Control > Monitor tab. Media: Overlays saved to an SSD can be found at On Media: \overlays:. NOTE: Overlays that end with (RED) are provided by default and cannot be edited, deleted, or exported. OVERLAY ACTIONS Create...: Create a new custom overlay using a blank overlay template in the Overlay Editor.
Page 75 Each monitor that has higher priority on the list must be either detached or not set to Overlay mode. EXAMPLE By default, the monitor priority is: 1. BRAIN LCD 2. BRAIN EVF 3. BRAIN HDMI COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 76 Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a dimmer display. Side UI LCD controls the brightness of the Switchblade-M LCD. NOTE: A rear LCD/EVF is an LCD/EVF that is plugged into any rear RED module, such as the +1 Adaptor Module or the Pro I/O Module.
Page 77 Input: Displays levels of audio inputs (pre-mixer). (Default) Output: Displays levels of audio outputs (post-mixer). HISTOGRAM NOTE: The Histogram setting is not accessible on BRAINs with MONOCHROME or RED DRAGON MONOCHROME sensors. RGB: Displays red, green, and blue channels on histogram. (Default) Luma: Displays luma channel on histogram.
Page 78 Metric: Displays lens focus distances in meters. Imperial: Displays lens focus distances in feet and inches. (Default) MOTION MOUNT ND AND MOTION MOUNT ISO PULL Only applicable when using a DSMC RED MOTION MOUNT . For more information, see the RED MOTION MOUNT ®...
Page 79 The Look menu includes: Color, Gain, ISO/FLUT, Sharpness, Curves, Color/Gamma, Color Temperature, and LGG (Lift, Gamma, Gain). The Look settings affect the look of the monitor path, but do not affect the recorded RAW data. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 80 CURVES Define the individual curves for the Luma, Red, Green, and Blue channels. You can only adjust one (1) curve at a time. Select Reset Curve to reset a curve. NOTE: Luma is the only channel on BRAINs with MONOCHROME or RED DRAGON MONOCHROME sensors.
Page 81 COLOR SPACE AND GRADED GAMMA SPACE RED recommends using the most recently released Color Space and Graded Gamma settings. Use legacy settings (such as REDcolor2) only if you need to record footage to match footage that you recorded with that legacy setting.
Page 82 7. Repeat Step 5 Step 6 for each monitor you are using. 8. To return to the Color/Gamma menu, select Close. To close all menus, tap any area outside of the menu. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 83 (you cannot select color space and graded gamma space when ACES Proxy is enabled). COLOR TEMPERATURE Select a color temperature. The range is 1700 to 10,000 KELVIN, and the default is 5600 KELVIN. NOTE: The Color Temperature settings are not accessible on BRAINs with MONOCHROME or RED DRAGON MONOCHROME sensors. TINT Color temperature calculations assume a pure light source that may not be true in the specific scene the camera is imaging.
Page 84 Alternatively, select Color Temperature > Advanced... from the Upper Status Row. 3. Select Auto White Balance. LGG (LIFT, GAMMA, GAIN) Adjust the lift, gamma, and gain for the Red channel, Blue channel, and Green channel individually. PROJECT The Project menu includes: Frame Rate, Exposure, Timecode, Slate, and Format.
Page 85 Audio is not recorded in Varispeed mode. EPIC DRAGON FRAME RATES The table below describes the maximum frame rate for each resolution of the EPIC DRAGON. The minimum frame rate is always 1 FPS. The table below omits rows for the anamorphic formats, since the maximum frame rate for each anamorphic format and the corresponding non-anamorphic format is the same.
Page 86 2K 6:5 240.55 4K 3:2 102.08 2K 3:2 202.74 4K 4:3 90.81 2K 4:3 180.49 4K 5:4 85.16 2K 5:4 169.34 4K 4:1 252.55 2K 4:1 400.00 4K 8:1 400.00 2K 8:1 400.00 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 88 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T EPIC MYSTERIUM-X AND SCARLET MYSTERIUM-X FRAME RATES The table below describes the maximum frame rate for each resolution of the EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X.
Page 89 MYSTERIUM-X: Slowest speed is 1/recording frame rate. For 24 FPS, the slowest speed is 1/24 sec. RED DRAGON: Slowest speed is 1/8 sec, regardless of the recording frame rate. The fastest speed is 1/131,579 sec. Default is 1/48 sec.
Page 90 The Auto Head Frames and Auto Tail Frames metadata values are currently disabled in REDCINE-X PRO. FORMAT Use the Format menu to select the resolution, aspect ratio, anamorphic setting, and lookaround setting. After selecting format settings, select Set Format. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 91 For more information, go to “Anamorphic” on page EPIC DRAGON offers a 6:5 aspect ratio for each resolution. Using a 6:5 aspect ratio at 2x anamorphic gives you a 2:40:1 aspect ratio. RESOLUTION...
Page 92 2.5K RAW HD—16:9 2304 1296 2.5K 3:2 2.5K RAW 3:2 2400 1600 2.5K 4:3 2.5K RAW 4:3 2400 1800 2.5K 5:4 2.5K RAW 5:4 2400 1920 2.5K 4:1 2.5K RAW 4:1 2560 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 94 2K RAW Full Frame 2048 1080 2K 2:1 2K RAW 2:1 2048 1024 2K WS 2K RAW Wide Screen—2.4:1 2048 2K HD 2K RAW HD—16:9 1920 1080 2K 6:5 2K RAW 6:5 1296 1080 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 95 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T EPIC MYSTERIUM-X AND SCARLET MYSTERIUM-X FORMATS The table below describes the formats that are available for EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X. EPIC MYSTERIUM-X: Default is 5K 2:1.
Page 96 ‒ 5K 1.22:1: Anamorphic 2x NOTE: Anamorphic de-squeeze on the RED PRO LCD 7.0" requires that your DSMC is on firmware v5.3 or later. DE-SQUEEZED RESOLUTION AND DE-SQUEEZED ASPECT RATIO When you enable anamorphic, both the actual format and the de-squeezed format display at the bottom of the Format menu.
Page 97 The Anamorphic tab lists the following anamorphic formats: EPIC DRAGON: Every format with a 6:5, 5:4, or 4:3 aspect ratio and a 1.3x or 2x anamorphic setting SCARLET DRAGON: 5K 6:5 2x EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X: 5K 1.22:1 2x...
Page 98 Local: Stores footage directly to an SSD Network: Stores footage to a network NOTE: The Network option is only available on an EPIC DRAGON or SCARLET DRAGON. External: Stores footage to an external device NOTE: In External storage, you can only select Continuous Record and Motion + Stills recording modes.
Page 99 3. Use the Limit Recording to fields to set the recording to end at a predefined frame limit (optional). 4. Select a Pre Count and Post Count. For more information, go to “Pre Count and Post Count” on page 100 5. Close the menu. 6. Start recording. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 100 The maximum frame counts are listed in the Available column, and are based on format and REDCODE. MULTI-SHOT NOTE: Multi-Shot mode is only available on an EPIC DRAGON or SCARLET DRAGON. NOTE: The camera does not sync timecode in Multi-Shot mode.
Page 101 6. Press the PWR/REC key on the BRAIN to start recording. 7. Press a Record key on the side SSD module, REDMOTE, or DSMC Side Handle to mark a frame. 8. Press the PWR/REC key on the BRAIN to stop recording. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 102 NOTE: To use Pre-Record only for specific situations, map Pre-Record to a key (Menu > Settings > Setup > Keys > Record: Start Pre-Record). For more information, go to “Keys” on page 103. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 103 Record Stop ‒ Mark Still Frame EVF Tally Light: Select this check box to enable the EVF Record Tally LED on the EVF to illuminate red when recording. SETUP The Setup menu includes: Keys, Date/Time, Communication, REDmote, GPIO/Sync, Fan Control, Lens, and Motor Control.
Page 104 For example, on a multi-rig 3D shoot, you can send commands to an individual camera (Example: Set CAM_A_L to 1/48 exposure), to a group of cameras (Example: Set 3DRIG_A to 48 FPS), or to all cameras (Example: Start Recording on all cameras). COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 105 GIG-E or the REDLINK Bridge). ® Select one of the following protocols from the Serial Protocol drop-down menu: None (Default) Element Technica 3ality SPC 7XXX REDLINK Command Protocol COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 106 Off: Sensor runs at the current recording frame rate. This is the default option. Genlock: Sensor synchronizes with the incoming compatible genlock signal. MoCo: Each rising edge on the sync input triggers a frame to be captured. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 107 Regardless of sensor type and fan mode, you will get the best image quality by performing a black shading calibration at the temperature you want to use for your shoot. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 108 Targeting a lower temperature lowers the sensor temperature, shortens the sensor warm-up time, and increases the fan speed. EPIC DRAGON and SCARLET DRAGON: Target temperature range is 55°C to 70°C. A target temperature of 65°C works best across most environmental conditions.
Page 109 Status, and OLPF. SAVE A LOG FILE A LOG file is a detailed text file of the processes and operations performed by the DSMC. If you contact RED for support, you may be asked to send a LOG file. To save a LOG file, follow the instructions below: 1.
Page 110 110. For EPIC DRAGON or SCARLET DRAGON: After each firmware upgrade. For EPIC MYSTERIUM-X or SCARLET MYSTERIUM-X: After a firmware upgrade if instructed to do so in the firmware release notes. To check the temperature/exposure of the current calibration file, go to Menu > Settings > Maintenance > System Status >...
Page 111 6. For EPIC DRAGON or SCARLET DRAGON, you can create up to four (4) calibration maps at a time. Select a check box for each calibration map you want, select the exposure you want for each from the drop-down menus, and go to “10.
Page 112 : Export selected calibration map from camera to SSD. : Import selected calibration map from SSD to camera. This overwrites the user HS calibration map. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 113 1. Attach a DSMC Canon Mount or DSMC Nikon Mount to the BRAIN. 2. Attach an electronic lens. 3. Manually set the first focal length you want to calibrate. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 114 When you attach a lens that the camera does not recognize, the “Unsupported Lens Found” dialog box displays and asks if you want to calibrate the lens. Select Create Custom Lens Config. Go to Menu > Settings > Maintenance > Calibrate > Lens and select Create..‒ COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 115 6. To calibrate the next focal length, follow the instructions below: A. Go to Menu > Settings > Maintenance > Calibrate > Lens. B. Select the calibration file name in the Camera list and select Edit..COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 116 DO NOT touch the lens, since that may cause incorrect calibration. 7. Repeat Step 6 for each focal length of the lens. The lens calibration file remains on the camera after system restores and firmware upgrades. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 117 3. You can perform any of the following actions: Add Cal @ xx...: Calibrate the current focal length; “xx” is the current focal length. ‒ ‒ Remove Cal: Remove the calibration for the selected focal length. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 118 : Export selected file from camera to SSD. All : Export all files from camera to SSD. : Import selected file from SSD to camera. All: Import all files from SSD to camera. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 119 Prompt for calibration of unsupported lenses: Select this check box to ensure that the “Unsupported Lens Found” dialog box displays every time the camera detects an unsupported electronic lens at boot-up. Deselect this check box to disable the “Unsupported Lens Found” dialog box. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 120 3. Select Yes on the screen that asks you to confirm the System Restore. The BRAIN turns off. 4. Turn on the BRAIN. NOTE: After performing a system restore, pair the REDMOTE to the camera again. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 121 NOTE: The OLPF menu is only available on an EPIC DRAGON or SCARLET DRAGON. RED offers multiple optical low-pass filters (OLPFs) for EPIC DRAGON and SCARLET DRAGON. Each OLPF optimizes certain characteristics to take full advantage and control of each shooting environment. The camera checks the OLPF type, and adjusts the color scienced based on the selected OLPF.
Page 122 The OLPF type displays: ‒ SKIN TONE-HIGHLIGHT: Also known as “OLPF, Version 2”. Currently shipping in new cameras unless oth- erwise requested. ‒ LOW LIGHT OPTIMIZED: Also known as “OLPF, Version 1”. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 123 IMPORTANT: Ensure the correct OLPF type is selected from the drop-down menu. Failure to select the correct OLPF type will affect color accuracy. NOTE: If you are unsure which OLPF is installed, go to “Verify Installed OLPF” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 124: Media Menu
For more information about using media, see the DSMC Media Operation Guide, available at www.red.com/ downloads. DEVICE Format and eject (unmount) the SSD. CLIPS View and load clips on the SSD in thumbnail view. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 125: Playback Menu
Displays the metadata for the selected clip. PLAYBACK STATUS BAR Displays the progress of the clip during playback. When using the touchscreen, swipe your finger right and left to fast-forward and rewind the clip, respectively. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 126 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T PLAYBACK CONTROLS Playback Controls 10 11 Play Options 14 15 17 18 Marker Options COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 127 Goes to the next marked frame, which displays as a red line in the Playback Status Bar. Disabled when there are no marked frames. 1. Thumbnail view is only available on an EPIC DRAGON or SCARLET DRAGON. On MYSTERIUM-X cameras, a logo appears instead of a thumbnail.
Page 128: Power Menu
“Turn Off the BRAIN” on page 1. Go to Menu > Power. 2. Select Shutdown. The Shutting Down... message displays and the camera turns off. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 129: Hdrx Menu
X Track: This track shows the video with the additional stops applied. NOTE: For more information, see the High Dynamic Range Video with HDRx article, available at www.red.com/ learn/red-101/hdrx-high-dynamic-range-video. FOCUS MENU The Focus menu includes: Mode and Rack. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 130 Manual: When selected, all focus operations are manual. Confirm: Enables the Center or Spot focus target. This mode provides additional focus assistance by using red, yellow, and green color changes to the focus spot window. Inadequate subject illumination and/or contrast may interfere using Confirm mode.
Page 131 Scene has reflective highlights. Subject is backlit. Inadequate surface contrast/detail inside the window. NOTE: Use Edge mode for assistance in these conditions. For more information, go to “Edge” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 132 1. Go to the main screen. 2. Press the Down Arrow in the Navigation Group. The Spot target line weight increases and the red cursor under Menu dims slightly. 3. Use the directional arrows to move the Spot target to the desired location.
Page 133 Bar target Target is yellow or green; vertical Target is red; vertical bar on the bar on the right side is filled up left side is almost empty Pie target Target is yellow or green; line Target is red;...
Page 134 (A, B, C, and D). For example, if rack point A is selected when you trigger the AF: Start action, the focus racks from point A to point B. ‒ Press a key that is mapped to racking to a specific rack point. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 135: Exposure Assist
The AE feature is different than traditional AE, in that RED AE only controls the amount of light that hits the sensor, either by adjusting aperture or exposure. RED AE analyzes RAW data before the ISO curve, and ensures that the sensor matches the user-selected brightness.
Page 136 When the AE feature is able to match the sensor brightness, the overlay turns yellow. If the brightness fluctuates more than half of a stop, the overlay turns red. When AE is enabled, the “AE” indicator displays before the aperture and exposure parameters in the Upper Status Row.
Page 137: Presets Menu
You cannot update factory-installed presets, which end with “(RED)”. Clone...: Create a new preset using the selected preset as a template. Delete: Delete the selected preset. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 138 : Import selected Look from SSD to camera. All: Import all Looks from SSD to camera. ‒ For more information, see the “REDCINE-X PRO: Saving Looks to Camera” video tutorial, available at www.red. com/learn/workflow/redcine-x-saving-looks-camera. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 139 On Enter Preview: The selected preset is applied every time the camera enters Preview mode, including at startup and when exiting Playback mode. On Enter Playback: The selected preset is applied every time the camera enters Playback mode. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 140: Chapter 6: Record And Monitor Audio
PRO I/O PRO I/O LINE 2 AES 3 PRO I/O AES 4 MONITOR LINE 1 4 CH TO 2 CH PEAK MIXER MONITOR LINE 2 POST-MIXER PRE-MIXER RECORDING PEAK METER PEAK METER COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 141: Set Up Audio
PRO I/O AES A/B (DIGITAL INPUT) The AES connector on the Pro I/O Module allows an input of 24-bit, 48 KHz AES digital audio. NOTE: Digital input audio is only available via the Pro I/O Module. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 142: Channel Name
Select the Limiter check box to add a limiter to the analog input signal chain. Use the limiter in dynamic environments where external mixers are not practical for controlling signal strength. The limiter is only available with analog audio input. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 143 NOTE: To link the amplification for each channel, go to Menu > Settings > Audio > Channel and select the Gain Sliders check box. For more information, go to “Link” on page 142. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 144: Audio Output Options
NOTE: To link the volume for Left and Right, go to Menu > Settings > Audio > Channel and select the Volume Sliders check box. For more information, go to “Link” on page 142. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 145: Audio Meter (Vu Meter)
The Audio Meter shows the incoming audio signal when a source is selected, even if the channel is not recorded. When a channel is recorded, the channel indicator left of the Audio Meter is green. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 146: Audio During Playback
0 dBFS Audio is clipping (if signal exceeds –1 dBFS, the whole bar is red) NOTE: In the American broadcast and post production systems, –20 dBFS roughly corresponds to 0 VU and 4 dBu. In a digital system, dBu is an approximation; the correct unit for digital audio levels is dBFS.
Page 147: Chapter 7: Redmote Operation
50 ft. The REDMOTE supports 16 (0-15) wireless channels ranging from 2.4 GHz to 2.4835 GHz. The default channel is 0. IMPORTANT: To operate properly, upgrade both REDMOTE and DSMC firmware to the most recent version. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 148: Controls, Connectors, And Leds
Charges the internal battery; upgrade firmware For a full list of default user key actions for the REDMOTE, go to “Default Key Functions” on page 218. COMPATIBLE CABLE 790-0230: RED Mini-USB-to-USB cable ® COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 149 Use the Navigation Group to navigate the DSMC menus and change settings. Scroll Wheel: Select and adjust the value of a selected setting. Directional Keys (D-Pad): Navigate menus. ENTER: Press ENTER to confirm a setting or access the selected menu. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 150: Redmote Basics
Power/Lock Switch, a slight power draw remains and continues to drain the battery. RECORD START/STOP Start Record: Press and release the REC button. The Power/Recording LED illuminates red and the Timecode value on the LCD display changes to red text.
Page 151 RECONNECT THE REDMOTE AFTER SIGNAL LOSS On loss of wireless communication, the REDMOTE scans for the camera it was last paired with. If the REDMOTE is unable to reconnect after 30 seconds, the manual Scan menu opens. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 152 Green: The battery has a sufficient charge, or is fully charged. Yellow: The battery is somewhat depleted and should be recharged soon. Red: The battery is nearly discharged and should be recharged immediately. Wireless communication is at risk of being lost when the battery indicator is red.
Page 153: Redmote Lcd Display Menu
Audio input selection and levels Power Status Indicates DC supply voltage or % of remaining battery capacity including current supply voltage Camera ID Displays camera ID Wireless Status Displays signal strength when connected wirelessly COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 154: Upgrade Redmote Firmware
This section describes the REDMOTE firmware upgrade process using a Mac. INSTALL REDMOTE UPGRADE UTILITY (MAC) The REDMOTE Upgrade Utility enables you to upgrade REDMOTE firmware from your computer. 1. Download the REDMOTE Upgrade Utility, available at www.red.com/downloads. 2. Uncompress and open the zip file. 3. Open the REDMOTE_Upgrade_Utility folder.
Page 155 UPGRADE REDMOTE (WINDOWS) This section describes the REDMOTE firmware upgrade process using Windows. INSTALL REDMOTE UPGRADE UTILITY (WINDOWS) 1. Download the REDMOTE Upgrade Utility, available at www.red.com/downloads. 2. Uncompress and open the zip file. 3. Open the REDMOTE_Upgrade_Utility folder. 4. Open the Win folder.
Page 156 NOTE: If the REDMOTE does not connect to the Windows computer, download the REDMOTE Firmware file from www.red.com/downloads, open the read_me_redmote_vX.X.XX file, and follow the instructions to manually set up the network connection. For additional assistance, contact RED SUPPORT at https:// support.red.com.
Page 157: Chapter 8: Timecode, Genlock, Multi-Camera Setup
Edge: Edge timecode is continuous between clips, meaning that when recording starts, timecode begins. and when recording stops, timecode stops. By default, Edge timecode default begins at 01:00:00:00, but can be configured in the Media menu (Menu > Media > Device > Format). COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 158 A. Connect the yellow BNC connector to the output on the timecode generator. B. Connect the 00B LEMO connector to the SYNC port on the BRAIN. 2. Go to Menu > Settings > Project > Timecode. 3. Select the desired Timecode Display Mode. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 159 The TC indicator in the Lower Status Row turns green when an external timecode source is locked. Source: External: BRAIN NOTE: When an external source is selected but not present, timecode displays User Provided settings. REQUIRED CABLE 790-0154: 3BNC-to-00 LEMO Sync Cable COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 160: Genlock
Monitor Sync is achieved automatically when a genlock signal is provided that is compatible with the current monitor output frequency. When Monitor Sync is achieved, the GEN indicator in the Lower Status Row illuminates green. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 161 The GEN indicator in the Lower Status Row turns green when a compatible genlock signal is present and genlock is enabled. The SYNC indicator in the Lower Status Row turns green when Sensor Sync is achieved. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 162: Master/Slave Operation
3. On the Slave camera(s), follow the instructions below: A. Go to Menu > Settings > Setup > Communication. B. Type a name for the camera (Example: CAM B, RIGHT, SLAVE, etc) in the Name field. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 163 The LAN indicator in the Lower Status Row illuminates green. NOTE: Cameras can also be set up in Master/Master configuration. To set as Master/Master, set Target to All on both cameras, allowing either camera to make changes and control record start/stop. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 164 The only exception is the camera-generated wildcard characters. For example: Master: A001_C001_0503B6.R3D Slave: A001_C001_0503R7.R3D NOTE: Reel No, Cam ID, and Cam Pos can be set when formatting media at Menu > Media > Device. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 165: Set Up Stereo/3D Configuration
3D CONFIGURATION EXAMPLE The diagram below is an example of how to set up a 3D configuration. REQUIRED CABLES 790-0163: Master/Slave Gig-E Cable 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 166: Set Up A Camera Array
B. Connect the Ethernet connector to the router. 4. On all cameras, follow the instructions in “Set Reel Number, Camera ID, and Camera Position” on page to prepare media and camera settings. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 167 The diagram below is an example of how to set up a camera array. REQUIRED CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera) 790-0159: LEMO-To-CAT5E Ethernet Cable (9') (required per camera) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 168: Set Up Motion Control (Moco)
CTRL port on the BRAIN. 2. Go to Menu > Settings > Setup > GPIO/Sync > Sync. 3. Select MoCo from the Sensor Sync Mode drop-down menu. MoCo GPIO/Sync Settings 4. Select the BRAIN GPIO tab. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 169 Supply a pulse from the Motion Control device to sync the shutter to the rising edge of the sync input. For more information, refer to the manufacturer’s instructions for the Motion Control device. REQUIRED CABLE 790-0154: 3BNC-to-00 LEMO Sync Cable (required per SYNC and CTRL port used) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 170: Compatible Devices
R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T COMPATIBLE DEVICES The following timecode and genlock devices are compatible with the camera. Additional timecode devices may be compatible, but have not yet been tested by RED ® COMPATIBLE TIMECODE DEVICES...
Page 171: Chapter 9: Upgrade Dsmc Firmware
D. Turn off the camera, and remove the SSD. You will copy the files back to your camera after the upgrade procedure, as described in Step 2. Connect an SSD (RED MINI-MAG or RED STATION REDMAG 1.8") to your computer. NOTE: On Mac computers with REDCINE-X PRO installed, RED Watchdog mounts the SSD as Read-Only ®...
Page 172 SSD to the camera. 15. After upgrading an EPIC DRAGON or SCARLET DRAGON, go to Menu > Settings > Maintenance > Calibrate > Sensor and black shade your camera using the Black Shading (default) option. For more information, go to “Calibration Capture (Black Shading)”...
Page 173: Chapter 10: Dsmc Maintenance
The camera sensor and optical low-pass filter (OLPF) are EXTREMELY sensitive to dust, debris, and contamination. As with all optical glass, any type of physical contact with the OLPF may scratch or damage the surface. RED recommends that you clean the camera sensor or OLPF using physical contact ONLY if absolutely necessary.
Page 174: Lcd And Evf Screens
174. SCREEN STORAGE Store any RED device with a screen in a RED Microfiber bag. Storing devices in a RED Microfiber bag preserves the superior quality of the specialized AR and AS coatings on the LCDs. Hand wash and air-dry the RED Microfiber bag regularly.
Page 175: Chapter 11: Troubleshoot Your Dsmc
SSDs. 10. If any errors occur, save a log file and submit a Technical Support request at https://support.red.com. NOTE: Problems or dropped frames found during the stress test display as “Errors” in the bottom of the user interface.
Page 176 121. Upgrade your camera firmware. For more information, go to “Upgrade DSMC Firmware” on page 171. Perform a System Restore. For more information, go to “Restore System” on page 120. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 177 Ensure display does not show the message “REDLINK Upgrade Required”. CANNOT SEE MENUS ON LCD TOUCHSCREEN SYMPTOM The LCD touchscreen does not display menus. POTENTIAL RESOLUTION Double-tap the LCD touchscreen to exit Clean mode. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 178 ® the DSMC Side Handle: A. Connect an SSD (RED MINI-MAG or RED STATION REDMAG 1.8") to your computer. ® NOTE: On Mac computers with REDCINE-X PRO installed, RED Watchdog mounts the SSD as Read- ®...
Page 179 ERROR 0X00000020 SYMPTOM The display shows a message with the phrase “Error 0x00000020. Please save log and send to RED support.” POTENTIAL RESOLUTIONS Perform a secure format of the SSD. For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads.
Page 180 “Perform a Hard Restore” on page 180. Update the camera firmware to the latest release build available for download at www.red.com/downloads. PERFORM A HARD RESTORE A common way to resolve camera firmware issues is to perform a Hard Restore. A Hard Restore functions like a System Restore in that it changes all settings to the factory default values.
Page 181 The image has a faint vertical rainbow artifact. EXPLANATION When using a polarizer with an EPIC DRAGON or SCARLET DRAGON (with either a Skin Tone-Highlight or a Low Light Optimized OLPF), a faint vertical rainbow artifact might appear on the image. This artifact is not exclusive to EPIC DRAGON or SCARLET DRAGON cameras, and can occur on other cameras depending upon camera orientation and direction of the polarized light.
Page 182 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T TIMECODE OR GENLOCK DOES NOT FUNCTION SYMPTOM The SYNC, GEN, and/or TC light is red, yellow, or greyed out. POTENTIAL RESOLUTIONS Ensure your timecode or genlock device is compatible. For more information, go to “Compatible Devices”...
Page 183: Appendix A: Technical Specifications
Project Frame Rates 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) , JPEG 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime ®...
Page 184 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T EPIC DRAGON TECHNICAL SPECIFICATIONS SPECIFICATION DESCRIPTION Construction...
Page 185: Scarlet Dragon
Project Frame Rates 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG Avid AAF, MXF.
Page 186 “SCARLET DRAGON Formats” on page 94 for a full list. 2. 480p is available for HDMI only. 3. To see all of the maximum available REDCODE values, see the DSMC Media Operation Guide at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 187: Epic Mysterium-X
Equivalent to S35mm (Motion)/APS-H (Still) lenses Equivalent to 16mm (Motion) lens in 2K RAW Acquisition Formats Go to “EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X Formats” on page for a full list Project Frame Rates 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
Page 188: Scarlet Mysterium-X
Equivalent to S35mm (Motion)/APS-H (Still) lenses Equivalent to 16mm (Motion) lens in 2K RAW Acquisition Formats Go to “EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X Formats” on page for a full list Project Frame Rates 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin)
Page 189 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T SCARLET MYSTERIUM-X TECHNICAL SPECIFICATIONS SPECIFICATION DESCRIPTION Storage Temperature Range –20˚C to 50˚C (–4˚F to 122˚F) 1. 480p is available for HDMI only. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 190: Brain Dimensions
R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T BRAIN DIMENSIONS NOTE: Dimensions are shown in mm. EPIC BRAIN DIMENSIONS FRONT VIEW 98.00 147.00 137.00 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 200: Appendix B: Input/Output Connectors
® ® NOTE: When connecting a cable to a connector, align the key and red marker on the cable connector with the corresponding key and marker on the device connection. NOTE: Connector diagram images are for reference only. Diagrams are not to scale.
Page 201: Record/Monitor Out Ports
If you have a drop frame project time base (such as 23.98), you can select only drop frame frequencies. 75 OHM BNC CONNECTOR SIGNAL DESCRIPTION DIRECTION Center 3G-SDI SMPTE ST 424 Shield/Screen GROUND Camera ground COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 202: Communication Ports
1. Ensure you select a frequency supported by your monitor. 2. The HDMI output is progressive scan (p); it does not support progressive segmented frame (PsF) or interlaced (i) scan formats. COMPATIBLE CABLE 790-0331: RED HDMI Cable (5') COMMUNICATION PORTS SYNC (VIDEO SYNC IN) The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals.
Page 203 COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable 790-0187: 4-Pin 00 LEMO-to-Flying Lead 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC) 790-0428: RED Start/Stop Cable (14-Pin to 00B SYNC) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 204 RS232 TX NOTE: Mating connector is FGG.00.304.CLAD27Z. COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable 790-0187: 4-Pin 00 LEMO-to-Flying Lead 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 205 Data pair A+ BI_DB+ Data pair B+ BI_DB- Data pair B- Do not connect NOTE: Mating connector is FGG.0B.309.CLAD32Z. COMPATIBLE CABLES 790-0159: LEMO-to-CAT5E Ethernet Cable (9') 790-0163: Master/Slave Gig-E Cable (4') COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 206: Audio Ports
The 3.5mm stereo jack provides two (2) channels of audio for monitoring. For maximum quality, use high impedance headphones. HEADPHONE JACK SIGNAL DESCRIPTION DIRECTION LEFT Left channel audio RING RIGHT Right channel audio SLEEVE Camera ground COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 207: Power Ports
790-0165: XLR Power Cable (30") SSD MODULE CONNECTORS The connectors for the side SSD modules and the REAR SSD MODULE are described in the RED DSMC Media Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 208: Appendix C: Lens Mounts And Lenses
The ND filter also includes a linear polarizer and IR filter for improved image color and contrast. For more information, see the MOTION MOUNT Operation Guide, available at www.red.com/downloads. NOTE: HDRx is not available while the MOTION MOUNT is installed. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 209 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T REMOVE A LENS MOUNT NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only ®...
Page 210 R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T INSTALL A LENS MOUNT NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only in a dust-free environment.
Page 211: Lenses
DSMC PL MOUNT SUPPORTED LENSES The DSMC Mg PL Mount 2.0, DSMC TI PL Mount, and the RED MOTION MOUNT Ti PL are compatible with most standard PL mount cinema lenses and devices. For information about the compatibility of the RED...
Page 212 3. Remove the rear lens cap. 4. Align the red dot on the lens with the red dot on the DSMC Canon Mount and position the lens in the mount. 5. Turn the lens clockwise until it clicks into place.
Page 213 Canon EF 100mm f/2.8L Macro IS USM Canon EF 100-400mm f/4.5-5.6L IS Canon EF 135mm f/2.0L Canon EF 135mm f/2.8 Soft Focus Canon EF 180mm f/3.5L Macro Canon EF 200mm f/2.0L IS COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 214 Sigma APO Sigma APO 120-300mm f/2.8 EX DG OS HSM Sigma APO 180mm f/2.8 Macro EX DG OS HSM Tamron Tamron SP 10-24mm f/3.5-4.5 Di II Tamron SP 24-70mm f/2.8 Di VC USD COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 215 2. Press and hold the lens release button. While holding the lens release button, turn the lens clockwise until it stops and remove it from the DSMC mount. 3. Replace the rear lens cap and DSMC mount cap when items are not in use. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 216 Zeiss Distagon T* 21mm f/2.8 ZF.2 ® Zeiss Distagon T* 35mm f/1.4 ZF.2 Zeiss Planar Zeiss Planar T* 50mm f/1.4 ZF.2 Zeiss Planar T* 85mm f/1.4 ZF.2 1. Iris control only, no AF. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 217 SCARLET MYSTERIUM-X camera, you need to install a new OLPF ® frame (included with the DSMC AL Leica-M Mount). Leica-M lenses are incompatible with older models of the OLPF frame originally installed in the EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X. For more information, go to OLPF Frame Installation Instructions available at www.red.com/downloads.
Page 218: Appendix D: Default Key Functions
User 1 Press Magnify: Toggle User 2 Press Exposure Check: Toggle User 1+2 Press LCD: Toggle Lock EVF (BRAIN and Rear) User 1 Press Magnify: Toggle User 2 Press Exposure Check: Toggle COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 219 AF: Start Rocker + Press Iris: Open Rocker - Press Iris: Close Rotary Front CW Navigation: CW Rotary Front CCW Navigation: CCW Rotary Jog CW Navigation: CW Rotary Jog CCW Navigation: CCW COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 220 Rocker + Press Iris: Open Rocker - Press Iris: Closed PRO I/O GPIO GPI A LOW Record: Toggle GPI B Low Record: Toggle SW 1 Low Go to: Playback SW 2 Low Record: Toggle COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-J |...
Page 221: Preset Default Key Functions
R E D D S M C O P E R AT I O N G U I D E : E P I C / S C A R L E T PRESET DEFAULT KEY FUNCTIONS The following table describes default key functions for the Default Stills and Motion presets. NOTE: You cannot update factory-installed presets, which end with “(RED)”. PRESET DEFAULT KEY FUNCTIONS ITEM...
Page 222: Appendix E: Menu Map
MENU See the menu map on the following page. The menu map is applicable to the following cameras, except as noted throughout this guide: EPIC-M RED DRAGON™ (CARBON FIBER) EPIC-M RED DRAGON EPIC-X RED DRAGON SCARLET DRAGON...
Page 223 } Focus 1. Only available when a REDCAST™ Module is attached. } Iris 2. Not available on any BRAIN with a MONOCHROME or RED DRAGON MONOCHROME sensor. } Zoom 3. Only available when a MOTION MOUNT is attached. } Wireless 4.
Page 224 RED DIGITAL CINEMA COPYRIGHT© 2015 RED.COM, INC. All trademarks, trade names, logos, icons, images, written material, code and product names used in association with the accompanying product are the copyrights, trademarks or other intellectual property owned and controlled exclusively by RED.COM, INC.

This manual is also suitable for:

Scarlet Monochrome Red dragon V6.0 Mysterium-x Epic-m red dragon ... Show all

RED epic Operation Manual

Chapter 1: EPIC/SCARLET Introduction

Chapter 2: EPIC/SCARLET System Components

Chapter 3: EPIC/SCARLET Basic Operations

Chapter 4: Basic Menus and Controls

Chapter 5: Advanced Menus

Chapter 6: Record and Monitor Audio

Chapter 7: REDMOTE Operation

Chapter 8: Timecode, Genlock, Multi-Camera Setup

Chapter 9: Upgrade DSMC Firmware

Chapter 10: DSMC Maintenance

Chapter 11: Troubleshoot Your DSMC

Appendix A: Technical Specifications

Appendix B: Input/Output Connectors

Appendix C: Lens Mounts and Lenses

Appendix D: Default Key Functions

Appendix E: Menu Map

Quick Links

Related Manuals for RED epic

Summary of Contents for RED epic

This manual is also suitable for:

Table of Contents
