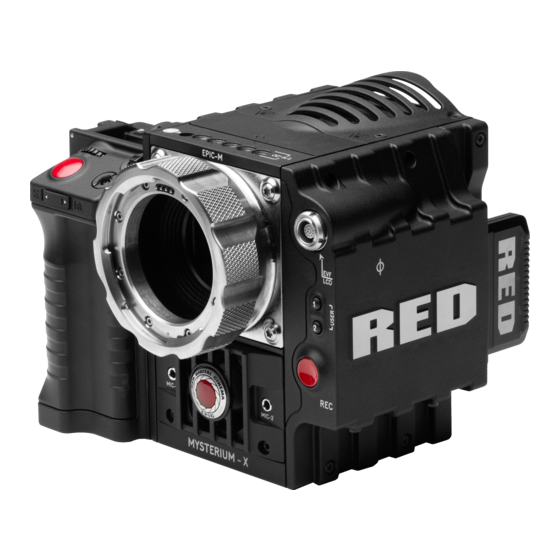

Page 1 EPIC/SCARLET O P E R AT I O N G U I D E E P I C S C A R L E T V 6 . 2 R E D D R A G O N M Y S T E R I U M - X M O N O C H R O M E R E D .
Page 2: Table Of Contents
Timecode Additional Resources Genlock BRAIN Master/Slave Operation Media Modules Set Up Stereo/3D Configuration REDMAG and RED MINI-MAG Systems Set Up a Camera Array Adaptor Modules Set Up Motion Control (MoCo) Power Modules Compatible Devices RED Batteries and Chargers Chapter 9: Upgrade Camera Firmware...
Page 3: Disclaimer
While thought to be accurate, the information in this docu- filiation to, is not associated with or sponsored by, and has no ex- ment is provided strictly “as is” and RED will not be held responsible press rights in third-party trademarks. Adobe and Adobe Premiere for issues arising from typographical errors or user’s interpretation...
Page 4: Compliance Statements
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est sus- RED declares that the radio equipment described in this document ceptible d’en compromettre le fonctionnement.Cet appareil numéri- comply with the following international standards.
Page 5 Restrictions d’utilisation - Zone géographique où les restrictions s’appliquent : France Pour la France métropolitaine 2.400 - 2.4835 GHz (Canaux 1 à 16) autorisé en usage intérieur 2.400 - 2.454 GHz (canaux 1 à 10) autorisé en usage extérieur COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 6: Safety Instructions
WARNING: Danger of explosion if an incor- rect battery is charged with the RED Char- DO NOT operate or store near any heat sources such as radia- ger or is used to power the camera and tors, heat registers, stoves, or any other apparatus that pro- accessories.
Page 7: Battery Storage And Handling
40% to 60%. If RED batteries. batteries will be stored for long periods of time, RED recommends Store the battery in a location where children cannot reach it. that you check the charge level at least once every six (6) months, If the battery leaks or gives off a bad odor, discontinue use and recharge batteries to a capacity level of 40% to 60%.
Page 8: Chapter 1: Camera Introduction
This guide is for EPIC and SCARLET only. This section introduces the imaging capabilities and advanced features of the EPIC and SCARLET system. For information about camera systems, see the following operation...
Page 9: Read Before You Shoot
E P I C / S C A R L E T O P E R AT I O N G U I D E READ BEFORE YOU SHOOT Read this operation guide carefully and in its entirety before assembling or operating your camera or other RED accessories. In addition to this document, RED offers the following operation guides for the camera system:...
Page 10: Post Production With Redcine-X Pro
Guide, available at www.red.com/downloads. RED TETHER, included in REDCINE-X PRO, allows you to record footage from your camera directly to a computer or an external drive. Using tethering bypasses the need to record to an SSD and offload to a computer later, saving you time.
Page 11: Additional Resources
E P I C / S C A R L E T O P E R AT I O N G U I D E ADDITIONAL RESOURCES The following resources offer additional information about RED, the camera system, and the RED community: RED.com: Check the official RED website for the latest information about RED products.
Page 12: Chapter 2: Camera System Components
Failure to do so may result in damage to the item or camera that is not covered under warranty. NOTE: Availability of components listed in this chapter is subject to change at any time. ADDITIONAL RESOURCES For more information on power and media, see the following guides, available at www.red.com/downloads: DSMC Power Operation Guide DSMC Media Operation Guide COPYRIGHT ©...
Page 13: Brain
Fully press and hold the PWR/REC key for two (2) seconds to turn on/off. When the camera is on, fully press and then release the PWR/REC key to toggle record start/stop. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 14: Media Modules
Rear SSD Module 720-0009 1. The DSMC 1.8" SSD Side Module (DRAGON) is only available with the purchase of a RED DRAGON sensor-based BRAIN. 2. Carbon fiber side SSD modules are only available with the purchase of a carbon fiber BRAIN.
Page 15: Side Ssd Modules
SIDE SSD MODULES RED MINI-MAG Side SSD Module Media modules attach to the camera to enable the use of RED MINI-MAG or REDMAG™ 1.8" SSD media. Both side SSD module systems have the same EVF/LCD LEMO connector, user keys, and REC button.
Page 16: Redmag And Red Mini-Mag Systems
RED MINI-MAG (1TB) 725-0081 v5.3.34 or later 1. The RED MINI-MAG 1TB can take up to 20 seconds to mount to a computer or a camera. RED offers the following REDMAG 1.8" SSDs and compatible RED STATIONS: ITEM PART NUMBER REDMAG 1.8"...
Page 17: Adaptor Modules
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module. WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor. WARNING: DO NOT use the EVF/LCD port if a Pro I/O Module is connected to the camera. RED offers the following adaptor modules: ITEM PART NUMBER...
Page 18 Power Out > +1 PWR. The last power output setting is saved until a firmware upgrade or a factory reset. +1 ADAPTOR MODULE ACCESSORIES For more information, as well as a full list of EVF/LCD cables and other accessory cables, visit www.red.com. ACCESSORY...
Page 19: Power Modules
Pro Battery Module (Quad) Power modules attach to a Module Adaptor or +1 Adaptor Module to provide the camera with flexible power options for REDVOLT , REDVOLT XL, and RED BRICK batteries. When used in combination with a DSMC AC ®...
Page 20: Red Batteries And Chargers
These batteries provide long-term mobile power and attach to the camera via a power module or other RED accessory, such as the DSMC Side Handle. RED chargers replenish lost capacity for REDVOLT, REDVOLT XL, and RED BRICK batteries.
Page 21 The REDCAST™ Module allows for live 4K streaming, enabling you to capture and view action in real-time. Compatible with both EPIC DRAGON and SCARLET DRAGON cameras, the REDCAST Module uses four (4) 3G-SDI output connections to broadcast 4K video at up to 60 frames per second. Five (5) 1/4-20 mounting holes are built into the top of the module, allowing for various mechanical peripherals to be attached.
Page 22: Displays And Electronic Viewfinders
LCD PRECAUTIONS WARNING: DO NOT use a RED display as a handle to lift or carry the camera. Damage to a RED display or other components of the camera system caused by using the display as a handle are not covered under warranty.
Page 23 E P I C / S C A R L E T O P E R AT I O N G U I D E WARNING: DO NOT use the threaded holes in the RED Touch LCD base to mount the display to the camera.
Page 24 1080p OLED micro-display, and improved color accuracy with 30-bit RGB color represenation. View and monitor your RED footage as it is intended with truer colors and deeper blacks in a larger field of view. Engineered with OBSOLESCENCE OBSOLETE in mind, the DSMC2 RED EVF (OLED) is perfect for use with ®...
Page 25 Mounting point for the DSMC2 RED EVF Mounting Plate (Top) DSMC2 RED EVF Fully coated with a > 32° field of view Modular Optical Block 1. Not visible. Shown with the DSMC2 RED EVF Mount attached. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 26: Lemo Adaptors
DSMC2 LEMO Adaptor B The DSMC2 LEMO Adaptor B enables you to use a DSMC2 RED Touch LCD with your existing EPIC or SCARLET camera. The DSMC2 LEMO Adaptor B converts the display signal from a pogo connection to a legacy EVF/ LCD LEMO port.
Page 27: Camera Control Modules
720-0028 ® 1. The RED Switchblade-M requires that your camera is on firmware v5.2.28 or later. Full functionality requires firmware v5.3 or later. 2. The REDLINK Bridge requires that your camera is on firmware v5.2.28 or later. DSMC SIDE HANDLE...
Page 28 RED SWITCHBLADE-M RED Switchblade-M The RED Switchblade-M is a low-profile and lightweight interface solution that mounts to the side of the camera. With a 1.7” OLED display and full navigation controls, the RED Switchblade-M grants full access to menus while optimizing the size and weight of y our camera configuration.
Page 29 REDLINK Development Kit and uses the REDLINK Command Protocol (RCP) to communicate information between the camera and your application. For more information, see the REDLINK Bridge Operation Guide, available at www.red.com/downloads. NOTE: The REDLINK Bridge requires camera firmware v5.2.8 or later. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 30: Lens Mounts
725-0014 1. For EPIC and SCARLET cameras, the DSMC Fan 2.0 (Bottom) and the DSMC Mg PL Mount 2.0 are not natively compatible with each other, since the fan grill prevents the lens mount locking ring from rotating. To use these devices together, remove the lower tabs from the locking ring using a T8 TORX driver.
Page 31: Interchangeable Olpfs
NOTE: The DSMC interchangeable OLPF system is only compatible with the DRAGON sensor. The DSMC interchangeable OLPF system is an upgrade to the optical low-pass filter (OLPF) in your EPIC DRAGON or SCARLET DRAGON. The modular mounting system enables you to remove and replace OLPFs to achieve optimal color reproduction in any lighting and environment.
Page 32: Chapter 3: Basic Operations
WARNING: While third-party batteries may be mechanically compatible with the camera system, the manufacturer is responsible for the performance and stability of third-party options, not RED. Damage to the camera system or third-party devices caused by using third-party power options is not covered under warranty. The camera may be unable to determine and display the voltage or remaining battery capacity of third-party power options.
Page 33: Power Consumption
The Power Status LED then illuminates green to confirm that the camera is turned on and ready to use. NOTE: The Power Status LED flashes red when there is less than five (5) minutes of operating time remaining. TURN OFF THE CAMERA Use one of the following methods to turn off the camera: Go to Menu >...
Page 34: Configure Your Camera
5. Install the appropriate screw at the bottom of the BRAIN side plate using a T10 TORX driver. DO NOT exceed 70 in-oz, or damage may occur. EPIC side plate screw: M3x0.5 x 8 mm ‒ SCARLET side plate screw: M3x0.5 x 5.5 mm ‒...
Page 35 3. Rotate the BRAIN side plate upwards to disengage the lip at the top of the side plate from the camera, and remove the BRAIN side plate. 4. Insert the lip on the RED Switchblade-M into the slot where the lip of the BRAIN side plate was installed. 5. Press the Switchblade-M down flush along the side of the camera.
Page 36 T20 TORX driver. DO NOT FULLY TIGHTEN. 5. Fully tighten the four (4) screws in a cross pattern (“X” pattern) using a T20 TORX driver. WARNING: DO NOT OVERTIGHTEN. Tighten screws COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 37 REQUIRED TOOL: T20 TORX driver 1. Turn off the camera. 2. Remove the REDMOTE, if attached. 3. Position the +1 Adaptor Module over the V-mount on the rear of the camera. Install the +1 Module Adaptor COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 38 2. Loosen the four (4) captive mounting screws in a cross pattern (“X” pattern) using a a T20 TORX driver. 3. Disconnect the HDMI connector from the camera. 4. Remove the +1 Adaptor Module from the camera. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 39 2. Use a T20 TORX driver to turn the lock on the adaptor module counter-clockwise to the Unlock position. 3. Rotate the module upwards and away from the adaptor module to disengage. 4. Remove the module. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 40 REQUIRED TOOL: T8 TORX driver The hood scoop on some EPIC-X and EPIC-M models extends beyond the rear plane of the camera. RED offers shorter hood scoops so that you can attach an LCD or other accessory to the mounting locations on the top of the +1 Adaptor Module.
Page 41: Interchangeable Olpf System
4. Remove the lens mount. Remove Lens Mount 5. Use a damp, lint-free cloth to gently wipe down the area around the lens mount and OLPF module. Remove as much dust and debris as possible. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 42 6. Remove the four (4) M2x0.4 x 4 mm OLPF module screws (P/N 600-0224) in a cross pattern (“X” pattern) using a T6 TORX driver. Remove OLPF module screws 7. Remove the OLPF module and place it in its protective case. Remove the OLPF module COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 43 12. Fully tighten the four (4) OLPF module screws in a cross pattern (“X” pattern) using a T6 TORX driver. DO NOT exceed 30 in-oz, or damage may occur. WARNING: DO NOT OVERTIGHTEN. 13. Replace the lens mount. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 44 IMPORTANT: Ensure the correct OLPF type is selected from the drop-down menu. Failure to select the correct OLPF type will affect color accuracy. For more information, go to “OLPF” on page 114. OLPF Type menu selection COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 45: Use A Tripod Or Monopod
WARNING: Ensure that the tripod, monopod, or support system is designed and rated to handle the weight of your camera configuration. RED is not responsible for any damage caused by using a tripod, monopod, mount, or support system that does not provide sufficient support.
Page 46: Video Monitor Outputs
“Cannot Use Touchscreen or DSMC2 Sidekick” on page 151. SIMULTANEOUS RECORD You can record simultaneously to an external recorder and a RED SSD. To record simultaneously, follow the instructions below: 1. Connect the camera to an external recorder with an HD-SDI or HDMI cable.
Page 47 1. Connect the camera to an external recorder with an HD-SDI or HDMI cable. 2. Ensure the SSD is ejected. 3. Go to Menu > Settings > Recording > Mode. 4. Select External from the Storage drop-down menu. 5. Begin recording. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 48: Chapter 4: Basic Menus And Controls
Live camera recording view, overlays, guides, and more. Go to “Live Action Area” on page Lower Status Row Critical camera parameters, record/playback modes, media and power status, and audio meter. Go to “Lower Status Row” on page COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 49: Upper Status Row (Basic Menu)
UPPER STATUS ROW (BASIC MENU) The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu. Upper Status Row...
Page 50 For example, select Advanced... in the Frame Rate menu to open Menu > Settings > Project > Frame Rate. For more information about Advanced Menus, go “Advanced Menus” on page Select “Advanced...” Button “Advanced...” Menu COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 51 For example, if you open the Frame Rate menu and select Edit List..., the camera lets you add or remove values to available frame rates. Select “Edit List...” Button “Edit List...” Menu COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 52 For more information, go to “R3D File Format and REDCODE” on page MYSTERIUM-X: Range is 3:1 to 18:1. Default is 8:1. RED DRAGON: Range is 2:1 to 22:1. Default is 8:1. For maximum available REDCODE values, see the DSMC Media Operation Guide at www.red.com/downloads.
Page 53: Live Action Area
Displays the focal length and focal distance when a DSMC PL mount is installed and a lens with the Cooke S4/i system (or equivalent) is attached. For more information, go to “Lens Tab” on page COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 54: Lower Status Row
“GEN Indicator” on page 57 Sync “SYNC Indicator” on page 57 RM: Indicates link to REDMOTE “REDMOTE Operation” on page 146 “LAN Indicator” on page 58 RIG: Indicates 3D rig metadata is present N/A COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 55: Camera Mode
Tools ‒ Media ‒ Power NOTE: For more information, go to “Swipe-Up Menu” on page Default Motion Preset (RED) NOTE: For more information, go to “Default Key Functions” on page 188. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 56 RAW Clip Meter Also known as “traffic lights”. Provides a visual representation of exposure and sensor data levels for Red, Green, and Blue channels; Circles (traffic lights) will light up when clipping occurs 1. The RAW Level Bars display the amount of pixels in the image that are noisy or clipped in relation to the total number of pixels in the image.
Page 57 Grey: The sensor sync mode is not set to genlock. Red: The sensor sync mode is set to genlock, but is not locked to a genlock signal. This may occur if genlock or sensor sync is lost while recording.
Page 58 When using a REDVOLT or REDVOLT XL battery, the power status displays the location of the power source (example: SH: DSMC Side Handle; RM: Rear Module) and the remaining battery capacity. When using a RED BRICK battery connected to DC IN, the power status displays BRICK and the remaining battery capacity.
Page 59: Navigation Controls
E P I C / S C A R L E T O P E R AT I O N G U I D E NAVIGATION CONTROLS This section describes basic controls for navigating the camera menus. TOUCHSCREEN NAVIGATION RED Touch displays offer intuitive menu control and four (4) programmable buttons. RED Touch 7.0" LCD RED TOUCH BUTTON DESCRIPTION...
Page 60 E P I C / S C A R L E T O P E R AT I O N G U I D E SWIPE-UP MENU The Swipe-Up Menu is available in the Lower Status Row on RED Touch displays and provides Swipe-Up Shortcuts for Motion mode, Stills mode, and Playback.
Page 61 E P I C / S C A R L E T O P E R AT I O N G U I D E NAVIGATION GROUP The Navigation Group is the primary control interface on the DSMC Side Handle, RED Switchblade-M, and REDMOTE...
Page 62: Dsmc Side Handle
1. Press User Keys 1 + 4 simultaneously to lock/unlock DSMC Side Handle buttons to prevent inadvertent menu changes. NOTE: DSMC Side Handle keys are programmable. For more information, go to “Key Mapping” on page COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 63 Shutter Speed Integration time or shutter angle Media Status Displays media location and remaining media capacity Power Status Indicates DC supply voltage or % of remaining battery capacity including current supply voltage COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 64 Mounting Thumbscrew Install and remove the RED Switchblade-M 1. Press User Keys A + D simultaneously to lock/unlock RED Switchblade-M buttons to prevent inadvertent menu changes. 2. MODE Button functionality requires camera firmware v5.3 or later. NOTE: RED Switchblade-M keys are programmable. For more information, go to “Key Mapping”...
Page 65 E P I C / S C A R L E T O P E R AT I O N G U I D E RED SWITCHBLADE-M DISPLAY The RED Switchblade-M OLED display provides basic camera parameters during operation. RED Switchblade-M OLED...
Page 66: Chapter 5: Advanced Menus
Tap the Menu button on the DSMC Side Handle or REDMOTE ® ® Tap the Menu icon on the touchscreen. Select the Advanced... button in any menu from the Upper Status Row. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 67: Settings Menu
Red: Overexposed; indicates sensor exposure levels that are clipping. Purple (underexposure) and red (overexposure) are based on RAW data and show areas that are clipping or close to clipping. The RGB settings (settings in the Look menu) DO NOT affect the Exposure indicators.
Page 68 16: Represents the top stop, and is broken up into 1/8th increments to show highlight roll-off. Each 1/8th stop is represented by a different shade of red, ranging from light red (less light) to dark red (most light). DISPLAY MODES Display mode options include: Magnify, RAW, and Horizon.
Page 69 The side-bars are green if the pitch is within +/– 1° of the calibrated zero position, otherwise they are red. The horizon-line is green if the roll is within +/– 1° of the calibrated zero position, otherwise it is red.
Page 70 ‒ Zebra 1: ‒ Video: Areas of the image exposed within the IRE range are indicated by red diagonal lines at –45°. Default is 98 to 100 IRE. ‒ RAW: Areas of the image exposed within the range of stops are indicated by solid red. Default is 15.80 to 16.00 stops.
Page 71 Enables the false color modes on the monitor. For more information, go to “Tools” on page UI FLIP/MIRROR NOTE: This setting is NOT available on the RED Touch 7.0" LCD. For more information, go to “Flip/Mirror” on page Flip the graphical user interface (GUI) vertically and mirror horizontally (not rotated). Use this setting when mounting a monitor upside down.
Page 72 Control > Monitor tab. Media: Overlays saved to an SSD can be found at On Media: \overlays:. NOTE: Overlays that end with (RED) are provided by default and cannot be edited, deleted, or exported. OVERLAY ACTIONS Create...: Create a new custom overlay using a blank overlay template in the Overlay Editor.
Page 73 If you remove an LCD when an EVF is attached, then the EVF becomes the control monitor. If you then remove the EVF when an HDMI monitor is attached, the HDMI monitor becomes the control monitor. If you then re- attach the LCD, then the LCD is the control monitor again. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 74 Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a dimmer display. Side UI LCD controls the brightness of the Switchblade-M LCD. NOTE: A rear LCD/EVF is an LCD/EVF that is plugged into any rear RED module, such as the +1 Adaptor Module or the Pro I/O Module.
Page 75 Total Time: Displays the total run-time left of battery power, taking into account all available batteries. VU METER Input: Displays levels of audio inputs (pre-mixer). (Default) Output: Displays levels of audio outputs (post-mixer). COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 76 E P I C / S C A R L E T O P E R AT I O N G U I D E HISTOGRAM NOTE: The Histogram setting is not accessible on cameras with Monochrome or RED DRAGON Monochrome sensors.
Page 77 To enable a test signal, select the test signal box. To exit, tap the touchscreen or press the Enter or Menu button on the DSMC Side Handle or REDMOTE. If needed, enable an Audio Tone. NOTE: Test signals are not recordable; they are provided to help align external HD-SDI and HDMI monitors. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 78 Exp Comp: Adjusts exposure compensation. Available range is –7.0 to 7.0. Default is 0.0. NOTE: Saturation is disabled on all Monochrome cameras. GAIN Adjust the Red channel, Blue channel, and Green channel individually. The range for each is 0.0 (none of the color) to 10.0, and the default for each is 1.0. ISO/FLUT Use the ISO/FLUT menu to adjust ISO, FLUT, and Shadow.
Page 79 CURVES Define the individual curves for the Luma, Red, Green, and Blue channels. You can only adjust one (1) curve at a time. Select Reset Curve to reset a curve. NOTE: Luma is the only channel on cameras with Monochrome or RED DRAGON Monochrome sensors.
Page 80 Neutral: The camera does not apply a graded gamma space to the monitor output. ‒ Graded: The camera applies a graded gamma space to the monitor output. The Video Path displays the video source and graded gamma space applied to the monitor. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 81 Alternatively, select Color Temperature > Advanced... from the Upper Status Row. 3. Select Auto White Balance. LGG (LIFT, GAMMA, GAIN) Adjust the lift, gamma, and gain for the Red channel, Blue channel, and Green channel individually. PROJECT The Project menu includes: Frame Rate, Exposure, Timecode, Slate, Format, and Sensor.
Page 83 MYSTERIUM-X: Slowest speed is 1/recording frame rate. For 24 fps, the slowest speed is 1/24 sec. RED DRAGON: Slowest speed is 1/8 sec, regardless of the recording frame rate. The fastest speed is 1/131,579 sec. Default is 1/48 sec.
Page 84 After selecting format settings, select Set Format. When you lower the resolution on a camera, only a portion of the sensor is used. The camera does not downscale from full frame when recording RAW. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 85 E P I C / S C A R L E T O P E R AT I O N G U I D E EPIC DRAGON FORMATS The table below describes the formats that are available for EPIC DRAGON. Default for EPIC DRAGON is 6K 2:1.
Page 86 2.5K 3:2 2400 1600 12.00 8.00 14.42 2.5K 4:3 2400 1800 12.00 9.00 15.00 2.5K 5:4 2400 1920 12.00 9.60 15.37 2.5K 4:1 2560 12.80 3.20 13.19 2.5K 8:1 2560 12.80 1.60 12.90 COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 87 1536 15.36 7.68 17.17 3K 2.4:1 (WS) 3072 1296 15.36 6.48 16.67 3K 16:9 (HD) 2880 1620 14.40 8.10 16.52 3K 6:5 1944 1620 9.72 8.10 12.65 2048 1080 10.24 5.40 11.58 COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 88 5.40 8.44 EPIC MYSTERIUM-X AND SCARLET MYSTERIUM-X FORMATS The table below describes the formats that are available for EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X. EPIC MYSTERIUM-X: Default is 5K 2:1. SCARLET MYSTERIUM-X: Default is 4K. The table below omits rows for the anamorphic formats, since the pixel dimensions for each anamorphic format and the corresponding non-anamorphic format are the same.
Page 89 ‒ 5K 1.22:1: Anamorphic 2x NOTE: Anamorphic de-squeeze on the RED PRO LCD 7.0" requires that your camera is on firmware v5.3 or later. DE-SQUEEZED RESOLUTION AND DE-SQUEEZED ASPECT RATIO When you enable anamorphic, both the actual format and the de-squeezed format display at the bottom of the Format menu.
Page 90 The Anamorphic tab lists the following anamorphic formats: EPIC DRAGON: Every format with a 6:5, 5:4, or 4:3 aspect ratio and a 1.3x or 2x anamorphic setting SCARLET DRAGON: 5K 6:5 2x EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X: 5K 1.22:1 2x...
Page 91 E P I C / S C A R L E T O P E R AT I O N G U I D E SENSOR (FLIP/MIRROR SCAN DIRECTION) NOTE: Flip/Mirror Scan Direction is only available on an EPIC DRAGON or SCARLET DRAGON. The Flip/Mirror Scan Direction feature rotates the image 180°, both on the monitor and in the recorded R3D file.
Page 92 Network: Stores footage to a network NOTE: HDRx is disabled in Network Storage mode. NOTE: The Network option is only available on an EPIC DRAGON or SCARLET DRAGON. External: Stores footage to an external device NOTE: In External storage, you can only select Continuous Record and Motion + Stills recording modes.
Page 93 NOTE: If using speed ramp mode, select an exposure that is valid for each ramp target frame rate. If the camera ramps to a frame rate that is incompatible with the current exposure, the exposure changes to the longest exposure possible for the frame rate. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 94 Pre Count: The camera captures the frame cache from the time preceding the marker. Post Count: The camera captures the remaining frame cache after the marker. The maximum frame counts are listed in the Available column, and are based on format and REDCODE. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 95 E P I C / S C A R L E T O P E R AT I O N G U I D E MULTI-SHOT NOTE: Multi-Shot mode is only available on an EPIC DRAGON or SCARLET DRAGON. NOTE: The camera does not sync timecode in Multi-Shot mode.
Page 96 Experiment with the exposure and frame processing settings to achieve the effect you want. NO FRAME PROCESSING Normal frame processing mode. The Frames to Process selection does not affect recording. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 97 Record Stop ‒ Mark Still Frame EVF Tally Light: Select this check box to enable the EVF Record Tally LED on the EVF to illuminate red when recording. SETUP The Setup menu includes: Keys, Date/Time, Communication, REDMOTE, GPIO/Sync, Fan Control, Lens, and Motor Control.
Page 98 SSD. The camera uses the 24-hour clock convention (military time). For example, enter 2:35 p.m. as 14:35:00. The date and time are saved when you close the Date/Time menu. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 99 Target ID text box) or a specific group (enter the name of the group in the Target ID text box). The camera/group name must match the name entered in the Name/Group field of the target device(s). COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 100 Wireless Channel: Select the communication channel for the wireless connection in the event of interference from other wireless devices. Camera MAC: View the camera MAC address. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 101 The Lower Status Row of the camera display has GEN and SYNC indicators, which change color based on the current genlock and sync statuses. For more information, go to “System Status Indicators” on page COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 102 NOTE: Maximum speeds are intended as target speeds only; actual fan speeds may be higher at times due to long recording times or high ambient temperatures. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 103 “Sensor Calibration” on page 105. EPIC DRAGON and SCARLET DRAGON: Target temperature range is 55°C to 70°C. A target temperature of 65°C works best across most environmental conditions. EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X: Target temperature range is 45°C to 70°C. Target temperatures above 50°C give noticeable fan noise improvements when compared to Auto mode.
Page 104 Status, and OLPF. SAVE A LOG FILE A LOG file is a detailed text file of the processes and operations performed by the camera. If you contact RED for support, you may be asked to send a LOG file. To save a LOG file, follow the instructions below: 1.
Page 105 105. For EPIC DRAGON or SCARLET DRAGON: After each firmware upgrade. For EPIC MYSTERIUM-X or SCARLET MYSTERIUM-X: After a firmware upgrade if instructed to do so in the firmware release notes. To check the temperature/exposure of the current calibration file, go to Menu > Settings > Maintenance > System Status >...
Page 106 7. For EPIC MYSTERIUM-X or SCARLET MYSTERIUM-X, select the exposure you want to use for the calibration from the drop-down menu. 8. For EPIC DRAGON or SCARLET DRAGON, select how many calibration maps you want to create from the Number of captures drop-down menu. You can create up to four (4) calibration maps at a time.
Page 107 NOTE: The camera may not be able to calibrate some electronic lenses. NOTE: The camera does not create calibration files for lenses that are already electronically supported. For a full list of supported lenses, go to “Lenses” on page 178. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 108 When you attach a lens that the camera does not recognize, the “Unsupported Lens Found” dialog box displays and asks if you want to calibrate the lens. Select Create Custom Lens Config. ‒ Go to Menu > Settings > Maintenance > Calibrate > Lens and select Create..COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 109 6. To calibrate the next focal length, follow the instructions below: A. Go to Menu > Settings > Maintenance > Calibrate > Lens. B. Select the calibration file name in the Camera list and select Edit..COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 110 DO NOT touch the lens, since that may cause incorrect calibration. 7. Repeat Step 6 for each focal length of the lens. The lens calibration file remains on the camera after system restores and firmware upgrades. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 111 3. You can perform any of the following actions: ‒ Add Cal @ xx...: Calibrate the current focal length; “xx” is the current focal length. ‒ Remove Cal: Remove the calibration for the selected focal length. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 112 : Export selected file from camera to SSD. All : Export all files from camera to SSD. : Import selected file from SSD to camera. All: Import all files from SSD to camera. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 113 Prompt for calibration of unsupported lenses: Select this check box to ensure that the “Unsupported Lens Found” dialog box displays every time the camera detects an unsupported electronic lens at boot-up. Deselect this check box to disable the “Unsupported Lens Found” dialog box. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 114 3. Select YES on the screen that asks you to confirm the action. The camera turns off. 4. Turn on the camera. NOTE: After performing a system restore, pair the REDMOTE to the camera again. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 115 Displays the current camera and project settings. Includes the following tabs: File Format, Recording, Quicktime, Look, Other. ATTACHED MODULES Lists the attached RED modules and lens mount. This screen does not list attached displays, media modules, and lenses. CAMERA INFO Displays the following camera information: Type: Camera type and sensor type.
Page 116 NOTE: The OLPF menu is only available on an EPIC DRAGON or SCARLET DRAGON. RED offers multiple optical low-pass filters (OLPFs) for EPIC DRAGON and SCARLET DRAGON. Each OLPF optimizes certain characteristics to take full advantage and control of each shooting environment. The camera checks the OLPF type, and adjusts the color scienced based on the selected OLPF.
Page 117 IMPORTANT: Ensure the correct OLPF type is selected from the drop-down menu. Failure to select the correct OLPF type will affect color accuracy. NOTE: If you are unsure which OLPF is installed, go to “Verify Installed OLPF” on page COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 118: Media Menu
DEVICE Format and eject (unmount) the SSD. To see information about the SSD in the camera, select More Info..CLIPS View and load clips on the SSD in thumbnail view. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 119: Playback Menu
Displays the metadata for the selected clip. PLAYBACK STATUS BAR Displays the progress of the clip during playback. When using the touchscreen, swipe your finger right and left to fast-forward and rewind the clip, respectively. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 121: Power Menu
Goes to the next marked frame, which displays as a red line in the Playback Status Bar. Disabled when there are no marked frames. 1. Thumbnail view is only available on an EPIC DRAGON or SCARLET DRAGON. On MYSTERIUM-X cameras, a logo appears instead of a thumbnail.
Page 122: Power Out
“Turn Off the Camera” on page 1. Go to Menu > Power. 2. Select Shutdown. The Shutting Down... message displays and the camera turns off. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 123: Hdrx Menu
A Track: This track shows the video with the selected aperture and exposure settings applied. ‒ ‒ X Track: This track shows the video with the additional stops applied. NOTE: For more information, see the High Dynamic Range Video with HDRx article, available at www.red.com/ learn/red-101/hdrx-high-dynamic-range-video. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 124: Focus Menu
Manual: When selected, all focus operations are manual. Confirm: Enables the Center or Spot focus target. This mode provides additional focus assistance by using red, yellow, and green color changes to the focus spot window. Inadequate subject illumination and/or contrast may interfere using Confirm mode.
Page 125 Scene has reflective highlights. Subject is backlit. Inadequate surface contrast/detail inside the window. NOTE: Use Edge mode for assistance in these conditions. For more information, go to “Edge” on page COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 126 1. Go to the main screen. 2. Press the Down Arrow in the Navigation Group. The Spot target line weight increases and the red cursor under Menu dims slightly. 3. Use the directional arrows to move the Spot target to the desired location.
Page 127 Bar target Target is yellow or green; vertical Target is red; vertical bar on the bar on the right side is filled up left side is almost empty Pie target Target is yellow or green; line Target is red;...
Page 128 (A, B, C, and D). For example, if rack point A is selected when you trigger the AF: Start action, the focus racks from point A to point B. ‒ Press a key that is mapped to racking to a specific rack point. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 129: Exposure Assist
The AE feature is different than traditional AE, in that RED AE only controls the amount of light that hits the sensor, either by adjusting aperture or exposure. RED AE analyzes RAW data before the ISO curve, and ensures that the sensor matches the user-selected brightness.
Page 130: Metering Mode
When the AE feature is able to match the sensor brightness, the overlay turns yellow. If the brightness fluctuates more than half of a stop, the overlay turns red. When AE is enabled, the “AE” indicator displays before the aperture and exposure parameters in the Upper Status Row.
Page 131: Presets Menu
You cannot update factory-installed presets, which end with “(RED)”. Clone...: Create a new preset using the selected preset as a template. Delete: Delete the selected preset. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 132 Create in-camera looks in the Menu > Presets > Camera Presets tab. Modify and manage the in-camera Looks the same way as any other presets created in the Camera Presets tab. For more information, go to “Camera Presets” on page 131. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 133: Auto Presets
On Enter Preview: The selected preset is applied every time the camera enters Preview mode, including at startup and when exiting Playback mode. On Enter Playback: The selected preset is applied every time the camera enters Playback mode. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 134: Chapter 6: Record And Monitor Audio
PRO I/O PRO I/O LINE 2 AES 3 PRO I/O AES 4 MONITOR LINE 1 4 CH TO 2 CH PEAK MIXER MONITOR LINE 2 POST-MIXER PRE-MIXER RECORDING PEAK METER PEAK METER COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 135: Set Up Audio
PRO I/O AES A/B (DIGITAL INPUT) The AES connector on the Pro I/O Module allows an input of 24-bit, 48 KHz AES digital audio. NOTE: Digital input audio is only available via the Pro I/O Module. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 136: Channel Modes
Select the Limiter check box to add a limiter to the analog input signal chain. Use the limiter in dynamic environments where external mixers are not practical for controlling signal strength. The limiter is only available with analog audio input. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 137: Audio Output Options
Select and mix the stereo channels in the Monitor Mix menu at Menu > Settings > Audio > Monitor Mix . To monitor audio via HDMI or HD-SDI, the third-party monitor must support audio. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 138: Control Headphone Volume (Brain)
NOTE: To link the volume for Left and Right, go to Menu > Settings > Audio > Channel and select the Volume Sliders check box. For more information, go to “Link” on page 136. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 139: Audio Meter (Vu Meter)
The Audio Meter shows the incoming audio signal when a source is selected, even if the channel is not recorded. When a channel is recorded, the channel indicator left of the Audio Meter is green. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 140: Audio During Playback
0 dBFS Audio is clipping (if signal exceeds –1 dBFS, the whole bar is red) NOTE: In the American broadcast and post production systems, –20 dBFS roughly corresponds to 0 VU and 4 dBu. In a digital system, dBu is an approximation; the correct unit for digital audio levels is dBFS.
Page 141: Chapter 7: Redmote Operation
50 ft. The REDMOTE supports 16 (0-15) wireless channels ranging from 2.4 GHz to 2.4835 GHz. The default channel is 0. IMPORTANT: To operate properly, upgrade both REDMOTE and camera firmware to the most recent version. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 142: Controls, Connectors, And Leds
Charges the internal battery; upgrade firmware For a full list of default user key actions for the REDMOTE, go to “Default Key Functions” on page 220. COMPATIBLE CABLE 790-0230: RED Mini-USB-to-USB cable ® COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 143 Use the Navigation Group to navigate the camera menus and change settings. Scroll Wheel: Select and adjust the value of a selected setting. Directional Keys (D-Pad): Navigate menus. ENTER: Press ENTER to confirm a setting or access the selected menu. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 144: Redmote Basics
Power/Lock Switch, a slight power draw remains and continues to drain the battery. RECORD START/STOP Start Record: Press and release the REC button. The Power/Recording LED illuminates red and the Timecode value on the LCD display changes to red text.
Page 145 RECONNECT THE REDMOTE AFTER SIGNAL LOSS On loss of wireless communication, the REDMOTE scans for the camera it was last paired with. If the REDMOTE is unable to reconnect after 30 seconds, the manual Scan menu opens. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 146 Green: The battery has a sufficient charge, or is fully charged. Yellow: The battery is somewhat depleted and should be recharged soon. Red: The battery is nearly discharged and should be recharged immediately. Wireless communication is at risk of being lost when the battery indicator is red.
Page 147: Redmote Lcd Display Menu
Audio input selection and levels Power Status Indicates DC supply voltage or % of remaining battery capacity including current supply voltage Camera ID Displays camera ID Wireless Status Displays signal strength when connected wirelessly COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 148: Upgrade Redmote Firmware
This section describes the REDMOTE firmware upgrade process using a Mac. INSTALL REDMOTE UPGRADE UTILITY (MAC) The REDMOTE Upgrade Utility enables you to upgrade REDMOTE firmware from your computer. 1. Download the REDMOTE Upgrade Utility, available at www.red.com/downloads. 2. Uncompress and open the zip file. 3. Open the REDMOTE_Upgrade_Utility folder.
Page 149 UPGRADE REDMOTE (WINDOWS) This section describes the REDMOTE firmware upgrade process using Windows. INSTALL REDMOTE UPGRADE UTILITY (WINDOWS) 1. Download the REDMOTE Upgrade Utility, available at www.red.com/downloads. 2. Uncompress and open the zip file. 3. Open the REDMOTE_Upgrade_Utility folder. 4. Open the Win folder.
Page 150 NOTE: If the REDMOTE does not connect to the Windows computer, download the REDMOTE Firmware file from www.red.com/downloads, open the read_me_redmote_vX.X.XX file, and follow the instructions to manually set up the network connection. For additional assistance, contact RED SUPPORT at https:// support.red.com.
Page 151: Chapter 8: Timecode, Genlock, Multi-Camera Setup
Edge: Edge timecode is continuous between clips, meaning that when recording starts, timecode begins. and when recording stops, timecode stops. By default, Edge timecode default begins at 01:00:00:00, but can be configured in the Media menu (Menu > Media > Device > Format). COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 152 5. Use the additional controls to sync TOD timecode with the RTC or set manually. Alternatively, go to Menu > Media > Device > Format Media... to set Edge timecode manually. The TC indicator in the Lower Status Row remains grey when internal timecode is enabled. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 153: Genlock
Generator locking (genlock) is a tri-level signal used to synchronize video and audio systems. Genlock is based on SMPTE 296M and 274M. There are two (2) important genlock sync modes: Monitor Sync Sensor Sync COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 154 E P I C / S C A R L E T O P E R AT I O N G U I D E NOTE: For genlock to function correctly, the cameras must be on the same firmware version, and must be using the same project time base and recording frame rate. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 155 Monitor Sync is achieved automatically when a genlock signal is provided that is compatible with the current monitor output frequency. When Monitor Sync is achieved, the GEN indicator in the Lower Status Row illuminates green. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 156 The GEN indicator in the Lower Status Row turns green when a compatible genlock signal is present and genlock is enabled. The SYNC indicator in the Lower Status Row turns green when Sensor Sync is achieved. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 157: Master/Slave Operation
3. On the Slave camera(s), follow the instructions below: A. Go to Menu > Settings > Setup > Communication. B. Type a name for the camera (Example: CAM B, RIGHT, SLAVE, etc) in the Name field. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 158 The LAN indicator in the Lower Status Row illuminates green. NOTE: Cameras can also be set up in Master/Master configuration. To set as Master/Master, set Target to All on both cameras, allowing either camera to make changes and control record start/stop. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 159 The only exception is the camera-generated wildcard characters. For example: Master: A001_C001_0503B6.R3D Slave: A001_C001_0503R7.R3D NOTE: Reel No, Cam ID, and Cam Pos can be set when formatting media at Menu > Media > Device. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 160: Set Up Stereo/3D Configuration
3D CONFIGURATION EXAMPLE The diagram below is an example of how to set up a 3D configuration. REQUIRED CABLES 790-0163: Master/Slave Gig-E Cable 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera) COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 161: Set Up A Camera Array
B. Connect the Ethernet connector to the router. 4. On all cameras, follow the instructions in “Set Reel Number, Camera ID, and Camera Position” on page to prepare media and camera settings. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 162 The diagram below is an example of how to set up a camera array. REQUIRED CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera) 790-0159: LEMO-To-CAT5E Ethernet Cable (9') (required per camera) COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 163: Set Up Motion Control (Moco)
CTRL port on the camera. 2. Go to Menu > Settings > Setup > GPIO/Sync > Sync. 3. Select MoCo from the Sensor Sync Mode drop-down menu. MoCo GPIO/Sync Settings 4. Select the BRAIN GPIO tab. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 164 7. Supply a pulse from the Motion Control device to sync the shutter to the rising edge of the sync input. For more information, refer to the manufacturer’s instructions for the Motion Control device. REQUIRED CABLE 790-0154: 3BNC-to-00 LEMO Sync Cable (required per SYNC and CTRL port used) COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 165: Compatible Devices
E P I C / S C A R L E T O P E R AT I O N G U I D E COMPATIBLE DEVICES The following timecode and genlock devices are compatible with the camera. Additional timecode devices may be compatible, but have not yet been tested by RED ® COMPATIBLE TIMECODE DEVICES...
Page 166: Chapter 9: Upgrade Camera Firmware
® NOTE: Preset, Look, and Custom Overlay files are preserved across upgrades of v6.2.23 or later. 1. Connect an SSD (RED MINI-MAG or RED STATION REDMAG 1.8") to your computer. NOTE: On Mac computers with REDCINE-X PRO installed, RED Watchdog mounts the SSD as Read-Only ®...
Page 167 13. After upgrading an EPIC DRAGON or SCARLET DRAGON, go to Menu > Settings > Maintenance > Calibrate > Sensor and black shade your camera using the Black Shading (default) option. For more information, go to “Calibration Capture (Black Shading)”...
Page 168: Chapter 10: Camera System Maintenance
WARNING: DO NOT attempt to modify, dismantle, or open the camera, lens, or other accessory as doing so may expose you to electric shock and serious injury. There are no user-serviceable parts inside. Alteration or repairs made to the camera, lens, or other accessory, except by a RED authorized service facility, voids the all warranties.
Page 169: Clean The Camera Sensor Or Olpf
DSMC2 RED EVF Modular Optical Block. Use an ionized rubber air bulb to clean the screen on the DSMC2 RED EVF. If there are still particles on the screen after using an air bulb, gently wipe the screen with a rolled-up, particulate-free, non-abrasive optical- grade wipe.
Page 170: Clean Lcd Screens
Cleaning the screen without removing solid particles increases the risk of scratching the screen. PROHIBITED LCD SCREEN CLEANERS DO NOT use any of the items listed below to clean LCD screens. These products have not been tested on RED products and may cause damage or streaking. Compressed air...
Page 171: Adjust Back Focus
E P I C / S C A R L E T O P E R AT I O N G U I D E ADJUST BACK FOCUS Adjust back focus by using the RED Focus or a focus chart. For more information about using the RED Focus, see the RED Focus Operation Guide, available at www.red.com/downloads.
Page 172: Chapter 11: Troubleshoot Your Camera
SSDs. 10. If any errors occur, save a log file and submit a Technical Support request at https://support.red.com. NOTE: Problems or dropped frames found during the stress test display as “Errors” in the bottom of the user interface.
Page 173: Preset Could Not Be Applied
Upgrade your camera firmware. For more information, go to “Upgrade Camera Firmware” on page 143. Reset your camera’s default settings. For more information, go to “Reset Defaults” on page 113. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 174: Camera Does Not Recognize Lens
Ensure display does not show the message “REDLINK Upgrade Required”. CANNOT SEE MENUS ON LCD TOUCHSCREEN SYMPTOM The LCD touchscreen does not display menus. POTENTIAL RESOLUTION Double-tap the LCD touchscreen to exit Clean mode. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 175 ® the DSMC Side Handle: A. Connect an SSD (RED MINI-MAG or RED STATION REDMAG 1.8") to your computer. ® NOTE: On Mac computers with REDCINE-X PRO installed, RED Watchdog mounts the SSD as Read- ®...
Page 176 ERROR 0X00000020 SYMPTOM The display shows a message with the phrase “Error 0x00000020. Please save log and send to RED support.” POTENTIAL RESOLUTIONS Perform a secure format of the SSD. For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads.
Page 177: Image Appears Grainy
“Perform a Hard Restore” on page 177. Update the camera firmware to the latest release build available for download at www.red.com/downloads. PERFORM A HARD RESTORE A common way to resolve camera firmware issues is to perform a Hard Restore. A Hard Restore functions like a System Restore in that it changes all settings to the factory default values.
Page 178: Incorrect Color Temperature
The image has a faint vertical rainbow artifact. EXPLANATION When using a polarizer with an EPIC DRAGON or SCARLET DRAGON (with either a Skin Tone-Highlight or a Low Light Optimized OLPF), a faint vertical rainbow artifact might appear on the image. This artifact is not exclusive to EPIC DRAGON or SCARLET DRAGON cameras, and can occur on other cameras depending upon camera orientation and direction of the polarized light.
Page 179 E P I C / S C A R L E T O P E R AT I O N G U I D E TIMECODE OR GENLOCK DOES NOT FUNCTION SYMPTOM The SYNC, GEN, and/or TC light is red, yellow, or greyed out. POTENTIAL RESOLUTIONS Ensure your timecode or genlock device is compatible. For more information, go to “Compatible Devices”...
Page 180 If you determine that the camera sensor has a hot pixel, use REDCINE-X PRO to remove the hot pixel until the issue gets resolved. For more information, see the REDCINE-X PRO Operation Guide, available at www. red.com/downloads. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 181: Appendix A: Technical Specifications
Max Data Rates Up to 200 MB/s using RED MINI-MAG (512GB and 1TB) ® Up to 170 MB/s using RED MINI-MAG (120GB and 240GB) or REDMAG™ 1.8" Max Frame Rates 75 fps at 6K Full Frame (6144 x 3160) and 13:1 REDCODE 100 fps at 6K 2.4:1 (6144 x 2592) and 14:1 REDCODE...
Page 182 ™ ® compatible with DSMC2 LEMO Adaptor B and LCD/EVF cable. RED Touch 9.0" LCD, RED Touch 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, RED Touch 7.0" LCD, DSMC2 RED EVF (OLED), BOMB EVF (OLED, and BOMB EVF (LCOS) compatible with LCD/ ®...
Page 183: Scarlet Dragon
DSMC2 RED Touch 7.0" LCD and DSMC2 RED Touch 4.7" LCD compatible with DSMC2 LEMO Adaptor B and LCD/EVF cable. RED Touch 9.0" LCD, RED TOUCH 7.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, RED Touch 7.0" LCD, BOMB EVF (OLED), and BOMB EVF (LCOS) compatible with LCD/EVF cable.
Page 184 SPECIFICATION DESCRIPTION REDCINE-X PRO Delivery Formats 4K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 1080p RGB 4:2:2, 720p 4:2:2 : QuickTime, JPEG, Avid AAF, MXF 1080p 4.2.0, 720p 4:2:0 : H.264, .MP4...
Page 185: Epic Mysterium-X
Touch 7.0" LCD, DSMC2 RED Touch 4.7" LCD, and DSMC2 ® RED EVF (OLED) with DSMC2 LEMO Adaptor B. RED Touch 9.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, RED Touch 7.0" LCD, BOMB EVF (LCOS), and BOMB EVF (OLED) compatible with ®...
Page 186: Scarlet Mysterium-X
DSMC2 RED Touch 7.0" LCD, DSMC2 RED Touch 4.7" LCD, and DSMC2 RED EVF (OLED) with DSMC2 LEMO Adaptor B. RED Touch 9.0" LCD, RED Touch 5.0" LCD, RED PRO 7" LCD, RED Touch 7.0" LCD, BOMB EVF (LCOS), and BOMB EVF (OLED) compatible with LCD/ EVF cable.
Page 187: Brain Dimensions
E P I C / S C A R L E T O P E R AT I O N G U I D E BRAIN DIMENSIONS NOTE: Dimensions are shown in mm. The optical axis height of all EPIC/SCARLET cameras is 95.90 mm. EPIC BRAIN DIMENSIONS FRONT VIEW 98.00...
Page 197: Appendix B: Input/Output Connectors
This appendix provides pinout information for the input/output connectors on the camera. NOTE: When connecting a cable to a connector, align the key and red marker on the cable connector with the corresponding key and marker on the device connection.
Page 198: Record/Monitor Out Ports
If you have a drop frame project time base (such as 23.98), you can select only drop frame frequencies. 75 OHM BNC CONNECTOR SIGNAL DESCRIPTION DIRECTION Center 3G-SDI SMPTE ST 424 Shield/Screen GROUND Camera ground COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 199: Communication Ports
1. Ensure you select a frequency supported by your monitor. 2. The HDMI output is progressive scan (p); it does not support progressive segmented frame (PsF) or interlaced (i) scan formats. COMPATIBLE CABLE 790-0331: RED HDMI Cable (5') COMMUNICATION PORTS SYNC (VIDEO SYNC IN) The 4-pin 00B LEMO SYNC connector accepts timecode, genlock, and General Purpose Input (GPI) signals.
Page 200 COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable 790-0187: 4-Pin 00 LEMO-to-Flying Lead 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC) 790-0428: RED Start/Stop Cable (14-Pin to 00B SYNC) COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 201 RS232 TX NOTE: Mating connector is FGG.00.304.CLAD. COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable 790-0187: 4-Pin 00 LEMO-to-Flying Lead 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC) COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 202 Data pair A+ BI_DB+ Data pair B+ BI_DB- Data pair B- Do not connect NOTE: Mating connector is FGG.0B.309.CLAD. COMPATIBLE CABLES 790-0159: LEMO-to-CAT5E Ethernet Cable (9') 790-0163: Master/Slave Gig-E Cable (4') COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 203: Audio Ports
The 3.5mm stereo jack provides two (2) channels of audio for monitoring. For maximum quality, use high impedance headphones. HEADPHONE JACK SIGNAL DESCRIPTION DIRECTION LEFT Left channel audio RING RIGHT Right channel audio SLEEVE Camera ground COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 204: Power Ports
790-0165: XLR Power Cable (30") SSD MODULE CONNECTORS The connectors for the side SSD modules and the Rear SSD Module are described in the DSMC Media Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 205: Appendix C: Lens Mounts And Lenses
Guide, available at www.red.com/downloads. NOTE: HDRx is not available while the MOTION MOUNT is installed. REMOVE A LENS MOUNT NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only ® in a dust-free environment.
Page 206 NOTE: The DSMC Mg PL Mount 2.0 has captive screws that are not removable from the mount. NOTE: Screw removal may require a large handle T20 TORX driver and additional leverage. Remove the Lens Mount Screws 6. Remove the lens mount from the camera. Remove the Lens Mount COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 207 NOTE: For EPIC and SCARLET cameras, the DSMC Fan 2.0 (Bottom) and the DSMC Mg PL Mount 2.0 are not natively compatible with each other, since the fan grill prevents the lens mount locking ring from rotating.
Page 208: Lenses
1. Rotate the locking ring counter-clockwise to release the PL lens. 2. Remove the PL lens from the camera PL mount. 3. Replace the rear lens cap and camera mount cap when the lens is not in use. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 209 3. Remove the rear lens cap. 4. Align the red dot on the lens with the red dot on the DSMC Canon Mount and position the lens in the mount. 5. Turn the lens clockwise until it clicks into place.
Page 210 Canon EF 70-300mm f/4-5.6L IS USM Canon EF 85mm f/1.2L II Canon EF 85mm f/1.8 USM Canon EF 100mm f/2.0 USM Canon EF 100mm f/2.8L Macro IS USM Canon EF 100-400mm f/4.5-5.6L IS COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 211 Sigma 24mm f/1.8 EX DG ASP Macro AF Sigma 24-70mm f/2.8 IF EX DG HSM Sigma 28mm f/1.8 EX DG ASP Macro AF Sigma 50mm f/1.4 EX DG HSM Sigma 85mm f/1.4 EX DG HSM COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 212 2. Press and hold the lens release button. While holding the lens release button, turn the lens clockwise until it stops and remove it from the camera mount. 3. Replace the rear lens cap and camera mount cap when items are not in use. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 213 Zeiss Distagon T* 21mm f/2.8 ZF.2 Zeiss Distagon T* 35mm f/1.4 ZF.2 Zeiss Planar Zeiss Planar T* 50mm f/1.4 ZF.2 Zeiss Planar T* 85mm f/1.4 ZF.2 1. Iris control only, no AF. COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 214 SCARLET MYSTERIUM-X camera, you need to install a new OLPF ® frame (included with the DSMC AL Leica-M Mount). Leica-M lenses are incompatible with older models of the OLPF frame originally installed in the EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X. For more information, go to OLPF Frame Installation Instructions available at www.red.com/downloads.
Page 215: Appendix D: Default Key Functions
User 1 Press Magnify: Toggle User 2 Press Exposure Check: Toggle User 1+2 Press LCD: Toggle Lock EVF (Primary and User 1 Press Magnify: Toggle Secondary) User 2 Press Exposure Check: Toggle COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 216 AF: Start Rocker + Press Iris: Open Rocker - Press Iris: Close Rotary Front CW Navigation: CW Rotary Front CCW Navigation: CCW Rotary Jog CW Navigation: CW Rotary Jog CCW Navigation: CCW COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 217 Rocker + Press Iris: Open Rocker - Press Iris: Closed PRO I/O GPIO GPI A LOW Record: Toggle GPI B Low Record: Toggle SW 1 Low Go to: Playback SW 2 Low Record: Toggle COPYRIGHT © 2016 RED.COM, INC 955-0020_V6.2, REV-J |...
Page 218: Preset Default Key Functions
E P I C / S C A R L E T O P E R AT I O N G U I D E PRESET DEFAULT KEY FUNCTIONS The following table describes default key functions for the Default Stills and Motion presets. NOTE: You cannot update factory-installed presets, which end with “(RED)”. PRESET DEFAULT KEY FUNCTIONS ITEM...
Page 219 MENU See the menu map on the following page. The menu map is applicable to the following cameras, except as noted throughout this guide: EPIC-M RED DRAGON™ (Carbon Fiber) EPIC-M RED DRAGON EPIC-X RED DRAGON SCARLET DRAGON...
Page 220 1. Only available when a REDCAST™ Module is attached. } Wireless 2. Not available on any BRAIN with a Monochrome or RED DRAGON Monochrome sensor. 3. Only available when a MOTION MOUNT is attached. 4. Only available when a RED 3-Axis Lens Control System is attached.
Page 221 RED DIGITAL CINEMA COPYRIGHT© 2016 RED.COM, INC. All trademarks, trade names, logos, icons, images, written material, code and product names used in association with the accompanying product are the copyrights, trademarks or other intellectual property owned and controlled exclusively by RED.COM, INC.
