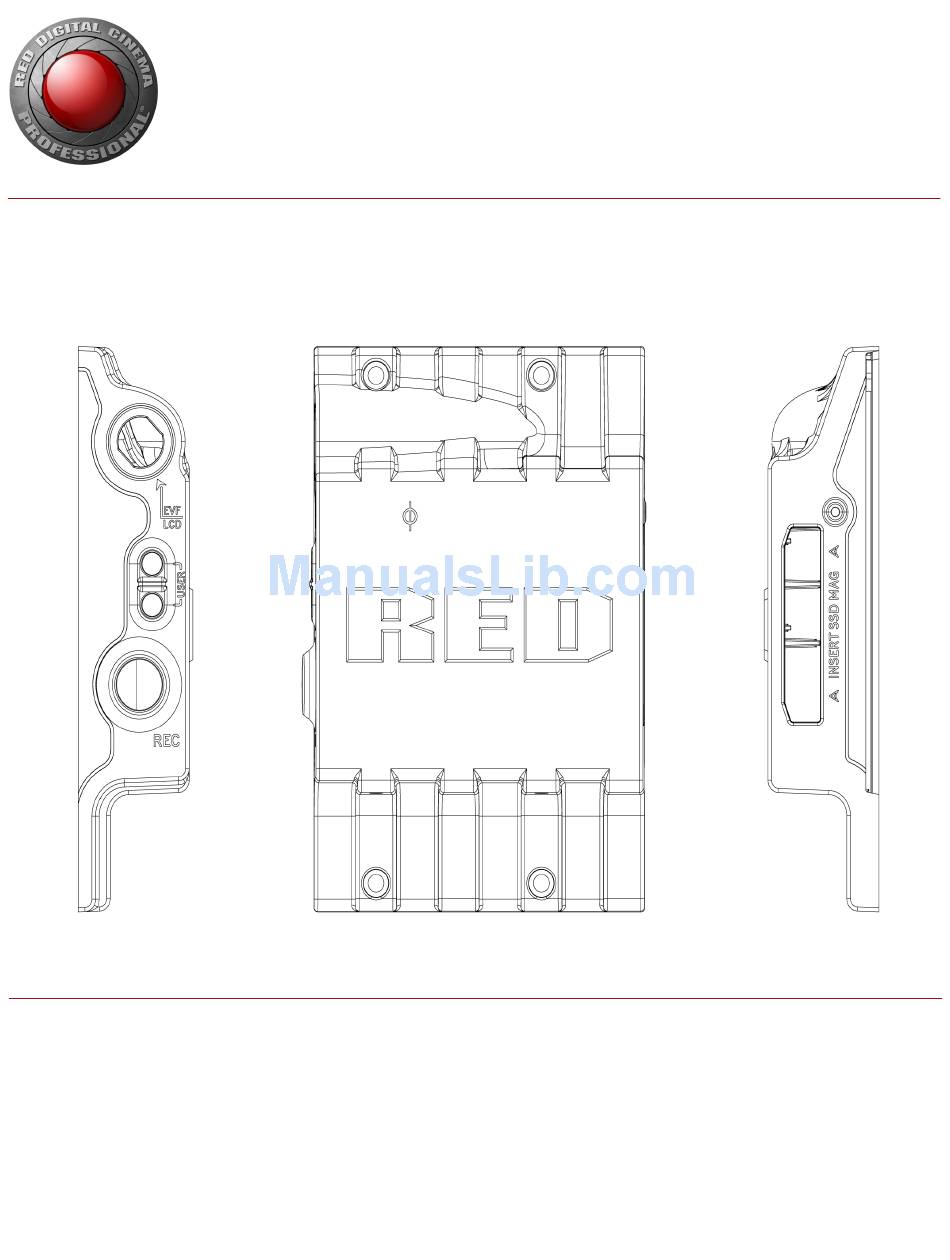

  • Page 1 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG SYSTEM REDMAG 1.8" SSD SYSTEM RED.COM...

  • Page 2: Table Of Contents

    RED EPIC-W 8K S35 Metadata WEAPON 8K S35 Media Capacity Remaining Status 6 OffloadMedia Connect a RED MINI-MAG to your Computer 52 Connect a REDMAG 1.8" SSD to Your Computer Offload Data From Media to Your Computer 56 RED Watchdog...

  • Page 3: Disclaimer

    Class B digital information. While thought to be accurate, the information in this device, pursuant to part 15 of the FCC Rules. document is provided strictly “as is” and RED will not be held These limits...

  • Page 4: Safety Instructions

    If fluids or foreign objects get inside any of the media modules or EN 61000-3-2 (IEC610000-3-2) – Power Line Harmonics RED STATIONs, disconnect the power source immediately and EN 61000-3-3 (IEC610000) – Power Line Flicker file a support ticket on https://support.red.com.
  • Page 5 Always use the original packaging or similarly structured packaging for transportation. USE AT YOUR OWN RISK. RED is not responsible for lost data, corrupted data, or damaged SSDs while using any of the SSD media modules or RED STATIONs.

  • Page 6: Media Overview

    NOTE: Third-party SSDs are not compatible with the DSMC system. RED MINI-MAG SYSTEM This system centers around the RED MINI-MAG, which is the fastest, smallest, and most powerful media option for ® your RED camera. Compared to their predecessor, the REDMAG 1.8", RED MINI-MAGs have faster read/write...

  • Page 7: Mixing Carbon Fiber And Aluminum Components

    SSD modules are optimized for use with the standard aluminum camera. Using a carbon fiber media module with an aluminum EPIC/SCARLET or using an aluminum side SSD module with a carbon fiber EPIC/SCARLET may lead to an unstable connection between the camera and the module, which could affect data integrity.

  • Page 8: Red Mini-Mag System

    , and RED EPIC-W NOTE: If your EPIC/SCARLET is on an earlier firmware than what a RED MINI-MAG requires, you can use a RED MINI- MAG to upgrade to a compatible firmware. While you can use a RED MINI-MAG to downgrade firmware versions, the EPIC/SCARLET will not be fully functional with the RED MINI-MAG Side SSD Module installed.
  • Page 9  1. To see the Model number, go to Menu > Media > Device.  2. The RED MINI-MAG 1TB can take up to 20 seconds to mount to a computer or a camera. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...

  • Page 10: Red Mini-Mag Modules

    DO NOT loosen these screws. Loosening these screws DOES NOT provide extra clearance for the SSD. WARNING: The red metal heat sink under the SSD slot on the Carbon Fiber RED MINI-MAG Side SSD Module may get hot during long-term operation.
  • Page 11 RED MINI-MAG SIDE SSD MODULE CONNECTORS This section describes the connectors for all of the RED MINI-MAG modules. Each RED MINI-MAG module mounts to the left side of the EPIC/SCARLET. The rear face of this module features a slot for inserting a RED MINI-MAG.
  • Page 12 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG SIDE SSD MODULE LED This section describes the LED for all of the RED MINI-MAG modules. COLOR/FLASHING DESCRIPTION Media Status No media present Green Preview; media mouunted with > 10% of media space available  ...

  • Page 13: Red Station Red Mini-Mag

    RED STATION REDMAG 1.8" and fits easier into cases for storage. Figure: RED STATION RED MINI-MAG – ESATA/USB 3.0 RED STATION RED MINI-MAG – ESATA/USB 3.0 INCLUDED COMPONENTS The items listed in the table below ship with the RED STATION RED MINI-MAG – ESATA/USB 3.0. ITEM PART NUMBER RED STATION RED MINI-MAG –...
  • Page 14 750-0081 (1TB)  1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION RED MINI-MAG – ESATA/USB 3.0 through eSATA. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC 9 5 5 - 0 0 4 7 , R EV - AH   |   1 4...
  • Page 15 Figure: RED STATION RED MINI-MAG – ESATA/USB 3.0 COLOR/FLASHING DESCRIPTION Power Indicator LED Off No power present; RED STATION RED MINI-MAG – ESATA/USB 3.0 off Power present; RED STATION RED MINI-MAG – ESATA/USB 3.0 on Red flashing (fast) Accessing media C O PYR I G HT ©...
  • Page 16 The RED STATION RED MINI-MAG – USB 3.1 is designed exclusively for offloading data from RED MINI-MAG media to your workstation. Connect to your computer via SuperSpeed USB 10 Gbps for blazing fast transfer speeds. A sleek, compact design takes up less space than the RED STATION RED MINI-MAG – ESATA/USB 3.0 and fits easily into cases.
  • Page 17 Figure: RED STATION RED MINI-MAG – USB 3.1 COLOR/FLASHING DESCRIPTION Power Indicator LED No power present; RED STATION RED MINI-MAG – USB 3.1 off Power present; RED STATION RED MINI-MAG – USB 3.1 on Red flashing (fast) Accessing media C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...

  • Page 18: Redmag 1.8" Ssd System

     1. The REDMAG 1.8" SSD (240GB) requires that your camera is on firmware v5.1.44 or later.  2. The REDMAG 1.8" SSD (512GB) is no longer available for purchase at www.red.com, but is still supported by RED. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC 9 5 5 - 0 0 4 7 , R EV - AH   |...

  • Page 19: Ssd Modules

    DO NOT loosen these screws. Loosening these screws DOES NOT provide extra clearance for the SSD. WARNING: The red metal heat sink under the SSD slot on the Carbon Fiber DSMC 1.8" SSD Side Module (DRAGON) may get hot during long-term operation.
  • Page 20 RED DSMC MEDIA OPERATION GUIDE DSMC 1.8" SSD SIDE MODULE INCLUDED COMPONENTS The items listed in the table below ship with the DSMC 1.8" SSD Side Module. ITEM PART NUMBER DSMC 1.8" SSD Side Module 720-0013 Four (4) M3x0.5 x 6 mm Cap Screws DSMC 1.8"...
  • Page 21 This section describes the connectors for all of the DSMC 1.8" SSD Side Modules. The DSMC 1.8" SSD Side Module mounts to the left side of the EPIC/SCARLET. The rear face of this module features a slot for inserting a REDMAG 1.8" SSD.
  • Page 22 RED DSMC MEDIA OPERATION GUIDE DSMC 1.8" SSD SIDE MODULE LED This section describes the LED for all of the DSMC 1.8" SSD Side Modules. Figure: DSMC 1.8" SSD Side Module (Rear) COLOR/FLASHING DESCRIPTION Media Indicator LED No media present  ...
  • Page 23 RED DSMC MEDIA OPERATION GUIDE REAR SSD MODULE The Rear SSD Module secures onto the back of a Module Adaptor or a +1 Adaptor Module to serve as a rear location for recording to a REDMAG 1.8" SSD. In the case that you are using cables or configurations that make it difficult to access your DSMC 1.8"...
  • Page 24   ® REDMOTE 770-0006 1/4-20 mounting Five (5) 1/4-20 mounting holes for holes (top) mounting the RED TOUCH or other RED products ® Lock (bottom) Use T20 TORX driver to lock (CW) T20 TORX driver and unlock (CCW) the module REDMAG 1.8"...

  • Page 25: Red Stations

    RED STATION REDMAG 1.8" (Mini)–USB 3.0 RED STATION REDMAG 2.5" RED STATION Base (provides power to RED STATIONs; is not a REDMAG 1.8" SSD reader C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 26 RED DSMC MEDIA OPERATION GUIDE RED STATION REDMAG 1.8" The RED STATION REDMAG 1.8" reads and offloads data from your REDMAG 1.8" SSD to your hard drive when ® connected to your computer. The RED STATION REDMAG 1.8" connects via eSATA, FireWire 800, or USB 2.0 to...
  • Page 27 NUMBERS POWER Both connectors accept power from any RED RED STATION 790-0249 STATION that is already connected to a RED DC Power STATION Base; can also output power to another Coupler (2") RED STATION in a stand-alone configuration or when powered by a RED STATION Base eSATA Connector...
  • Page 28 REDMAG 1.8" 750-0026 SSD (256GB) REDMAG 1.8" 750-0037 SSD (512GB)  1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION REDMAG 1.8" through eSATA. RED STATION REDMAG 1.8" LEDS Figure: RED STATION REDMAG 1.8" COLOR/FLASHING DESCRIPTION Power Indicator LED...
  • Page 29 RED STATION REDMAG 1.8" (MINI) The RED STATION REDMAG 1.8" (Mini) reads and offloads data from your REDMAG 1.8" SSD to your hard drive when connected to your computer. Compact form factor makes the RED STATION REDMAG 1.8" (Mini) perfect for offloading your REDMAG 1.8"...
  • Page 30 RED STATION USB to DC Power Cable (24") 790-0316 RED STATION REDMAG 1.8" (MINI)-USB 3.0 INCLUDED COMPONENTS The items listed in the table below ship with the RED STATION REDMAG 1.8" (Mini)–USB 3.0. ITEM PART NUMBER RED STATION REDMAG 1.8"–USB 3.0 750-0036 RED STATION USB 3.0 Cable (24")
  • Page 31 RED DSMC MEDIA OPERATION GUIDE Figure: RED STATION REDMAG 1.8" (MINI)-USB 3.0 (Rear) and RED STATION REDMAG 1.8" (MINI)-eSATA (Rear) CONNECTOR DESCRIPTION COMPATIBLE PARTS PART NUMBERS USB 3.0 slot Connect to a computer via a USB RED STATION USB 3.0 Cable (24") 790-0314 3.0 connection (only on P/N 750-...
  • Page 32 Accessing media RED STATION REDMAG 2.5" You can use the RED STATION REDMAG 2.5" to offload content from your REDMAG 1.8" SSD to a third-party external 2.5" SSD or spinning hard drive. RED does not provide any 2.5" media or drives.
  • Page 33 RED DSMC MEDIA OPERATION GUIDE RED STATION REDMAG 2.5" INCLUDED COMPONENTS The items listed in the table below ship with the RED STATION REDMAG 2.5". ITEM PART NUMBER RED STATION REDMAG 2.5" 750-0007 RED STATION Rubber Feet Set 790-0293 RED STATION eSATA Cable (24") 790-0250 RED STATION FW800 Cable (2")
  • Page 34 (front) or spinning hard drive  1. Only Silicon Image or HighPoint SATA cards connect to the RED STATION REDMAG 2.5" through eSATA. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 35 1.8" (Mini) and RED STATION RED MINI-MAG – ESATA/USB 3.0), eliminating the need to have AC power adaptors going to each module. This product is a great solution for those who are managing multiple RED STATIONs and want to reduce cable clutter.
  • Page 36 RED DSMC MEDIA OPERATION GUIDE RED STATION BASE INCLUDED COMPONENTS The items listed in the table below ship with the RED STATION Base. ITEM PART NUMBER RED STATION Base 750-0004 RED STATION Base AC POWER ADAPTOR 790-0308 RED STATION DC Power Coupler (2") 790-0249 Figure: RED STATION Base (Rear)

  • Page 37: Install Epic/Scarlet Media Modules

    CARBON FIBER SIDE SSD MODULE INSTALLATION NOTES Attach the carbon fiber side SSD modules to the carbon fiber EPIC/SCARLET using only the red (colored) M3x0.5 x 6 mm cap screws that come with the carbon fiber EPIC/SCARLET. The red (colored) screws are made of a different material than the black screws that come with the standard aluminum camera, and are designed to engage specifically with the lightweight panels of the carbon fiber EPIC/SCARLET.
  • Page 38 Aluminum Components" on page 7. REMOVE EPIC/SCARLET SIDE MEDIA MODULES Follow the instructions in this section to remove any of the following modules from an EPIC or SCARLET camera: RED MINI-MAG Side SSD Module Carbon Fiber RED MINI-MAG Side SSD Module DSMC 1.8"...
  • Page 39  3. Remove the module from the camera.  4. Inspect the connections and pins on the camera and ensure that they are clean and undamaged. NOTE: DO NOT remove the two (2) red and black tamper-proof stickers. Figure: Inspect Connections C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...
  • Page 40 RED DSMC MEDIA OPERATION GUIDE ATTACH EPIC/SCARLET SIDE MEDIA MODULES Follow the instructions in this section to attach any of the following modules to an EPIC or SCARLET camera: RED MINI-MAG Side SSD Module Carbon Fiber RED MINI-MAG Side SSD Module DSMC 1.8"...

  • Page 41: Install The Rear Ssd Module

    DSMC 1.8" SSD Side Module: Install the REDMAG 1.8" SSD. NOTE: DO NOT attempt to insert the RED MINI-MAG in any DSMC 1.8" SSD Side Module, and do not attempt to insert the REDMAG 1.8" SSD in any RED MINI-MAG module.

  • Page 42: Eject And Format Media

    Touchscreen LCD (including REDMOTE): Go to Menu > Media > Device > Eject Media. DSMC Side Handle (EPIC/SCARLET): Press User Key 7 (lowest of the system keys). The default function for this key is Eject Media; however, you can remap this key.

  • Page 43: Format Media

    RED DSMC MEDIA OPERATION GUIDE FORMAT MEDIA RED SSDs can be formatted as either FAT32 or UDF (UDF is only supported on firmware v6.4 or later). FAT32: All camera firmware versions support FAT32. When an SSD is formatted as FAT32, all video clips (including R3D, .mov, and .mxf) are separated into 4GB segments (but display as a single clip when referenced...
  • Page 44 RED DSMC MEDIA OPERATION GUIDE  7. Select Format. NOTE: The Format button also displays the number of clips that are deleted during formatting, if any clips are on the media. Figure: Format Details  8. Select Format to continue. Figure: Media Format Message Formatting takes about 10 seconds.
  • Page 45 RED DSMC MEDIA OPERATION GUIDE SECURE FORMAT MEDIA Secure format is a low-level format that rebuilds the SSD file system. It should only be used if the performance of the SSD is in question. IMPORTANT: Ensure that data is backed up before formatting media, since formatting erases all data on the SSD.

  • Page 46: Format (Erase) Media Via Computer As Fat32

    SSD as MS-DOS (FAT) only when the SSD is already formatted as FAT32 or MS-DOS (FAT). IMPORTANT: Ensure that data is backed up before formatting media, since formatting erases all data on the SSD.  1. Connect the RED MINI-MAG or REDMAG 1.8" SSD to your computer. For more information, go to "OffloadMedia" page 52.
  • Page 47 Figure: Unmount Screen  9. Eject the SSD from the computer. NOTE: Properly eject/unmount the SSD from the computer before physically removing the SSD from the RED STATION or turning off the RED STATION.  10. Remove the SSD from the RED STATION or RED STATION RED MINI-MAG – ESATA/USB 3.0.
  • Page 48 IMPORTANT: Ensure that data is backed up before formatting media, since formatting erases all data on the SSD.  1. Connect the RED MINI-MAG or REDMAG 1.8" SSD to your computer. For more information, go to "OffloadMedia"...
  • Page 49 Figure: Formatting will Erase All Data Warning  7. Eject the SSD from the computer. NOTE: Properly eject/unmount the SSD from the computer before physically removing the SSD from the RED STATION or turning off the RED STATION.  8. Remove the SSD from the RED STATION or RED STATION RED MINI-MAG – ESATA/USB 3.0.

  • Page 50: Clip Naming Convention

    RED DSMC MEDIA OPERATION GUIDE CLIP NAMING CONVENTION When you record a clip, the camera creates a unique name for the clip folder that uses the format described in the table below: NAME DESCRIPTION EXAMPLE Camera Letter Menu > Media > Format Media > Cam ID Reel Number Menu >...

  • Page 51: Media Capacity Remaining Status

    Yellow: 6% to 10 Red: 5% or less NOTE: When media is full, the Media Indicator LED on the media module flashes red. C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...

  • Page 52: Offloadmedia

    ESATA/USB 3.0 and the RED STATION (for REDMAG™ 1.8" SSD).  1. Place a RED STATION RED MINI-MAG – ESATA/USB 3.0 on a firm, flat surface.  2. Connect the RED STATION RED MINI-MAG – ESATA/USB 3.0 to a computer using one of the following data connectors: WARNING: DO NOT connect more than one (1) data cable between one (1) RED STATION RED MINI-MAG –...

  • Page 53: Connect A Redmag 1.8" Ssd To Your Computer

    RED STATION USB-C to USB-A CABLE – USB 3.1 (24")  3. Install the RED MINI-MAG in the media slot on the front panel of the RED STATION RED MINI-MAG – USB 3.1. The computer recognizes the inserted RED MINI-MAG and displays the RED MINI-MAG as a new drive.
  • Page 54  1. Place the RED STATION Base on a firm, flat surface.  2. Place up to three (3) of the following RED STATIONs on top of the RED STATION Base, aligning the four (4) bottom pegs with the four (4) rubber pads on top of the RED STATION Base: RED STATION REDMAG 1.8"...
  • Page 55 RED DSMC MEDIA OPERATION GUIDE SET UP A STAND-ALONE RED STATION (WITHOUT RED STATION BASE) This section explains how to connect a REDMAG 1.8" SSD to your computer using one of the following without a RED STATION Base: RED STATION REDMAG 1.8"...

  • Page 56: Offload Data From Media To Your Computer

    RED DSMC MEDIA OPERATION GUIDE  4. If offloading a REDMAG 1.8" SSD (48GB) or a REDMAG 1.8" SSD (512GB), power the RED STATION with a RED STATION USB to DC Power Cable (24"). Using an eSATA or USB connection alone may not power the RED STATION.

  • Page 57: Troubleshootmedia

    MEDIA This chapter explains how to troubleshoot media for your camera. If you continue to experience issues after troubleshooting, please file a support ticket at https://support.red.com. SSD MAINTENANCE This section describes best practices to ensure that your SSDs continue to provide reliable storage and fast data rates.

  • Page 58: Media Does Not Mount To Camera

    RED DSMC MEDIA OPERATION GUIDE RECORDING HALTED: RECORD ERROR–SHUTDOWN SYMPTOM The message “Recording Halted: Record Error– Shutdown” displays if the SSD is removed while recording or the connection to the camera is interrupted during recording. POTENTIAL RESOLUTION To resolve this issue, follow the instructions below:  1.

  • Page 59: Media Does Not Mount To Computer

    Power Adaptor or the RED STATION USB to DC Power Cable (24"). If connecting a RED STATION REDMAG 1.8" (Mini) with a 48GB or 512GB REDMAG 1.8" SSD via a USB 2.0 or USB 3.0 connection, ensure that the RED STATION REDMAG 1.8" (Mini) is powered via the RED STATION AC Power Adaptor or the RED STATION USB to DC Power Cable (24").

  • Page 60: Cannot Format Ssd On Computer

    Your computer cannot format your RED MINI-MAG or REDMAG 1.8" SSD. EXPLANATION RED recommends that you format your SSD via computer ONLY if the SSD cannot mount to the camera. The following limitations to formatting an SSD via computer exist: A Mac can format an SSD as MS-DOS (FAT) only when the SSD is already formatted as FAT32 or MS-DOS (FAT).

  • Page 61: Slow Offload Speeds

    Offloading files from your SSD to the computer takes longer than expected. EXPLANATION The offload speed depends on a few factors, including RED STATION type, SSD type (RED MINI-MAG vs. REDMAG 1.8" SSD), and data cable type. Below is a list of potential causes for slow offload speeds:...

  • Page 62: Identify Ssd Type In-Camera

    Identifies the SSD as a RED product Storage Capacity Storage capacity of the SSD 512GB SSD Type Identifies whether the SSD is a RED MINI-MAG or a REDMAG 1.8" SSD: MINI-MAG RED MINI-MAG: “MINI-MAG” displays REDMAG 1.8" SSD: Nothing displays Version/ Revision Identifies the firmware version of the SSD V1 REV.

  • Page 63: A Technical Specifications

    Each operating system may measure the storage either in Gigabytes (GB) or Gibibytes (GiB). The SSD format (FAT32 vs other formats) affects the capacity. The table below shows the storage capacity in GB and GiB for each RED MINI-MAG (when formatted as FAT32). SSD TYPE...
  • Page 64 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG MAXIMUM DATA RATES RED MINI-MAG CAMERA MAXIMUM DATA RATES ® ® RED MINI-MAG 480GB WEAPON DRAGON up to 300 MB/s (Carbon Fiber) RED MINI-MAG 512GB WEAPON DRAGON up to 225 MB/s RED MINI-MAG 960GB...

  • Page 65: Carbon Fiber Red Mini-Mag Side Ssd Module

    RED DSMC MEDIA OPERATION GUIDE CARBON FIBER RED MINI-MAG SIDE SSD MODULE SPECIFICATION DESCRIPTION Dimensions Height: 5.39" (137 mm) Width: 1.18" (30 mm) Depth: 3.54" (90 mm) Weight 0.49 lbs (0.22 kg) Material Carbon fiber Operating Temperature Range 10˚C to 40˚C (50˚F to 104˚F) Storage Temperature Range –20˚C to 50˚C (–4˚F to 122˚F)

  • Page 66: Red Station Red Mini-Mag - Esata/Usb 3.0

    RED STATION USB to DC Power Cable (24") (790-0316) RED STATION AC Power Adaptor (790-0292) RED STATION DC Power Coupler Cable (2") (790-0249) RED STATION FW800 Cable (24") (790-0251) RED STATION FW800 Cable (2") (790-0253) C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...

  • Page 67: Red Station Red Mini-Mag - Usb 3.1

    Dust-Free Power Cables RED STATION USB-C to USB-C CABLE – USB 3.1 (24") RED STATION USB-C to USB-A CABLE – USB 3.1 (24") C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC...

  • Page 68: Redmag 1.8" Ssd

    RED DSMC MEDIA OPERATION GUIDE REDMAG 1.8" SSD SPECIFICATION DESCRIPTION Storage Capacities 48GB, 64GB, 128GB, 240GB, 256GB, and 512GB Dimensions Height: 2.27" (58 mm) Width: 0.35" (9 mm) Depth: 4.15" (105 mm) Weight 0.21 lbs (95.25 g) Operating Temperature Range 10˚C to 40˚C (50˚F to 104˚F)

  • Page 69: Dsmc 1.8" Ssd Side Module

    RED DSMC MEDIA OPERATION GUIDE DSMC 1.8" SSD SIDE MODULE SPECIFICATION DESCRIPTION Dimensions Height: 5.39" (137 mm) Width: 1.18" (30 mm) Depth: 3.54" (90 mm) Weight 0.62 lbs (0.28 kg) Material Aluminum Operating Temperature Range 10˚C to 40˚C (50˚F to 104˚F) Storage Temperature Range –20˚C to 50˚C (–4˚F to 122˚F)

  • Page 70: Red Station Redmag 1.8

    RED STATION DC Power Coupler (2") (790-0249) RED USB-to-MINI USB Cable (24") (790-0315) RED USB-to-MINI USB Cable (6') (790-0230) RED STATION USB to DC Power Cable (24") (790-0316) RED STATION FW800 Cable (24") (790-0251) RED STATION FW800 Cable (2") (790-0253) C O PYR I G HT ©...

  • Page 71: Red Station Redmag 2.5

    RED STATION DC Power Coupler (2") (790-0249) RED USB-to-MINI USB Cable (24") (790-0315) RED USB-to-MINI USB Cable (6') (790-0230) RED STATION USB to DC Power Cable (24") (790-0316) RED STATION FW800 Cable (24") (790-0251) RED STATION FW800 Cable (2") (790-0253) C O PYR I G HT ©...

  • Page 72: Red Station Base

    Power Cables RED STATION AC Power Adaptor (790-0292) RED STATION USB to DC Power Cable (24") (790-0316) C O PYR I G HT © 2 0 1 7 R ED.C O M , LLC 9 5 5 - 0 0 4 7 , R EV - AH   |   7 2...

  • Page 73: B Redcode Options

    Therefore, if you are in MoCo mode, and you set the frame rate to 100.83 fps, the maximum REDCODE is calculated based on a frame rate of 50.415 fps. NOTE: RED does not publish the REDCODE and frame rate pairings for the REDMAG™ 1.8" SSD 64GB and REDMAG 1.8" SSD 256GB.

  • Page 74: Scarlet Mysterium-X

    ® ® ® The SCARLET MYSTERIUM- X REDCODE and frame rate pairings are identical for all RED MINI- MAG REDMAG 1.8" SSD media. NOTE: The values in this table are based on camera firmware v6.0. RECORDING FRAME RATE (FPS) FORMAT 5K FF  ...

  • Page 75: Epic Mysterium-X

    RED DSMC MEDIA OPERATION GUIDE EPIC MYSTERIUM-X NOTE: The values in this section are based on camera firmware v6.0. REDMAG 1.8" SSD 48GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 120 150 175 200 240 288 300 400 5K FF 11 13 14 16  ...
  • Page 76 RED DSMC MEDIA OPERATION GUIDE REDMAG 1.8" SSD 240GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 120 150 175 200 240 288 300 400 5K FF 11    ...
  • Page 77 2K 16:9         RED MINI-MAG 480GB, 512GB, 960GB, AND 1TB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 120 150 175 200 240 288 300 400 5K FF  ...

  • Page 78: Scarlet-X Dragon

    RED DSMC MEDIA OPERATION GUIDE SCARLET-X DRAGON ® The SCARLET-X DRAGON REDCODE and frame rate pairings are identical for all RED MINI-MAG and REDMAG 1.8" SSD media. NOTE: The values in this table are based on camera firmware v6.0. RECORDING FRAME RATE (FPS)

  • Page 79: Epic Dragon

    RED DSMC MEDIA OPERATION GUIDE EPIC DRAGON NOTE: The values in this section are based on camera firmware v6.0. REDMAG 1.8" SSD 48GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 11 11 14 18 21 22  ...
  • Page 80 RED DSMC MEDIA OPERATION GUIDE REDMAG 1.8" SSD 128GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 10 11 13 15 16              ...
  • Page 81 RED DSMC MEDIA OPERATION GUIDE REDMAG 1.8" SSD 240GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 10 10 12 14 15              ...
  • Page 82 RED DSMC MEDIA OPERATION GUIDE REDMAG 1.8" SSD 512GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 11 13 14                  ...
  • Page 83 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG 120GB AND 240GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 10 10 12 14 15            ...
  • Page 84 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG 480GB, 512GB, 960GB, AND 1TB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 10 12 13            ...

  • Page 85: Red Raven

    RED DSMC MEDIA OPERATION GUIDE RED RAVEN ® The RED RAVEN REDCODE and frame rate pairings are identical for all RED MINI-MAG media. NOTE: The values in this table are based on camera firmware v6.4. RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 4.5K FF...

  • Page 86: Scarlet-W

    RED DSMC MEDIA OPERATION GUIDE SCARLET-W ® The SCARLET-W REDCODE and frame rate pairings are identical for all RED MINI-MAG media. NOTE: The values in this table are based on camera firmware v6.4. RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 5K FF  ...

  • Page 87: Weapon 6K (Magnesium)

    RED DSMC MEDIA OPERATION GUIDE WEAPON 6K (MAGNESIUM) ® The WEAPON  6K (Magnesium) REDCODE and frame rate pairings are identical for all RED MINI-MAG media. NOTE: The values in this table are based on camera firmware v6.4. RECORDING FRAME RATE (FPS) FORMAT...

  • Page 88: Weapon 6K (Carbon Fiber)

    RED DSMC MEDIA OPERATION GUIDE WEAPON 6K (CARBON FIBER) NOTE: The values in this table are based on camera firmware v6.4. RED MINI-MAG 120GB AND 240GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF 11 11  ...
  • Page 89 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG 480GB, 512GB, 960GB, AND 1TB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 6K FF                  ...

  • Page 90: Red Epic-W 8K S35

    RED DSMC MEDIA OPERATION GUIDE RED EPIC-W 8K S35 NOTE: The values in this section are based on camera firmware v6.4. RED MINI-MAG 120GB AND 240GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 8K FF  ...
  • Page 91 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG 480GB, 512GB, 960GB, AND 1TB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 8K FF                    ...

  • Page 92: Weapon 8K S35

    RED DSMC MEDIA OPERATION GUIDE WEAPON 8K S35 NOTE: The values in this section are based on camera firmware v6.4. RED MINI-MAG 120GB AND 240GB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 8K FF 11 13 14 16  ...
  • Page 93 RED DSMC MEDIA OPERATION GUIDE RED MINI-MAG 480GB, 512GB, 960GB, AND 1TB RECORDING FRAME RATE (FPS) FORMAT 12 24 25 30 40 48 50 60 72 75 90 96 100 8K FF 10 10 12            ...
