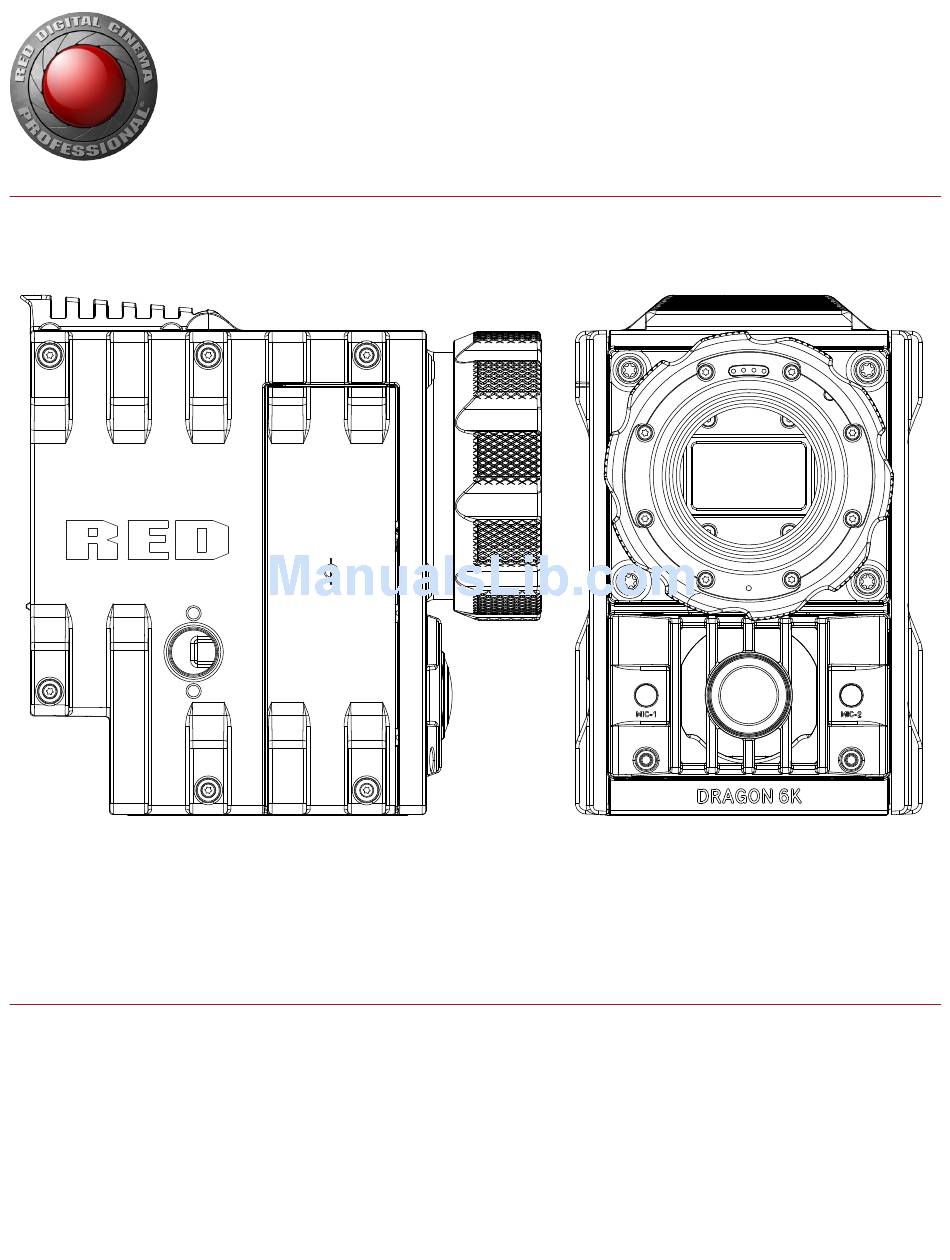

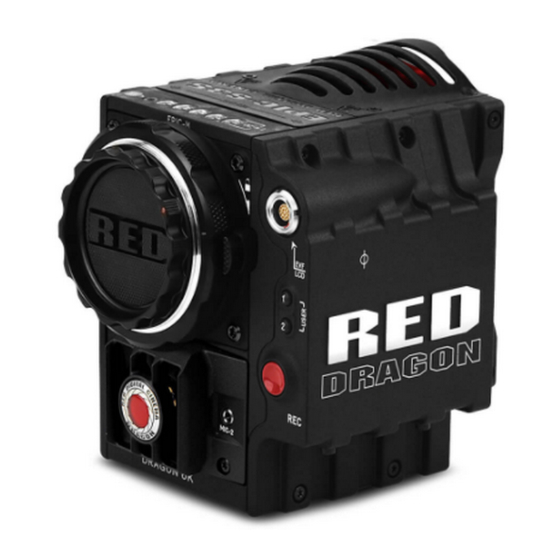

Page 1 RED DSMC O P E R AT I O N G U I D E E P I C S C A R L E T V 6 . 0 R E D D R A G O N M Y S T E R I U M - X M O N O C H R O M E R E D .
Page 2: Table Of Contents
Additional Resources Master/Slave Operation BRAIN Set Up Stereo/3D Configuration DSMC Media Modules Set Up a Camera Array REDMAG and RED MINI-MAG Systems Set Up Motion Control (MoCo) DSMC Adaptor Modules Compatible Devices DSMC Power Modules Chapter 9: Upgrade DSMC Firmware...
Page 3: Disclaimer
While thought to be accurate, the informa- code, and product names used in association with the accompa- tion in this document is provided strictly “as is” and RED will not nying product are the copyrights, trademarks, or other intellectual be held responsible for issues arising from typographical errors or property owned and controlled exclusively by RED.COM, INC.
Page 4: Compliance Statements
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est sus- RED declares that the radio equipment described in this document ceptible d’en compromettre le fonctionnement.Cet appareil numéri- comply with the following international standards.
Page 5 Restrictions d’utilisation - Zone géographique où les restrictions s’appliquent : France Pour la France métropolitaine 2.400 - 2.4835 GHz (Canaux 1 à 16) autorisé en usage intérieur 2.400 - 2.454 GHz (canaux 1 à 10) autorisé en usage extérieur COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 6: Safety Instructions
WARNING: Danger of explosion if an incor- DO NOT operate or store near any heat sources such as radia- rect battery is charged with the RED Char- tors, heat registers, stoves, or any other apparatus that pro- ger or is used to power the camera and duce heat.
Page 7: Battery Storage And Handling
50% to 80%. If RED batteries. batteries will be stored for long periods of time, RED recommends Store the battery in a location where children cannot reach it. that you check the charge level at least once every six (6) months, If the battery leaks or gives off a bad odor, discontinue use and recharge batteries to a capacity level of 50% to 80%.
Page 8: Chapter 1: Dsmc System Introduction
EPIC-M RED DRAGON MONOCHROME READ BEFORE YOU SHOOT Read this operation guide carefully and in its entirety before assembling or operating your DSMC or other RED accessories. In addition to this document, RED offers the following operation guides for the DSMC system:...
Page 9: Dsmc Brain
The SCARLET-X BRAIN leaves one-dimensional DSLRs in its wake, letting you capture up to 6K video and stills with the RED DRAGON sensor, or 5K video and stills with the MYSTERIUM-X sensor. The SCARLET-X offers the same raw potential as the EPIC with the .R3D file format that offers unmatched dynamic range, image latitude, ®...
Page 10: Red Digital Sensors
35mm film in both latitude and image density. The RED DRAGON sensor is a model for image innovation, leading the way in the evolution of digital cinema technology. Boasting an industry-leading 19 megapixels at 6K resolution, the RED DRAGON supports 100+ frames per second (FPS), 16.5+ stops of dynamic range, and advanced color science.
Page 11: R3D File Format And Redcode
NOTE: The MONOCHROME and RED DRAGON MONOCHROME sensors are only available with EPIC BRAINs. R3D FILE FORMAT AND REDCODE The R3D file format was developed by RED to provide an efficient and manageable RAW video data format that promotes advanced post-production editing capabilities. In the R3D file format, the digital image received from the sensor is formatted as a pixel-defect corrected (but in all other aspects unprocessed) 16-bit per pixel RAW data frame.
Page 12: Shoot For Video And Stills
R E D D S M C O P E R AT I O N G U I D E SHOOT FOR VIDEO AND STILLS High resolution video, such as the digital footage captured by the RED DSMC, has surpassed the detail necessary to produce professional full-sized prints. Because of the ability to record at high frame rates and resolution, the DSMC is ideally suited to capture video and still images, simultaneously.
Page 13: Hdrx And Magic Motion
MAGIC MOTION creates an image that matches the natural motion observed by the human eye. ADDITIONAL RESOURCES The following resources offer additional information about RED, the DSMC system, and the RED community: RED.com: Check the official RED website for the latest information about RED products.
Page 14: Chapter 2: Dsmc System Components
NOTE: Availability of components listed in this chapter is subject to change at any time. ADDITIONAL RESOURCES For more information on media and power, see the following guides, available at www.red.com/downloads: DSMC Media Operation Guide DSMC Power Operation Guide COPYRIGHT ©...
Page 15: Brain
Power present; camera off Record Status LED No media present (REC) Green Ready to record Amber Finalizing Red flashing (slow) Recording; 25% media left Red flashing (fast) Recording; 5% media left Recording COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 16: Dsmc Media Modules
Rear SSD Module 720-0009 1. The DSMC 1.8” SSD Side Module (DRAGON) is only available with the purchase of a RED DRAGON sensor-based BRAIN. 2. Carbon fiber side SSD modules are only available with the purchase of a carbon fiber BRAIN.
Page 17: Rear Ssd Module
The Rear SSD Module secures to the back of a Module Adaptor or a +1 Adaptor Module to serve as a rear location for recording to a REDMAG 1.8" SSD. For more information, see the DSMC Media Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 18: Redmag And Red Mini-Mag Systems
2. The RED MINI-MAG 512GB requires that your DSMC is on firmware v5.1.34 or later. 3. The RED MINI-MAG 1TB requires that your DSMC is on firmware v5.3.34 or later. The RED MINI-MAG 1TB can take up to 20 seconds to mount to a computer or a DSMC.
Page 19: Dsmc Adaptor Modules
WARNING: The Module Adaptor is NOT compatible with the +1 Adaptor Module. WARNING: The +1 Adaptor Module IS NOT compatible with the Module Adaptor. WARNING: DO NOT use the EVF/LCD port if a Pro I/O Module is connected to the BRAIN. RED offers the following DSMC adaptor modules: ITEM PART NUMBER...
Page 20 Power Out > +1 PWR. The last power output setting is saved until a firmware upgrade or a factory reset. +1 ADAPTOR MODULE ACCESSORIES For more information, as well as a full list of EVF/LCD cables and other accessory cables, visit www.red.com. ACCESSORY...
Page 21: Dsmc Power Modules
, REDVOLT XL, and RED BRICK batteries. When used in combination with a ® ® DSMC AC Power Adaptor or DSMC Side Handle, you can hot-swap batteries without interrupting recording. RED offers the following DSMC power modules: ITEM PART NUMBER Pro Battery Module (Dual) 720-0005...
Page 22: Red Batteries And Chargers
BRAIN. These batteries provide long-term mobile power and attach to the BRAIN via a DSMC power module or other RED accessory, such as the DSMC Side Handle. RED chargers replenish lost capacity for REDVOLT, REDVOLT XL, and RED BRICK batteries.
Page 23: Other Dsmc Modules
Centralized ports that make it easy to manage connections and cables. LCD/EVF port that allows you to connect an additional RED LCD or EVF. Customizable triggers that interface with third-party GPIO and RS232 control devices using Pro I/O cables.
Page 24 3G-SDI output connections to broadcast 4K video at up to 60 frames per second. Five (5) 1/4-20 mounting holes are built into the top of the module, allowing for various mechanical peripherals to be attached. For more information, see the REDCAST Module Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 25: Displays And Electronic Viewfinders
730-0010 1. The RED Touch 7.0" LCD requires that your DSMC is on firmware v5.2.38 or later. It can take the camera up to 8.5 minutes to update firmware for the RED Touch 7" LCD. The LCD displays a progress screen during the update. If your camera loses power during the update, turn your camera back on.
Page 26 R E D D S M C O P E R AT I O N G U I D E counterclockwise from the nominal “rear-facing” orientation). The tilt axis range of adjustment is approximately 180˚. Damage to a RED display or other DSMC components caused by excessive force is not covered under warranty.
Page 27: Dsmc Remotes And Controls
REDLINK Bridge (REDLINK Development Kit) 720-0028 1. The RED Switchblade-M requires that your DSMC is on firmware v5.2.28 or later. Full functionality requires DSMC firmware v5.3 or later. 2. The REDLINK Bridge requires that your DSMC is on firmware v5.2.28 or later.
Page 28 RED SWITCHBLADE-M RED Switchblade-M The RED Switchblade-M is a low-profile and lightweight interface solution that mounts to the side of the DSMC BRAIN. With a 1.7" OLED display and full navigation controls, the RED Switchblade-M grants full access to DSMC menus while optimizing the size and weight of y our camera configuration.
Page 29 The REDLINK Bridge is part of the REDLINK Development Kit and uses the REDLINK Command Protocol (RCP) to communicate information between the DSMC and your application. For more information, see the REDLINK Bridge Operation Guide, available at www.red.com/downloads. NOTE: The REDLINK Bridge requires DSMC firmware v5.2.8 or later. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 30: Dsmc Lens Mounts
725-0012 DSMC MOTION MOUNT Ti PL DSMC MOTION MOUNT Ti Canon 725-0014 1. The DSMC RED MOTION MOUNT requires that your DSMC is on firmware v5.1.14 or later. For more information, go to “Default Key Functions” on page 215. COPYRIGHT © 2015 RED.COM, INC...
Page 31: Dsmc Interchangeable Olpfs
2. Monochrome OLPFs are for use with the DRAGON MONOCHROME sensor ONLY. RAILS, MOUNTS, TACTICAL GEAR, AND CABLES RED offers a wide variety of support gear, mounting platforms, cables, accessories, and other equipment. For more information, visit the RED Store at www.red.com/store.
Page 32: Chapter 3: Dsmc Basic Operations
Backpack Quickplate NOTE: Additionally, one (1) REDVOLT battery may be used in conjunction with the DSMC Side Handle to provide ® short term power and support hot-swapping of other power sources. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 33: Power Consumption
The Power Status LED then illuminates green to confirm that the BRAIN is turned on and ready to use. NOTE: Once turned on, the DSMC Power Status LED flashes red when there is less than five (5) minutes of operating time remaining.
Page 34: Configure Your Dsmc
5. Install the appropriate screw at the bottom of the BRAIN side plate using a T10 Torx driver. DO NOT exceed 70 in-oz, or damage may occur. EPIC side plate screw: M3x0.5 x 8 mm ‒ SCARLET side plate screw: M3x0.5 x 5.5 mm ‒ WARNING: DO NOT OVERTIGHTEN. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 35 3. Rotate the BRAIN side plate upwards to disengage the lip at the top of the side plate from the BRAIN, and remove the BRAIN side plate. 4. Insert the lip on the RED Switchblade-M into the slot where the lip of the BRAIN side plate was installed. 5. Press the Switchblade-M down flush along the side of BRAIN.
Page 36 T20 Torx driver. DO NOT FULLY TIGHTEN. 5. Fully tighten the four (4) screws in a cross pattern (“X” pattern) using a T20 Torx driver. WARNING: DO NOT OVERTIGHTEN. Tighten screws COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 37 REQUIRED TOOL: T20 Torx driver 1. Turn off the BRAIN. 2. Remove the REDMOTE, if attached. 3. Position the +1 Adaptor Module over the V-mount on the rear of the BRAIN. Install the +1 Module Adaptor COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 38 2. Loosen the four (4) captive mounting screws in a cross pattern (“X” pattern) using a a T20 Torx driver. 3. Disconnect the HDMI connector from the BRAIN. 4. Remove the +1 Adaptor Module from the BRAIN. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 39 2. Use a T20 Torx driver to turn the lock on the adaptor module counter-clockwise to the Unlock position. 3. Rotate the module upwards and away from the adaptor module to disengage. 4. Remove the module. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 40 REQUIRED TOOL: T8 Torx driver The hood scoop on some EPIC-X and EPIC-M models extends beyond the rear plane of the BRAIN. RED offers shorter hood scoops so that you can attach an LCD or other accessory to the mounting locations on the top of the +1 Adaptor Module.
Page 41: Dsmc Interchangeable Olpf System
4. Remove the lens mount. Remove Lens Mount 5. Use a damp, lint-free cloth to gently wipe down the area around the lens mount and OLPF module. Remove as much dust and debris as possible. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 42 6. Remove the four (4) M2x0.4 x 4 mm OLPF module screws (P/N 600-0224) in a cross pattern (“X” pattern) using a T6 Torx driver. Remove OLPF module screws 7. Remove the OLPF module and place it in the protective case. Remove the OLPF module COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 43 12. Fully tighten the four (4) OLPF module screws in a cross pattern (“X” pattern) using a T6 Torx driver. DO NOT exceed 30 in-oz, or damage may occur. WARNING: DO NOT OVERTIGHTEN. 13. Replace the lens mount. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 44 OLPF type will affect color accuracy. For more information, go to “Note: When an SSD is not attached, the Media Info tab displays “No Active Media is Present”.” on page 119. OLPF Type menu selection COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 45: Use A Tripod Or Monopod
WARNING: Ensure that the tripod, monopod, or support system is designed and rated to handle the weight of your DSMC configuration. RED is not responsible for any damage caused by using a tripod, monopod, mount, or support system that does not provide sufficient support.
Page 46: Video Monitor Outputs
4:4:4 RGB. The DSMC offers the following monitor outputs: EVF/LCD: Supports a RED EVF or LCD display. HD-SDI: Provides a 720p or 1080p output suitable for monitoring or recording to an external VTR or DDR device. It may be configured for 10-bit LIN (VIDEO) or 10-bit LOG (FILM) encoded data.
Page 47 “Cannot Use Touchsreen or DSMC Side Handle” on page 177. SIMULTANEOUS RECORD You can record simultaneously to an external recorder and RED media. Perform the following steps to simultaneous record. 1. Connect the BRAIN to an external recorder with an HD-SDI or HDMI cable.
Page 48: Chapter 4: Basic Menus And Controls
Lower Status Row Critical camera parameters, record/playback modes, media and power status, and audio meter. Go to “Lower Status Row” on page For more information, go to “Video Monitor Outputs” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 49: Upper Status Row (Basic Menu)
UPPER STATUS ROW (BASIC MENU) The Upper Status Row displays basic project parameters. The currently selected parameter in the Upper Status Row is underlined with a red bar. The Upper Status Row is also known as the Basic Menu. Upper Status Row...
Page 50 For example, select Advanced... in the Frame Rate menu to open Menu > Settings > Project > Frame Rate. For more information about Advanced Menus, go to “Advanced Menus” on page Select “Advanced...” Button “Advanced...” Menu COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 51 For example, if you open the Frame Rate menu and select Edit List..., the camera lets you add or remove values to available frame rates. Select “Edit List...” Button “Edit List...” Menu COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 52 HDRx mode, media, or the target REDCODE compression ratio. MYSTERIUM-X: Range is 3:1 to 18:1. Default is 8:1. RED DRAGON: Range is 2:1 to 22:1. Default is 8:1. For maximum available REDCODE values, see the DSMC Media Operation Guide at www.red.com/downloads.
Page 53: Live Action Area
This section describes the lens information displays when a supported lens is attached. PL LENSES Displays the focal length and focal distance when a RED DSMC Ti PL Mount is installed and a lens with Cooke’s S4/i system (or equivalent) is attached. For more information, go to “Lens Tab”...
Page 54: Lower Status Row
DC voltage in or % of remaining battery “Power Status” on page 57 capacity; tap to access the Power menu Audio Meter Audio input selection and levels; “Audio Meter Levels” on page 145 tap to access the Audio menu COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 55: Camera Mode
Media ‒ Power NOTE: For more information, go to “Swipe-Up Menu” on page Default Motion Preset (RED) NOTE: For more information, go to “Preset Default Key Functions” on page 218. STILLS MODE Stills mode optimizes your camera settings for capturing stills. In Stills mode, the camera defaults to 6K 3:2, REDCODE 3:1, Auto Exposure Single Shot, and Multi-Shot mode.
Page 56 Also known as a “goal post”. Displays the amount of pixels in the image that are overexposed (clipping) RGB Histogram Provides a visual representation of exposure and sensor data levels for Red, Green, and Blue channels; meter is affected by White Balance, ISO, and VIEW/ LOOK settings RAW Clip Meter Also known as “traffic lights”.
Page 57 Gray: The sensor sync mode is not set to genlock. Red: The sensor sync mode is set to genlock, but is not locked to a genlock signal. This may occur if genlock or sensor sync is lost while recording.
Page 58 When using a REDVOLT or REDVOLT XL battery, the power status displays the location of the power source (example: SH: DSMC Side Handle; RM: Rear Module) and the remaining battery capacity. When using a RED BRICK battery connected to DC IN, the power status displays BRICK and the remaining battery capacity.
Page 59: Navigation Controls
R E D D S M C O P E R AT I O N G U I D E NAVIGATION CONTROLS This section describes basic controls for navigating the DSMC menus. TOUCHSCREEN NAVIGATION RED Touch displays offer intuitive menu control and four (4) programmable buttons. RED Touch 7.0" LCD RED TOUCH BUTTON DESCRIPTION...
Page 60 R E D D S M C O P E R AT I O N G U I D E SWIPE-UP MENU The Swipe-Up Menu is available in the Lower Status Row on RED Touch displays and provides Swipe-Up Shortcuts for Motion mode, Stills mode, and Playback.
Page 61: For More Information, Go To
R E D D S M C O P E R AT I O N G U I D E NAVIGATION GROUP The Navigation Group is the primary control interface on the DSMC Side Handle, RED Switchblade-M, and REDMOTE. Navigation Group...
Page 62: Dsmc Side Handle
1. Press User Keys 1 + 4 simultaneously to lock/unlock DSMC Side Handle buttons to prevent inadvertent menu changes. NOTE: DSMC Side Handle keys are programmable. For more information, go to “Key Mapping” on page 100. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 63 Shutter Speed Integration time or shutter angle Media Status Displays media location and remaining media capacity Power Status Indicates DC supply voltage or % of remaining battery capacity including current supply voltage COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 64 Mounting Thumbscrew Install and remove the RED Switchblade-M 1. Press User Keys A + D simultaneously to lock/unlock RED Switchblade-M buttons to prevent inadvertent menu changes. 2. MODE Button functionality requires DSMC firmware v5.3 or later. NOTE: RED Switchblade-M keys are programmable. For more information, go to “Key Mapping”...
Page 65 R E D D S M C O P E R AT I O N G U I D E RED SWITCHBLADE-M DISPLAY The RED Switchblade-M OLED display provides basic camera parameters during operation. RED Switchblade-M OLED (Local Mode) The RED Switchblade-M displays the following camera parameters:...
Page 66: Chapter 5: Advanced Menus
Press the Menu button on the DSMC Side Handle or REDMOTE ® ® Press the Menu icon on the touchscreen. Select the Advanced... button in any menu from the Upper Status Row (except the REDCODE menu). COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 67: Settings Menu
Red: Overexposed; indicates sensor exposure levels that are clipping. Purple (underexposure) and red (overexposure) are based on RAW data and show areas that are clipping or close to clipping. The RGB settings (settings in the Look menu) DO NOT affect the Exposure indicators.
Page 68 16: Represents the top stop, and is broken up into 1/8th increments to show highlight roll-off. Each 1/8th stop is represented by a different shade of red, ranging from light red (less light) to dark red (most light). COPYRIGHT © 2015 RED.COM, INC...
Page 69 ® The side-bars are green if the pitch is within +/– 1° of the calibrated zero position, otherwise they are red. The horizon-line is green if the roll is within +/– 1° of the calibrated zero position, otherwise it is red.
Page 70: Monitor Control
NOTE: When two (2) touchscreens are attached to the DSMC with the same resolution and one (1) is currently the control surface, set the other to mirror it and give the effect of having two (2) control surfaces. OVERLAY Select which overlay shows on top of the video. RED provides preset overlays, which have “(RED)” in the ®...
Page 71 Enables the false color modes on the monitor. For more information, go to “Tools” on page FLIP/MIRROR UI NOTE: This setting is NOT available on the RED Touch 7.0" LCD. For more information, go to “Flip Mirror” on page Flip the graphical user interface (GUI) vertically and mirror horizontally (not rotated). Use this setting when mounting a monitor upside down.
Page 72 Control > Monitor tab. Media: Overlays saved to an SSD can be found at On Media: \overlays:. NOTE: Overlays that end with (RED) are provided by default and cannot be edited, deleted, or exported. OVERLAY ACTIONS Create...: Create a new custom overlay using a blank overlay template in the Overlay Editor.
Page 73 The monitor must be set to Overlay mode in the Monitor Control menu. Each monitor that has higher priority on the list must be either detached or not set to Overlay mode. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 74 Control the brightness of each LCD and EVF. Move to the right for a brighter display; move to the left for a dimmer display. Side UI LCD controls the brightness of the Switchblade-M LCD. NOTE: A rear LCD/EVF is an LCD/EVF that is plugged into any rear RED module, such as the +1 Adaptor Module or the Pro I/O Module.
Page 75: Display Modes
Input: Displays levels of audio inputs (pre-mixer). (Default) Output: Displays levels of audio outputs (post-mixer). HISTOGRAM NOTE: The Histogram setting is not accessible on BRAINs with MONOCHROME or RED DRAGON MONOCHROME sensors. RGB: Displays red, green, and blue channels on histogram. (Default) Luma: Displays luma channel on histogram.
Page 76 Metric: Displays lens focus distances in meters. Imperial: Displays lens focus distances in feet and inches. (Default) MOTION MOUNT ND AND MOTION MOUNT ISO PULL Only applicable when using a DSMC RED MOTION MOUNT. For more information, see the RED MOTION MOUNT Operation Guide, available at www.red.com/downloads.
Page 77 To enable a test signal, select the test signal box. To exit, tap the touchscreen or press the Enter or Menu button on the DSMC Side Handle or REDMOTE. If needed, enable an Audio Tone. NOTE: Test signals are not recordable; they are provided to help align external HD-SDI and HDMI monitors. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 78 Exp Comp: Adjusts exposure compensation. Available range is –7.0 to 7.0. Default is 0.0. GAIN Adjust the Red channel, Blue channel, and Green channel individually. The range for each is 0.0 (none of the color) to 10.0, and the default for each is 1.0.
Page 79 CURVES Define the individual curves for the Luma, Red, Green, and Blue channels. You can only adjust one (1) curve at a time. Select Reset Curve to reset a curve. NOTE: Luma is the only channel on BRAINs with MONOCHROME or RED DRAGON MONOCHROME sensors.
Page 80 7. Repeat Step 5 Step 6 for each monitor you are using. 8. To return to the Color/Gamma menu, select Close. To close all menus, tap any area outside of the menu. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 81 (you cannot select color space and graded gamma space when ACES Proxy is enabled). COLOR TEMPERATURE Select a color temperature. The range is 1700 to 10,000 KELVIN, and the default is 5600 KELVIN. NOTE: The Color Temperature settings are not accessible on BRAINs with MONOCHROME or RED DRAGON MONOCHROME sensors. TINT Color temperature calculations assume a pure light source that may not be true in the specific scene the camera is imaging.
Page 82 Alternatively, select Color Temperature > Advanced... from the Upper Status Row. 3. Select Auto White Balance. LGG (LIFT, GAMMA, GAIN) Adjust the lift, gamma, and gain for the Red channel, Blue channel, and Green channel individually. PROJECT The Project menu includes: Frame Rate, Exposure, Timecode, Slate, and Format.
Page 83 2.5K 5:4 134.95 4.5K 4:1 224.92 2.5K 4:1 392.77 4.5K 8:1 400.00 2.5K 8:1 400.00 4K FF 120.83 2K FF 240.55 4K 2:1 127.38 2K 2:1 252.55 4K WS 150.72 2K WS 301.10 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 86 MYSTERIUM-X: Slowest speed is 1/recording frame rate. For 24 FPS, the slowest speed is 1/24 sec. RED DRAGON: Slowest speed is 1/8 sec, regardless of therecording frame rate.. The fastest speed is 1/131,579 sec. Default is 1/48 sec.
Page 87 Frame values for Auto Head Frames and Auto Tail Frames on the Auto Slate tab, these values only show in-camera. The Auto Head Frames and Auto Tail Frames metadata values are currently disabled in REDCINE-X PRO. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 88 5K RAW 8:1 5120 4.5K FF 4.5K RAW 4608 2412 4.5K 2:1 4.5K RAW 2:1 4608 2304 4.5K WS 4.5K RAW Wide Screen—2.4:1 4608 1944 4.5K HD 4.5K RAW HD—16:9 4224 2376 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 89 3K RAW 8:1 3072 2.5K FF 2.5K RAW Full Frame 2560 1340 2.5K 2:1 2.5K RAW 2:1 2560 1280 2.5K WS 2.5K Wide Screen—2.4:1 2560 1080 2.5K HD 2.5K RAW HD—16:9 2304 1296 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 91 2K RAW Full Frame 2048 1080 2K 2:1 2K RAW 2:1 2048 1024 2K WS 2K RAW Wide Screen—2.4:1 2048 2K HD 2K RAW HD—16:9 1920 1080 2K 6:5 2K RAW 6:5 1296 1080 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 92 For a list of aspect ratios for SCARLET DRAGON, go to “SCARLET DRAGON Formats” on page For a list of resolutions for EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X, go to “EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X Formats” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 93 ‒ 5K 1.22:1: Anamorphic 2x NOTE: Anamorphic de-squeeze on the RED PRO LCD 7.0" requires that your DSMC is on firmware v5.3 or later. DE-SQUEEZED RESOLUTION AND DE-SQUEEZED ASPECT RATIO When you enable anamorphic, both the actual format and the de-squeezed format display at the bottom of the Format menu.
Page 94 The Audio menu lets you configure the audio subsystem. For more information, go to “Record and Monitor Audio” on page 139. RECORDING The Recording menu includes: Mode, Frame Processing, Pre-Record, and Indicator. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 95 6. Close the menu. 7. Start recording to start the interval. The overlay displays the number of frames recorded out of the total amount of frames. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 96 NOTE: If using speed ramp mode, select an exposure that is valid for each ramp target frame rate. If the camera ramps to a frame rate that is incompatible with the current exposure, the exposure changes to the longest exposure possible for the frame rate. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 97 Pre Count: The camera captures the frame cache from the time preceding the marker. Post Count: The camera captures the remaining frame cache after the marker. The maximum frame counts are listed in the Available column, and are based on format and REDCODE. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 98 4. Use the Limit Recording to fields to set the recording to end at a predefined frame limit (optional). 5. Close the menu. 6. For more information on using the different sub-modes, go to: ‒ “Basic Multi-Shot Mode” on page 98 ‒ “Advanced Multi-Shot Mode” on page 98 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 99 1/3 sec (16 x 1/48). Frame summing results in a final image that is brighter and possibly blurrier than any of the original frames, so you can use frame summing to achieve the effect of long-exposure. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 100 Record Stop ‒ Mark Still Frame EVF Tally Light: Select this check box to enable the Record Tally LED on the EVF to illuminate red when recording. SETUP The Setup menu includes: Keys, Date/Time, Communication, REDmote, GPIO/Sync, Fan Control, Lens, and Motor Control.
Page 101 For example, on a multi-rig 3D shoot, you can send commands to an individual camera (Example: Set CAM_A_L to 1/48 exposure), to a group of cameras (Example: Set 3DRIG_A to 48 FPS), or to all cameras (Example: Start Recording on all cameras). COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 102 GIG-E or the REDLINK Bridge). Select one of the following protocols from the Serial Protocol drop-down menu: None (Default) Element Technica 3ality SPC 7XXX REDLINK Command Protocol COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 103 Off: Sensor runs at the current recording frame rate. This is the default option. Genlock: Sensor synchronizes with the incoming compatible genlock signal. MoCo: Each rising edge on the sync input triggers a frame to be captured. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 104 The Lower Status Row of the camera display has GEN and SYNC indicators, which change color based on the current genlock and sync statuses. For more information, go to “System Status Indicators” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 105 EPIC MYSTERIUM-X and SCARLET MYSTERIUM-X: Target temperature range is 45°C to 70°C. Target temperatures above 50°C give noticeable fan noise improvements when compared to Auto mode. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 106 RED MOTION MOUNT Operation Guide, available at www.red.com/downloads. MOTOR CONTROL Use the Motor Control menu to set up the RED 3-Axis Lens Control System. For more information, see the 3-Axis Lens Control System Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC...
Page 107 Status, and OLPF. SAVE A LOG FILE A LOG file is a detailed text file of the processes and operations performed by the DSMC. If you contact RED for support, you may be asked to send a LOG file. To save a LOG file, follow the instructions below: 1.
Page 108 For EPIC MYSTERIUM-X or SCARLET MYSTERIUM-X: After a firmware upgrade if instructed to do so in the firmware release notes. To check the temperature/exposure of the current calibration file, go to Menu > Settings > Maintenance > System Status > Calibration. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 109 The system initializes and then makes two (2) passes through the following phases of the calibration: ‒ Capturing ‒ Analyzing ‒ Erasing ‒ Programming 12. When the Calibration Successful dialog displays, select OK to complete black shading. The new calibration map is automatically selected. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 110 : Export selected calibration map from camera to SSD. : Import selected calibration map from SSD to camera. This overwrites the user HS calibration map. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 111 NOTE: The camera may not be able to calibrate some electronic lenses. NOTE: The camera does not create calibration files for lenses that are already electronically supported. For a full list of supported lenses, go to “Lens Mounts and Lenses” on page 205. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 112 When you attach a lens that the camera does not recognize, the “Unsupported Lens Found” dialog box displays and asks if you want to calibrate the lens. Select Create Custom Lens Config. ‒ Go to Menu > Settings > Maintenance > Calibrate > Lens and select Create..COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 113 6. To calibrate the next focal length, follow the instructions below: A. Go to Menu > Settings > Maintenance > Calibrate > Lens. B. Select the calibration file name in the Camera list and select Edit..COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 114 DO NOT touch the lens, since that may cause incorrect calibration. 7. Repeat Step 6 for each focal length of the lens. The lens calibration file remains on the camera after system restores and firmware upgrades. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 115 3. You can perform any of the following actions: ‒ Add Cal @ xx...: Calibrate the current focal length; “xx” is the current focal length. ‒ Remove Cal: Remove the calibration for the selected focal length. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 116 : Export selected file from camera to SSD. All : Export all files from camera to SSD. : Import selected file from SSD to camera. All: Import all files from SSD to camera. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 117 Prompt for calibration of unsupported lenses: Select this check box to ensure that the “Unsupported Lens Found” dialog box displays every time the camera detects an unsupported electronic lens at boot-up. Deselect this check box to disable the “Unsupported Lens Found” dialog box. Self Test COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 118 3. Select Yes on the screen that asks you to confirm the System Restore. The BRAIN turns off. 4. Turn on the BRAIN. NOTE: After performing a system restore, pair the REDMOTE to the camera again. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 119 Size: Total capacity on the SSD. Size Available: Total capacity left on the SSD that can be recorded to. NOTE: When an SSD is not attached, the Media Info tab displays “No Active Media is Present”. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 120 NOTE: The OLPF menu is only available on an EPIC DRAGON or SCARLET DRAGON. RED offers multiple optical low-pass filters (OLPFs) for EPIC DRAGON and SCARLET DRAGON. Each OLPF optimizes certain characteristics to take full advantage and control of each shooting environment. The camera checks the OLPF type, and adjusts the color scienced based on the selected OLPF.
Page 121 IMPORTANT: Ensure the correct OLPF type is selected from the drop-down menu. Failure to select the correct OLPF type will affect color accuracy. NOTE: If you are unsure which OLPF is installed, go to “Verify Installed OLPF” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 122: Media Menu
For more information about using media, see the DSMC Media Operation Guide, available at www.red.com/ downloads. DEVICE Format and eject (unmount) the SSD. CLIPS View and load clips on the SSD in thumbnail view. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 123: Playback Menu
Displays the metadata for the selected clip. PLAYBACK STATUS BAR Displays the progress of the clip during playback. When using the touchscreen, swipe your finger right and left to fast-forward and rewind the clip, respectively. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 124 R E D D S M C O P E R AT I O N G U I D E PLAYBACK CONTROLS The images below show the Playback controls. Playback Controls 10 11 Play Options 14 15 17 18 Marker Options COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 125 Out Point, Previous Marker, and Next Marker. In Point Sets a red In Point marker in the Playback Status Bar. Use an In Point marker in conjunction with an Out Point marker to play only a certain portion of a clip. The In/Out Point markers help when the clip is long and you want to focus on a particular segment.
Page 126: Power Menu
“Turn Off the BRAIN” on page 1. Go to Menu > Power. 2. Select Shutdown. The Shutting Down... message displays and the camera turns off. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 127: Hdrx Menu
A Track: This track shows the video with the selected aperture and exposure settings applied. ‒ ‒ X Track: This track shows the video with the additional stops applied. NOTE: For more information, see the High Dynamic Range Video with HDRx article, available at www.red.com/ learn/red-101/hdrx-high-dynamic-range-video. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 128: Focus Menu
Manual: When selected, all focus operations are manual. Confirm: Enables the Center or Spot focus target. This mode provides additional focus assistance by using red, yellow, and green color changes to the focus spot window. Inadequate subject illumination and/or contrast may interfere using Confirm mode.
Page 129 Scene has reflective highlights. Subject is backlit. Inadequate surface contrast/detail inside the window. NOTE: Use Edge mode for assistance in these conditions. For more information, go to “Edge” on page COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 130 1. Go to the main screen. 2. Press the Down Arrow in the Navigation Group. The Spot target line weight increases and the red cursor under Menu dims slightly. 3. Use the directional arrows to move the Spot target to the desired location.
Page 131 Bar target Target is yellow or green; vertical Target is red; vertical bar on the bar on the right side is filled up left side is almost empty Pie target Target is yellow or green; line Target is red;...
Page 132 (A, B, C, and D). For example, if rack point A is selected when you trigger the AF: Start action, the focus racks from point A to point B. ‒ Press a key that is mapped to racking to a specific rack point. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 133: Exposure Assist
The AE feature is different than traditional AE, in that RED AE only controls the amount of light that hits the sensor, either by adjusting aperture or exposure. RED AE analyzes RAW data before the ISO curve, and ensures that the sensor matches the user-selected brightness.
Page 134: Metering Mode
When the AE feature is able to match the sensor brightness, the overlay turns yellow. If the brightness fluctuates more than half of a stop, the overlay turns red. When AE is enabled, the “AE” indicator displays before the aperture and exposure parameters in the Upper Status Row.
Page 135: Presets Menu
You cannot update factory-installed presets, which end with “(RED)”. Clone...: Create a new preset using the selected preset as a template. Delete: Delete the selected preset. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 136 : Import selected Look from SSD to camera. All: Import all Looks from SSD to camera. ‒ For more information, see the “REDCINE-X PRO: Saving Looks to Camera” video tutorial, available at www.red. com/learn/workflow/redcine-x-saving-looks-camera. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 137: Auto Presets
On Enter Preview: The selected preset is applied every time the camera enters Preview mode, including at startup and when exiting Playback mode. On Enter Playback: The selected preset is applied every time the camera enters Playback mode. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 138: Chapter 6: Record And Monitor Audio
PRO I/O PRO I/O LINE 2 AES 3 PRO I/O AES 4 MONITOR LINE 1 4 CH TO 2 CH PEAK MIXER MONITOR LINE 2 POST-MIXER PRE-MIXER RECORDING PEAK METER PEAK METER COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 139: Set Up Audio
PRO I/O AES A/B (DIGITAL INPUT) The AES connector on the Pro I/O Module allows an input of 24-bit, 48 KHz AES digital audio. NOTE: Digital input audio is only available via the Pro I/O Module. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 140: Channel Modes
Use the limiter in dynamic environments where external mixers are not practical for controlling signal strength. The limiter is only available with analog audio input. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 141 NOTE: To link the amplification for each channel, go to Menu > Settings > Audio > Channel and select the Gain Sliders check box. For more information, go to “Link” on page 140. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 142: Audio Output Options
NOTE: To link the volume for Left and Right, go to Menu > Settings > Audio > Channel and select the Volume Sliders check box. For more information, go to “Link” on page 140. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 143: Audio Meter (Vu Meter)
The Audio Meter shows the incoming audio signal when a source is selected, even if the channel is not recorded. When a channel is recorded, the channel indicator left of the Audio Meter is green. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 144: Audio During Playback
0 dBFS Audio is clipping (if signal exceeds –1 dBFS, the whole bar is red) NOTE: In the American broadcast and post production systems, –20 dBFS roughly corresponds to 0 VU and 4 dBu. In a digital system, dBu is an approximation; the correct unit for digital audio levels is dBFS.
Page 145: Chapter 7: Redmote Operation
50 ft. The REDMOTE supports 16 (0-15) wireless channels ranging from 2.4 GHz to 2.4835 GHz. The default channel is 0. IMPORTANT: To operate properly, upgrade both REDMOTE and DSMC firmware to the most recent version. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 146: Controls, Connectors, And Leds
There are two (2) status LED indicators located above the rocker switch on the left side of the LCD display. REDMOTE LED COLOR/FLASHING DESCRIPTION Power/Recording LED Camera startup; camera recording Status/Connectivity LED Green Camera ready; REDMOTE connected Green flashing Searching/Establishing communication COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 147 Shutdown menu. Lock keys: Move the switch to the up position to prevent unintentional operation. “KEYS LOCKED” display above the Primary Soft Menu Buttons when lock is enabled. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 148: Redmote Basics
Power/Lock Switch, a slight power draw remains and continues to drain the battery. RECORD START/STOP Start Record: Press and release the REC button. The Power/Recording LED illuminates red and the Timecode value on the LCD display changes to red text.
Page 149 On loss of wireless communication, the REDMOTE scans for the camera it was last paired with. If the REDMOTE is unable to reconnect after 30 seconds, the manual Scan menu opens. DISCONNECT THE REDMOTE FROM A PAIRED DSMC 1. Press Button 1. 2. Select DISCONNECT. 3. Press ENTER. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 150 Green: The battery has a sufficient charge, or is fully charged. Yellow: The battery is somewhat depleted and should be recharged soon. Red: The battery is nearly discharged and should be recharged immediately. Wireless communication is at risk of being lost when the battery indicator is red.
Page 151: Redmote Lcd Display Menu
Audio input selection and levels Power Status Indicates DC supply voltage or % of remaining battery capacity including current supply voltage Camera ID Displays camera ID Wireless Status Displays signal strength when connected wirelessly COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 152: Upgrade Redmote Firmware
This section describes the REDMOTE firmware upgrade process using a Mac. INSTALL REDMOTE UPGRADE UTILITY (MAC) The REDMOTE Upgrade Utility enables you to upgrade REDMOTE firmware from your computer. 1. Download the REDMOTE Upgrade Utility, available at www.red.com/downloads. 2. Uncompress and open the zip file. 3. Open the REDMOTE_Upgrade_Utility folder.
Page 153 This section describes the REDMOTE firmware upgrade process using Windows ® INSTALL REDMOTE UPGRADE UTILITY (WINDOWS) 1. Download the REDMOTE Upgrade Utility, available at www.red.com/downloads. 2. Uncompress and open the zip file. 3. Open the REDMOTE_Upgrade_Utility folder. 4. Open the Win folder.
Page 154 NOTE: If the REDMOTE does not connect to the Windows computer, download the REDMOTE Firmware file from www.red.com/downloads, open the read_me_redmote_vX.X.XX file, and follow the instructions to manually set up the network connection. For additional assistance, contact RED SUPPORT at https:// support.red.com.
Page 155: Chapter 8: Timecode, Genlock, Multi-Camera Setup
Edge: Edge timecode is continuous between clips, meaning that when recording starts, timecode begins. and when recording stops, timecode stops. Edge timecode default begins at 01:00:00:00, but can be configured in the Media menu. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 156 5. Use the additional controls to sync TOD timecode with the RTC or set manually. Alternatively, go to Menu > Media > Device > Format Media... to set Edge timecode manually. The TC indicator in the Lower Status Row remains gray when internal timecode is enabled. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 157 The TC indicator in the Lower Status Row turns green when an external timecode source is locked. Source: External: BRAIN NOTE: When an external source is selected but not present, timecode displays User Provided settings. REQUIRED CABLE 790-0154: 3BNC-to-00 LEMO Sync Cable COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 158: Genlock
Monitor Sync is achieved automatically when a genlock signal is provided that is compatible with the current monitor output frequency. When Monitor Sync is achieved, the GEN indicator in the Lower Status Row illuminates green. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 159 The GEN indicator in the Lower Status Row turns green when a compatible genlock signal is present and genlock is enabled. The SYNC indicator in the Lower Status Row turns green when Sensor Sync is achieved. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 160: Master/Slave Operation
3. On the Slave camera(s), follow the instructions below: A. Go to Menu > Settings > Setup > Communication. B. Type a name for the camera (Example: CAM B, RIGHT, SLAVE, etc) in the Name field. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 161 The LAN indicator in the Lower Status Row illuminates green. NOTE: Cameras can also be set up in Master/Master configuration. To set as Master/Master, set Target to All on both cameras, allowing either camera to make changes and control record start/stop. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 162 The only exception is the camera-generated wildcard characters. For example: Master: A001_C001_0503B6.R3D Slave: A001_C001_0503R7.R3D NOTE: Reel No, Cam ID, and Cam Pos can be set when formatting media at Menu > Media > Device. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 163: Set Up Stereo/3D Configuration
3D CONFIGURATION EXAMPLE The diagram below is an example of how to set up a 3D configuration. REQUIRED CABLES 790-0163: Master/Slave Gig-E Cable 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 164: Set Up A Camera Array
B. Connect the Ethernet connector to the router. 4. On all cameras, follow the instructions in “Set Reel Number, Camera ID, and Camera Position” on page to prepare media and camera settings. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 165 The diagram below is an example of how to set up a camera array. REQUIRED CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable (required per camera) 790-0159: LEMO-To-CAT5E Ethernet Cable (9') (required per camera) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 166: Set Up Motion Control (Moco)
CTRL port on the BRAIN. 2. Go to Menu > Settings > Setup > GPIO/Sync. 3. On the Sync tab, set Sensor Sync Mode to MoCo. MoCo GPIO/Sync Settings 4. Set Genlock Source to BRAIN. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 167 Supply a pulse from the Motion Control device to sync the shutter to the rising edge of the sync input. For more information, refer to the Motion Control manufacturer’s instructions. REQUIRED CABLE 790-0154: 3BNC-to-00 LEMO Sync Cable (required per SYNC and CTRL port used) COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 168: Compatible Devices
The following timecode and genlock devices are compatible with the DSMC . Additional timecode devices may ® be compatible, but have not yet been tested by RED. COMPATIBLE TIMECODE DEVICES The following timecode devices have been confirmed for compatibility with the DSMC:...
Page 169: Chapter 9: Upgrade Dsmc Firmware
D. Turn off the camera, and remove the SSD. You will copy the files back to your camera after the upgrade procedure, as described in Step 2. Connect an SSD (RED MINI-MAG or RED STATION REDMAG 1.8") to your computer. NOTE: On Mac computers with REDCINE-X PRO installed, RED Watchdog mounts the SSD as Read-Only ®...
Page 170 109. NOTE: You must black shade an EPIC DRAGON or SCARLET DRAGON after upgrading it. 16. After offloading firmware upgrade files and preset files from an SSD, reformat the SSD before recording. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 171: Chapter 10: Dsmc Maintenance
The camera sensor and optical low-pass filter (OLPF) are EXTREMELY sensitive to dust, debris, and contamination. As with all optical glass, any type of physical contact with the OLPF may scratch or damage the surface. RED recommends that you clean the camera sensor or OLPF using physical contact ONLY if absolutely necessary.
Page 172: Lcd And Evf Screens
172. SCREEN STORAGE Store any RED device with a screen in a RED Microfiber bag. Storing devices in a RED Microfiber bag preserves the superior quality of the specialized AR and AS coatings on the LCDs. Hand wash and air-dry the RED Microfiber bag regularly.
Page 173: Chapter 11: Troubleshoot Your Dsmc
SSDs. 10. If any errors occur, save a log file and submit a Technical Support request at https://support.red.com. NOTE: Problems or dropped frames found during the stress test display as “Errors” in the bottom of the user interface.
Page 174: Preset Could Not Be Applied
119. Upgrade your camera firmware. For more information, go to “Upgrade DSMC Firmware” on page 170. Perform a System Restore. For more information, go to “Restore System” on page 118. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 175: Camera Does Not Recognize Lens
SCREEN FREEZES OR DOES NOT DISPLAY SYMPTOM The screen freezes or does not display. POTENTIAL RESOLUTION Perform a Hard Restore. For more information, go to “Perform a Hard Restore” on page 177. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 176 A. Connect an SSD (RED MINI-MAG or RED STATION REDMAG 1.8") to your computer. NOTE: On Mac computers with REDCINE-X PRO installed, RED Watchdog mounts the SSD as Read- Only by default, which means that you are unable to write files (including firmware upgrade files) to the SSD.
Page 177 “Perform a Hard Restore” on page 177. Update the camera firmware to the latest release build available for download at www.red.com/downloads. PERFORM A HARD RESTORE A common way to resolve camera firmware issues is to perform a Hard Restore. A Hard Restore functions like a System Restore in that it changes all settings to the factory default values.
Page 178: Image Appears Grainy
Go to Menu > Settings > Look > Color, and check the Saturation setting. If the Saturation setting is set to a low value, change the Saturation to a higher value. Perform a System Restore. For more information, go to “Restore System” on page 118. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 179: Incorrect Color Temperature
“Verify Installed OLPF” on page TIMECODE OR GENLOCK DOES NOT FUNCTION SYMPTOM The SYNC, GEN, and/or TC light is red, yellow, or grayed out. POTENTIAL RESOLUTIONS Ensure your timecode or genlock device is compatible. For more information, go to “Compatible Devices”...
Page 180: Appendix A: Technical Specifications
Project Frame Rates 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) , JPEG 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime ®...
Page 181 R E D D S M C O P E R AT I O N G U I D E EPIC DRAGON TECHNICAL SPECIFICATIONS SPECIFICATION DESCRIPTION Operating Temperature Range 0˚C to 40˚C (32˚F to 104˚F) Storage Temperature Range –20˚C to 50˚C (–4˚F to 122˚F) 1. 480p is available for HDMI only. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 182: Scarlet Dragon
Project Frame Rates 23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K: DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG Avid AAF, MXF.
Page 183 “SCARLET DRAGON Formats” on page 91 for a full list. 2. 480p is available for HDMI only. 3. To see all of the maximum available REDCODE values, see the DSMC Media Operation Guide at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 184: Epic Mysterium-X
23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG Avid AAF, MXF.
Page 185: Scarlet Mysterium-X
23.98, 24, 25, 29.97, 47.96, 48, 50, 59.94 FPS, all resolutions Delivery Formats 4K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 2K : DPX, TIFF, OpenEXR (.RED via RRencode Plugin) 1080p RGB or 4:2:2, 720p 4:2:2 : Quicktime, JPEG Avid AAF, MXF.
Page 186: Brain Dimensions
R E D D S M C O P E R AT I O N G U I D E BRAIN DIMENSIONS NOTE: Dimensions are shown in mm. EPIC BRAIN DIMENSIONS FRONT VIEW 98.00 147.00 137.00 COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 196: Appendix B: Input/Output Connectors
® ® NOTE: When connecting a cable to a connector, align the key and red marker on the cable connector with the corresponding key and marker on the device connection. NOTE: Connector diagram images are for reference only. Diagrams are not to scale.
Page 197: 3G-Sdi (Hd-Sdi) Out
If you have a drop frame project time base (such as 23.98), you can select only drop frame frequencies. 75 OHM BNC CONNECTOR SIGNAL DESCRIPTION DIRECTION Center 3G-SDI SMPTE ST 424 Shield/Screen GROUND Camera ground COMPATIBLE CABLE 790-0341: RED HD-SDI Cable (6') COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 198: Hdmi Out
2. The HDMI output is progressive scan (p); it does not support progressive segmented frame (PsF) or interlaced (i) scan formats. COMPATIBLE CABLE 790-0331: RED HDMI Cable (5') HEADPHONE The 3.5mm stereo jack provides two (2) channels of audio for monitoring. For maximum quality, use high impedance headphones.
Page 199: Sync (Video Sync In)
Batteries: 10 V min. 2x AA or AAA 3x AA or AAA 68 ohm 1/4 W Trigger Button Circuit Diagram NOTE: In the diagram above, values are approximate. Use standard values. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 200: Ctrl (Rs232 Control)
COMPATIBLE CABLES 790-0154: 3BNC-to-00 LEMO Sync Cable 790-0187: 4-Pin 00 LEMO-to-Flying Lead 790-0415: RED Start/Stop Cable (14-Pin LEMO to SYNC, CTRL, BNC) 790-0428: RED Start/Stop Cable (14-Pin to 00B SYNC) CTRL (RS232 CONTROL) The 4-pin 00B LEMO CTRL connector supports RS232 remote control for 3D camera communication and third- party metadata ingest applications.
Page 201: Gig-E (Ethernet)
Data pair A+ BI_DB+ Data pair B+ BI_DB- Data pair B- Do not connect NOTE: Mating connector is FGG.0B.309.CLAD32Z. COMPATIBLE CABLES 790-0159: LEMO-to-CAT5E Ethernet Cable (9') 790-0163: Master/Slave Gig-E Cable (4') COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 202: Dc In (Power Input)
Power return (camera ground) SDA-BATT Serial battery bus data NOTE: Mating connector is FGJ.1B.306.CWLD72Z. COMPATIBLE CABLES 790-0138: 2B-to-1B LEMO Power Adaptor Cable 790-0164: XLR Power Cable (10') 790-0165: XLR Power Cable (30") COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 203: Microphone Audio)
790-0229: XLR Microphone Cable (20") SSD MODULE CONNECTORS The connectors for the side SSD modules and the REAR SSD MODULE are described in the RED DSMC Media Operation Guide, available at www.red.com/downloads. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 204: Appendix C: Lens Mounts And Lenses
The ND filter also includes a linear polarizer and IR filter for improved image color and contrast. For more information, see the MOTION MOUNT Operation Guide, available at www.red.com/downloads. NOTE: HDRx is not available while the MOTION MOUNT is installed. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 205 R E D D S M C O P E R AT I O N G U I D E REMOVE A LENS MOUNT NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only ®...
Page 206 R E D D S M C O P E R AT I O N G U I D E INSTALL A LENS MOUNT NOTE: You can change lens mounts in the field. However, RED recommends that you change lens mounts only in dust-free environment.
Page 207: Lenses
DSMC PL MOUNT SUPPORTED LENSES The DSMC TI PL Mount, DSMC PL Mount (Magnesium), and the RED MOTION MOUNT Ti PL are compatible with most standard PL mount cinema lenses and devices. For information about the compatibility of the RED...
Page 208 3. Remove the rear lens cap. 4. Align the red dot on the lens with the red dot on the DSMC Canon Mount and position the lens in the mount. 5. Turn the lens clockwise until it clicks into place.
Page 209 Canon EF 300mm f/4L IS Canon EF 400mm f/2.8 IS II USM Canon EF 400mm f/2.8L IS Canon EF 400mm f/2.8L IS with 1.4x Extender Canon EF 400mm f/2.8L IS with 2x Extender COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 210 Tamron SP 24-70mm f/2.8 Di VC USD Tokina Tokina AT-X 116 Pro DX, 11-16mm f/2.8 SD IF DX Tokina AT-X 116 Pro DX-II, 11-16mm f/2.8 SD IF DX Zeiss Otus Zeiss Otus 55mm f/1.4 ® COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 211 2. Press and hold the lens release button. While holding the lens release button, turn the lens clockwise until it stops and remove it from the DSMC mount. 3. Replace the rear lens cap and DSMC mount cap when items are not in use. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 212 Zeiss Distagon T* 21mm f/2.8 ZF.2 ® Zeiss Distagon T* 35mm f/1.4 ZF.2 Zeiss Planar Zeiss Planar T* 50mm f/1.4 ZF.2 ® Zeiss Planar T* 85mm f/1.4 ZF.2 1. Iris control only, no AF. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 213 For more information, go to OLPF Frame Installation Instructions available at www.red.com/downloads. WARNING: Attempting to mount Leica lenses of focal lengths of less than 50mm could result in damage to the lens and/or the camera. COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 214 User 1 Press Magnify: Toggle User 2 Press Exposure Check: Toggle User 1+2 Press LCD: Toggle Lock EVF (BRAIN and Rear) User 1 Press Magnify: Toggle User 2 Press Exposure Check: Toggle COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 215 AF: Start Rocker + Press Iris: Open Rocker - Press Iris: Close Rotary Front CW Navigation: CW Rotary Front CCW Navigation: CCW Rotary Jog CW Navigation: CW Rotary Jog CCW Navigation: CCW COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 216 Rocker + Press Iris: Open Rocker - Press Iris: Closed PRO I/O GPIO GPI A LOW Record: Toggle GPI B Low Record: Toggle SW 1 Low Go to: Playback SW 2 Low Record: Toggle COPYRIGHT © 2015 RED.COM, INC 955-0020_V6.0, REV-D |...
Page 217 R E D D S M C O P E R AT I O N G U I D E PRESET DEFAULT KEY FUNCTIONS The following table describes default key functions for the Default Stills and Motion presets. NOTE: You cannot update factory-installed presets, which end with “(RED)”. PRESET DEFAULT KEY FUNCTIONS ITEM...
Page 218 MENU See the menu map on the following page. The menu map is applicable to the following cameras, except as noted in the this guide: EPIC-M RED DRAGON™ (CARBON FIBER) EPIC-M RED DRAGON EPIC-X RED DRAGON SCARLET DRAGON...
Page 219 Motor Control 1. Only available when a REDCAST™ Module is attached. } General 2. Not available on any BRAIN with a MONOCHROME or RED DRAGON MONOCHROME sensor. } Focus 3. Only available when a MOTION MOUNT is attached. } Iris 4.
Page 220 RED DIGITAL CINEMA COPYRIGHT© 2015 RED.COM, INC. All trademarks, trade names, logos, icons, images, written material, code and product names used in association with the accompanying product are the copyrights, trademarks or other intellectual property owned and controlled exclusively by RED.COM, INC.
