Workstation 5 Troubleshooting
Operational Troubleshooting
Comments: The BIOS Splash screen remains visible for about 20 - 22
seconds, During this time, the BIOS initalizes hardware and performs a
POST of major system board components. If the POST is successful, the
beeper sounds once and the System BIOS Configuration box appears in
the upper half of the screen. Next, a series of custom pre-boot firmware
applications execute, one of which checks for the presence of the CF
Card and USB Flash Drive. Text messages produced by the pre-boot
firmware appear directly below the configuration box as shown in
Figure 3-1.

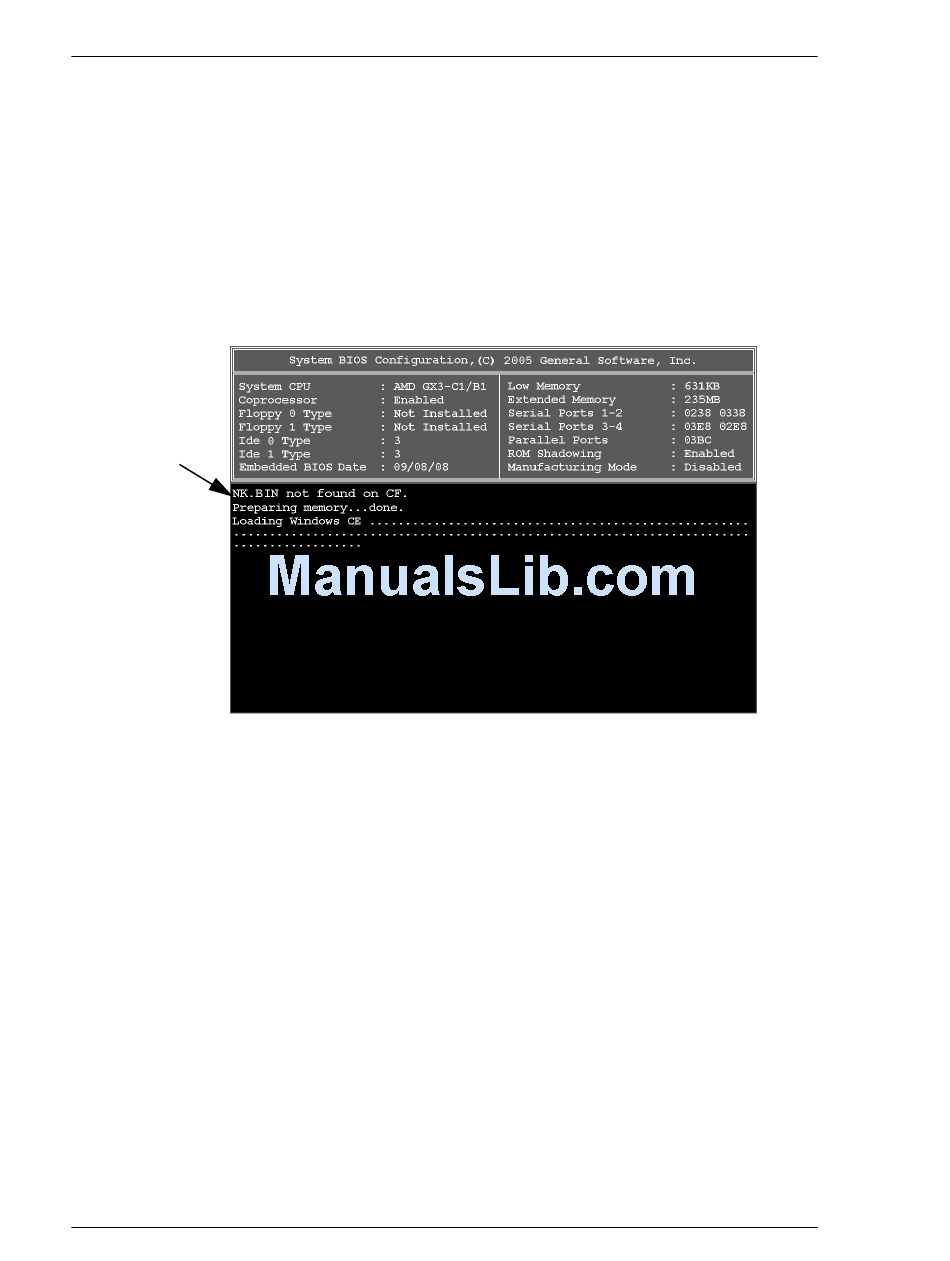

Pre-boot text
messages
Figure 3-1: Workstation 5 Pre-boot Text Messages
The message, 'NK.BIN not found on CF' is not an error, but indicates
that a pre-boot firmware application called FlashCE did not find the
NK.BIN file on the compact flash card (as part of an upgrade) and is
continuing with the boot process. See page 3-12 for more information
about how the pre-boot firmware applications interact with the CAL to
perform platform updates and BIOS updates.
3. Does the unit attempt to boot to the Operating System?
If YES, and Windows Embedded CE 6.0 is installed, see page 3-8.
o
If YES, and Windows Embedded for Point Of Service is installed, see
o
page 3-10.
If NO - the unit produces a series of beeps, count them or check the
o
LCD for an error message. See below.
