Connector and Cable Diagrams
System Board Connectors
System Board Connectors
This section details connectors located on the Workstation 5 system board.
Magnetic Stripe Interface
The internal magnetic card reader connector is CN14, located on the system

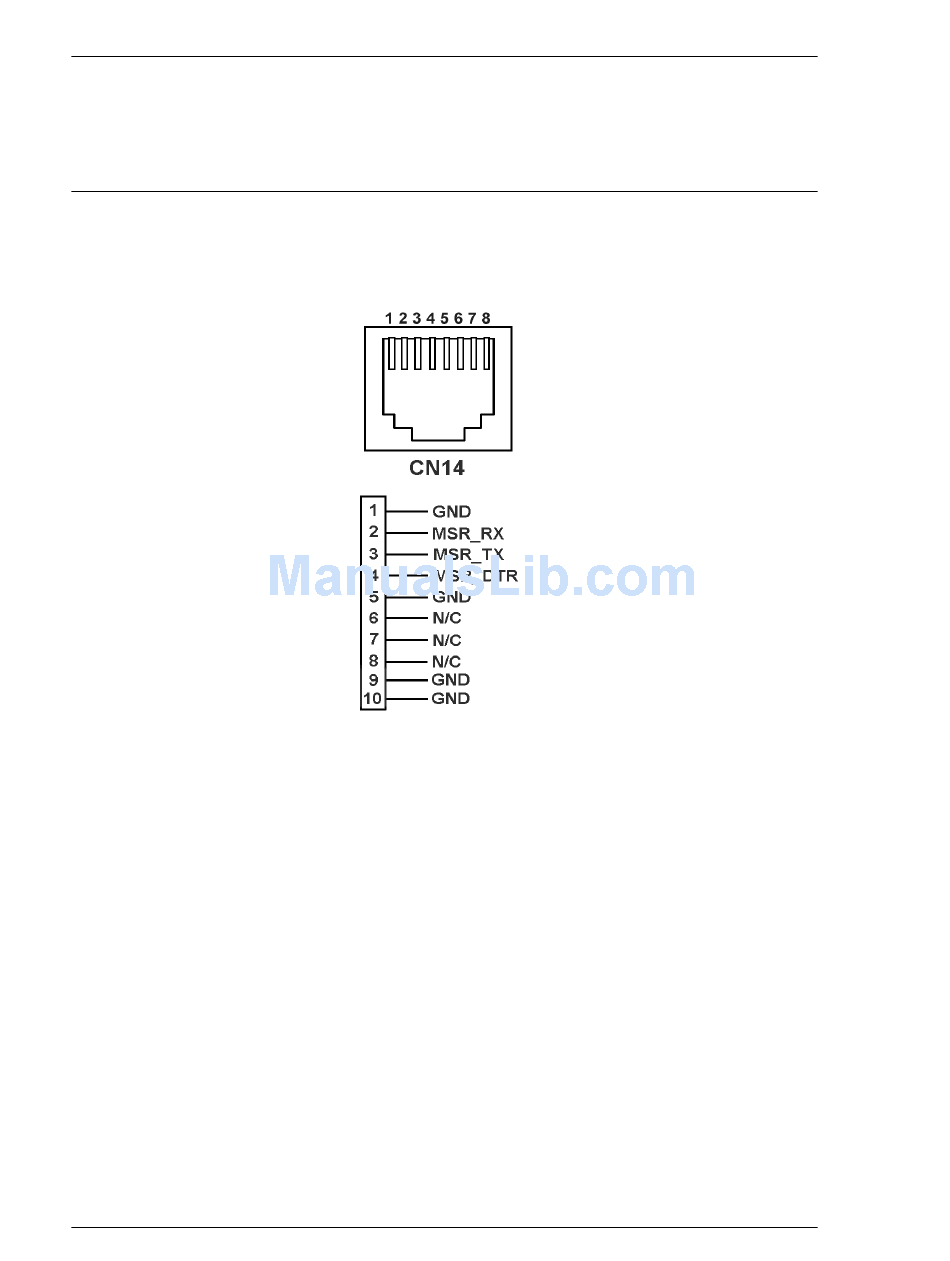

board. The pin-outs for this connector are shown in Figure B-7,
Figure B-7: Workstation 5 System Board MSR Connector
B-6
Workstation 5 Setup Guide
