The Integrated LCD Customer Display

The Integrated LCD Customer Display

This procedure describes how to remove and replace the Integrated LCD
Customer Display.
Remove the AC power cable from the unit.
1.
Place a towel or soft cloth on your work surface to protect the LCD and
2.
touchscreen, then place the workstation face down on this surface.
Remove the LCD Customer Display Interface Cable from the IO Panel
3.
Connector.
Depress the clips on each side of the Customer Display Bracket and pull
4.
the display assembly from the base.

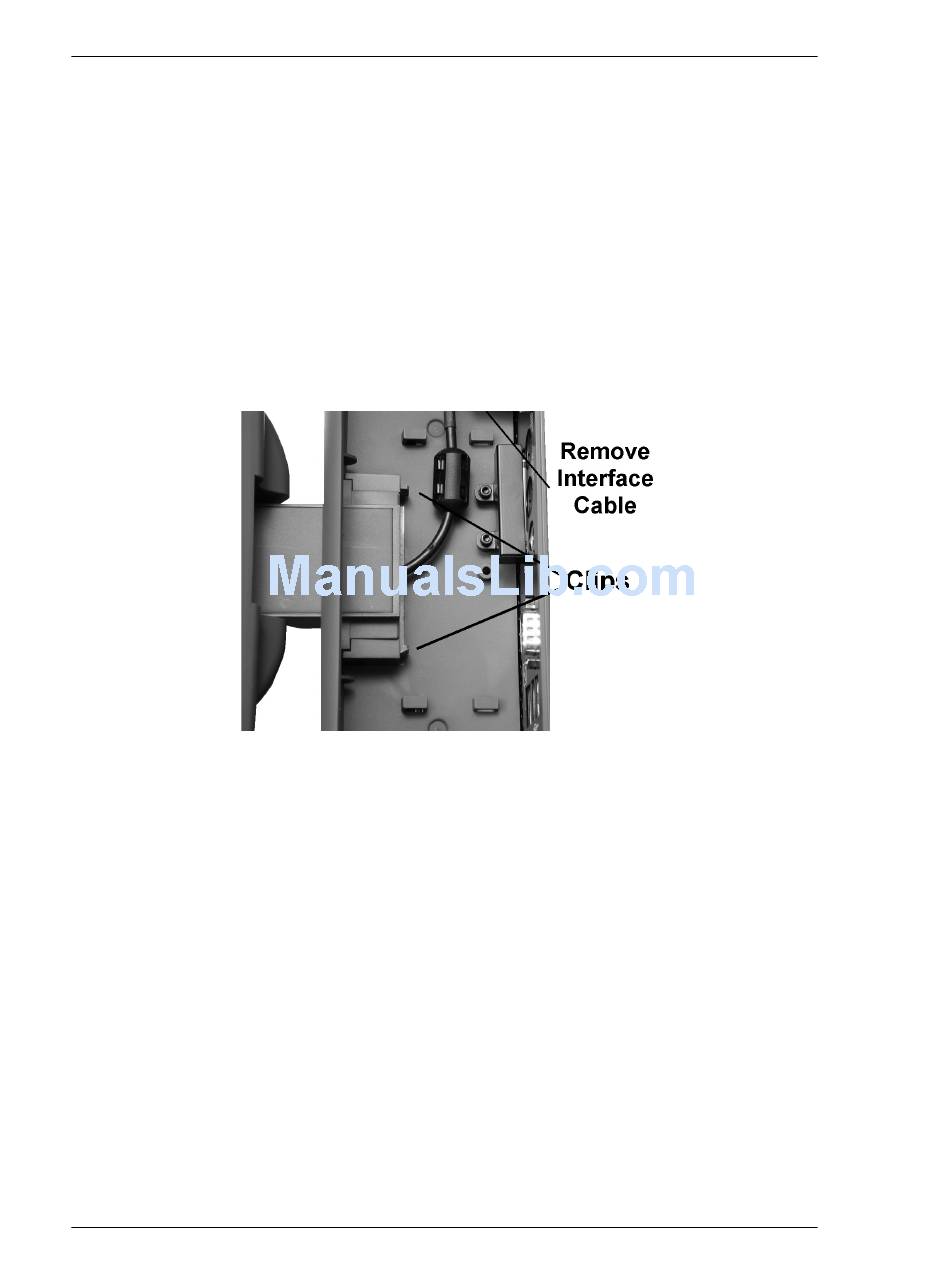

Figure 4-30: Removing the LCD Customer Display
To install the LCD Customer display, feed the interface cable through the
5.
cut-out then slide the display bracket until the side clips lock into place.
Connect the interface cable to the IO Panel Connector.
