Workstation 5 System Board Technical Descriptions
Workstation 5 System Board Block Diagram

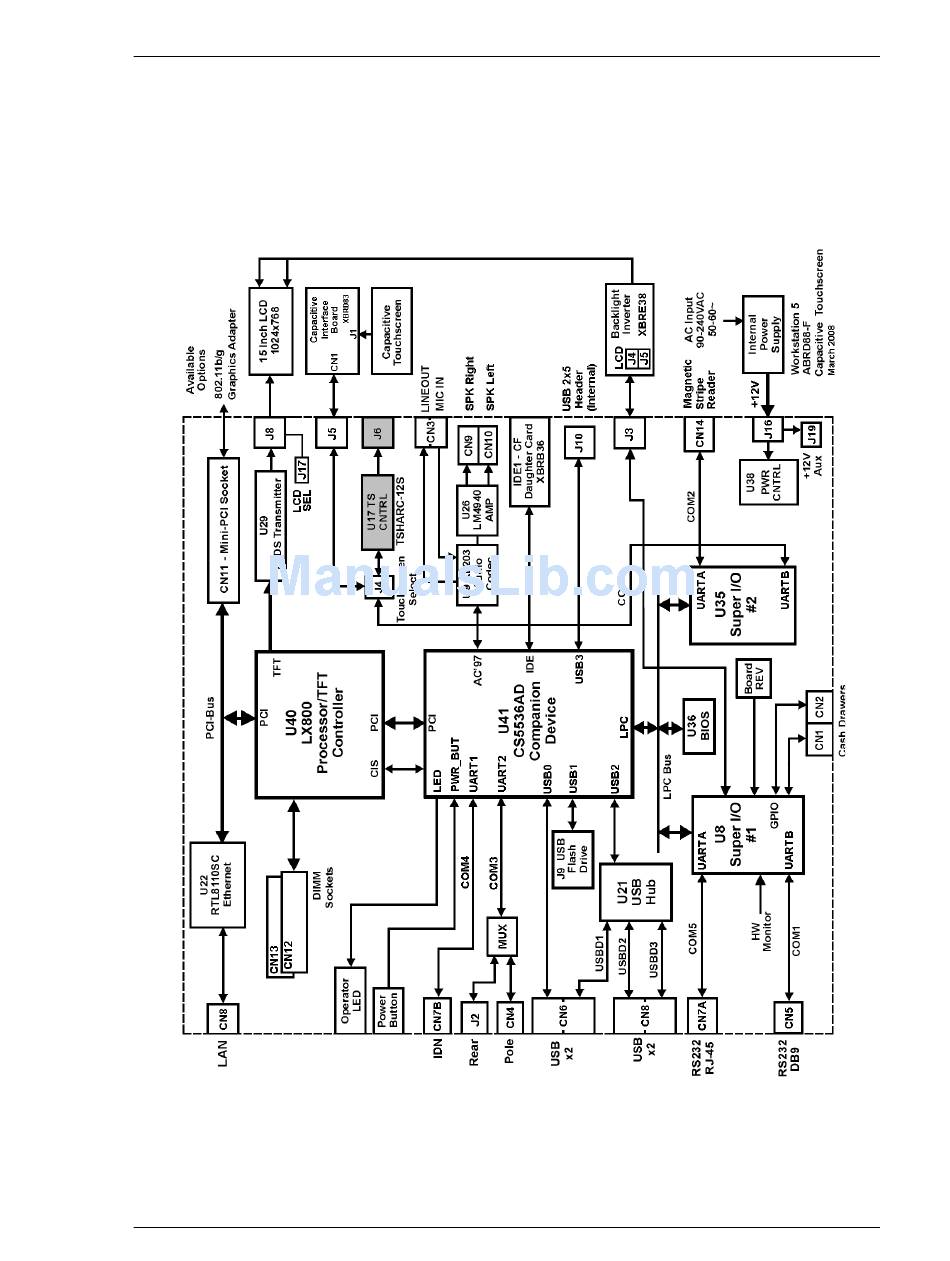

Figure 2-2 below displays a block diagram of the Workstation 5 with an
optional capacitive touchscreen installed. This configuration adds the
Capacitive Touchscreen Interface Board. This configuration is not in
production,
Figure 2-2: Workstation 5 Block Diagram /w Capacitive Touchscreen
Workstation 5 Field Service Guide 2-3
