Install the replacement system board in the chassis.
7.
Install the power button actuator assembly in the base and tighten the
8.
shoulder screw. Do not overtighten.
9. Install the system board mounting hardware, but do not fasten. Position the
System Board so that SW2 just touches the actuator as shown in the
illustration. Tighten the mounting hardware including the all stand-offs. If
the system board screws are not fastened securly, the system board can
shift position and cause issues to the power button actuator.

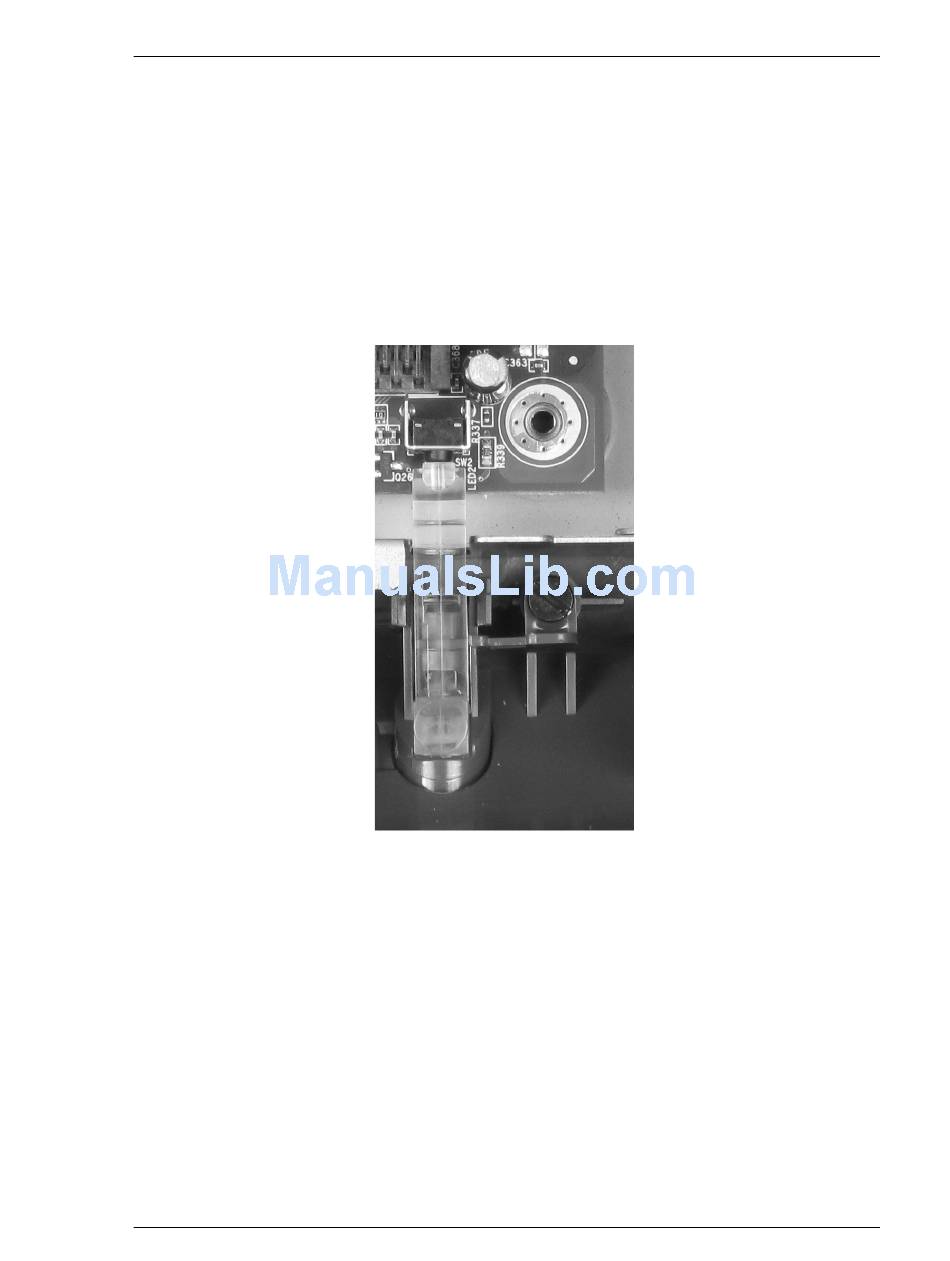

Figure 4-19: Installing the Power Switch Activator
Workstation 5 Field Service Guide
Remove and Replace the Workstation 5 FRUs
The System Board
4-19
