Magnetic Card Reader

The procedure below describes how to remove and replace the Magnetic Card
Reader. The Mag Stripe Reader FRU is a complete assembly, ready to install.
Removal
1. Remove the LCD/Touchscreen assembly as previously described.
Remove the MSR assembly from the base. Figure 4-4.
2.
Press on the tab of the modular connector to remove it from CN14. Pull the
3.
cable out of the cut-out in the side of the chassis.
Workstation 5 Field Service Guide
Remove and Replace the Workstation 5 FRUs

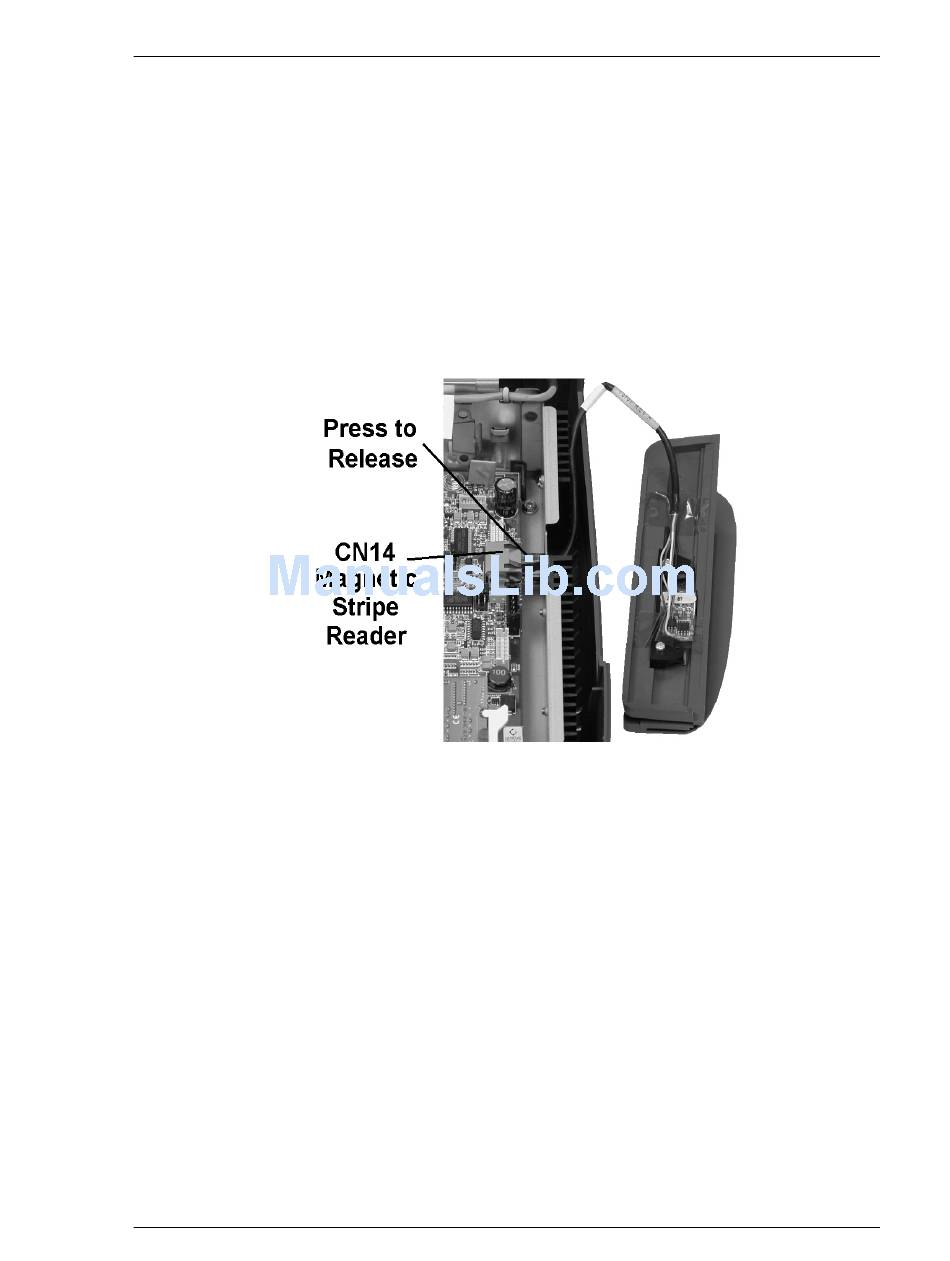

Figure 4-4: Removing the Mag Card Reader

Magnetic Card Reader

4-5
