Connector and Cable Diagrams
IO Panel Connectors

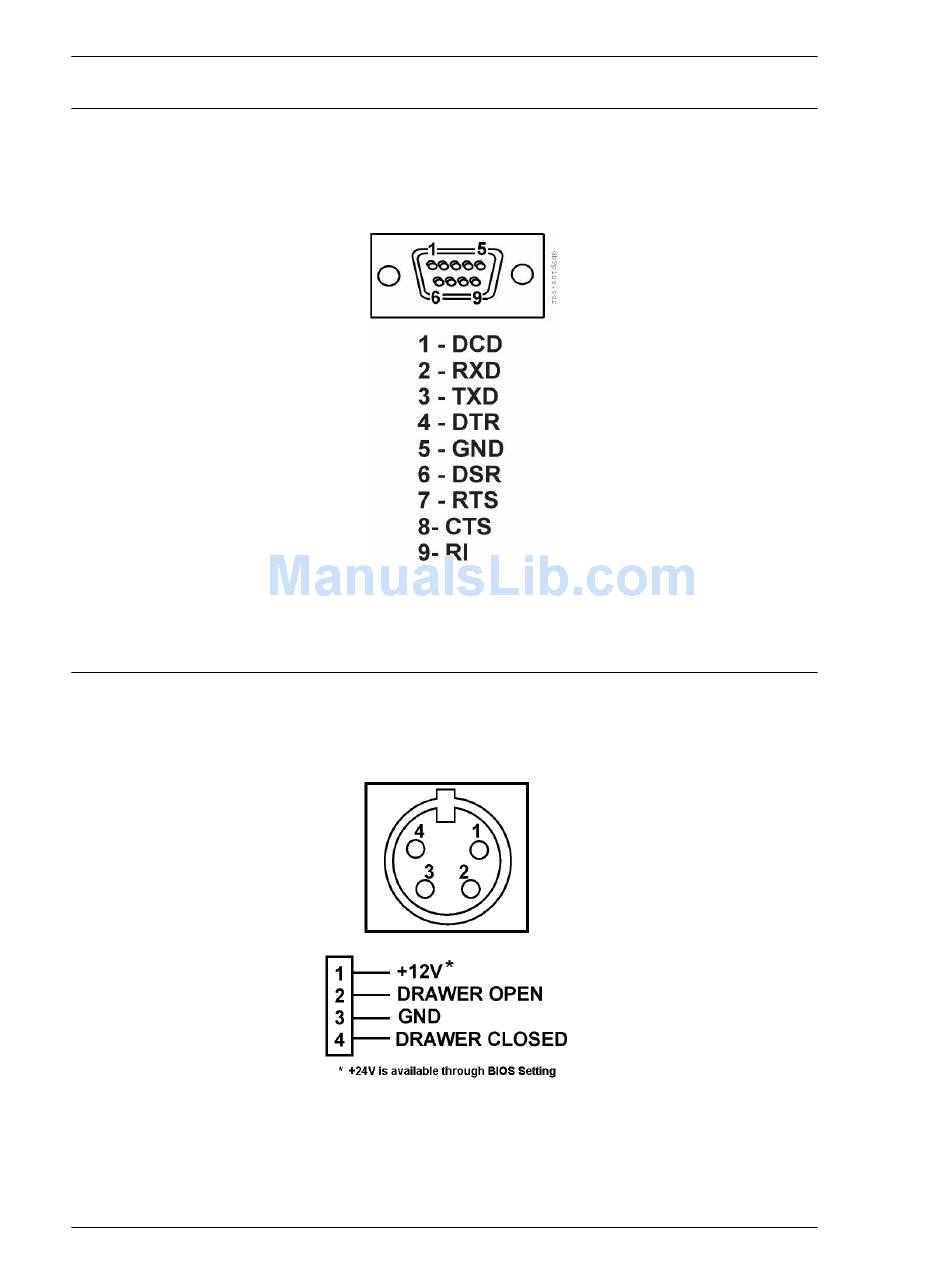

RS232 Connector
A single DB9F RS232 connector assigned to COM1 is provided. The pin-out is
shown below.
Cash Drawer 1 and 2 Connectors
B-4
Figure B-4: DB9 RS232 Connector Diagram
Figure B-5: Cash Drawer Connector Diagram
Workstation 5 Setup Guide
