Remove and Replace the Workstation 5 FRUs
Reassembling the Workstation 5
Resistive Touchscreen
The standard resistive touchscreen configuration and jumper settings are
shown on the left side of Figure 4-32. Connect the LCD Data cable to J8,
the Backlight Inverter Cable to J3, and the resistive touchscreen ribbon
cable from J6. The ribbon cable is currently not keyed. Install the cable
with pin-1 oriented towards the front of the unit.
Capacitive Touchscreen
The optional capacitive touchscreen configuration is shown on the right
side of Figure 4-32 along with the correct setting of J4. .
Resistive

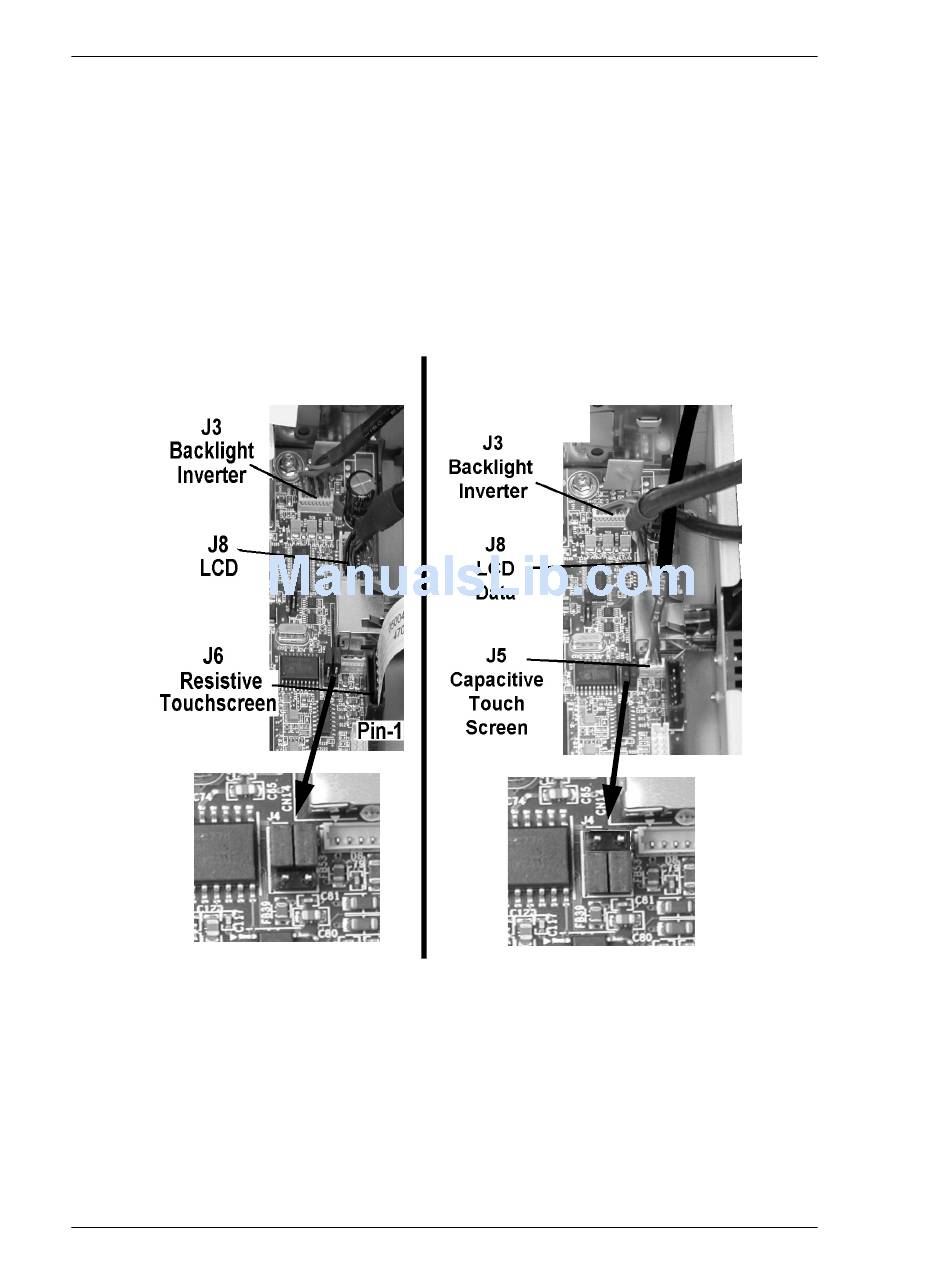

Figure 4-32: Connecting the LCD/Touchscreen Cables to the System Board
Note: As of March 2009, the capactive touchscreen option has not entered
production.
