Install the LCD/Touchscreen Assembly in the base. The upper section of
3.
Figure 4-33, shows the rear of the assembly and corresponding slots in the
base. Insert the LCD/Touchscreen Assembly at the angle shown then rotate
down. Be sure to install the screw that fastens LCD/Touchscreen assembly
to the base.

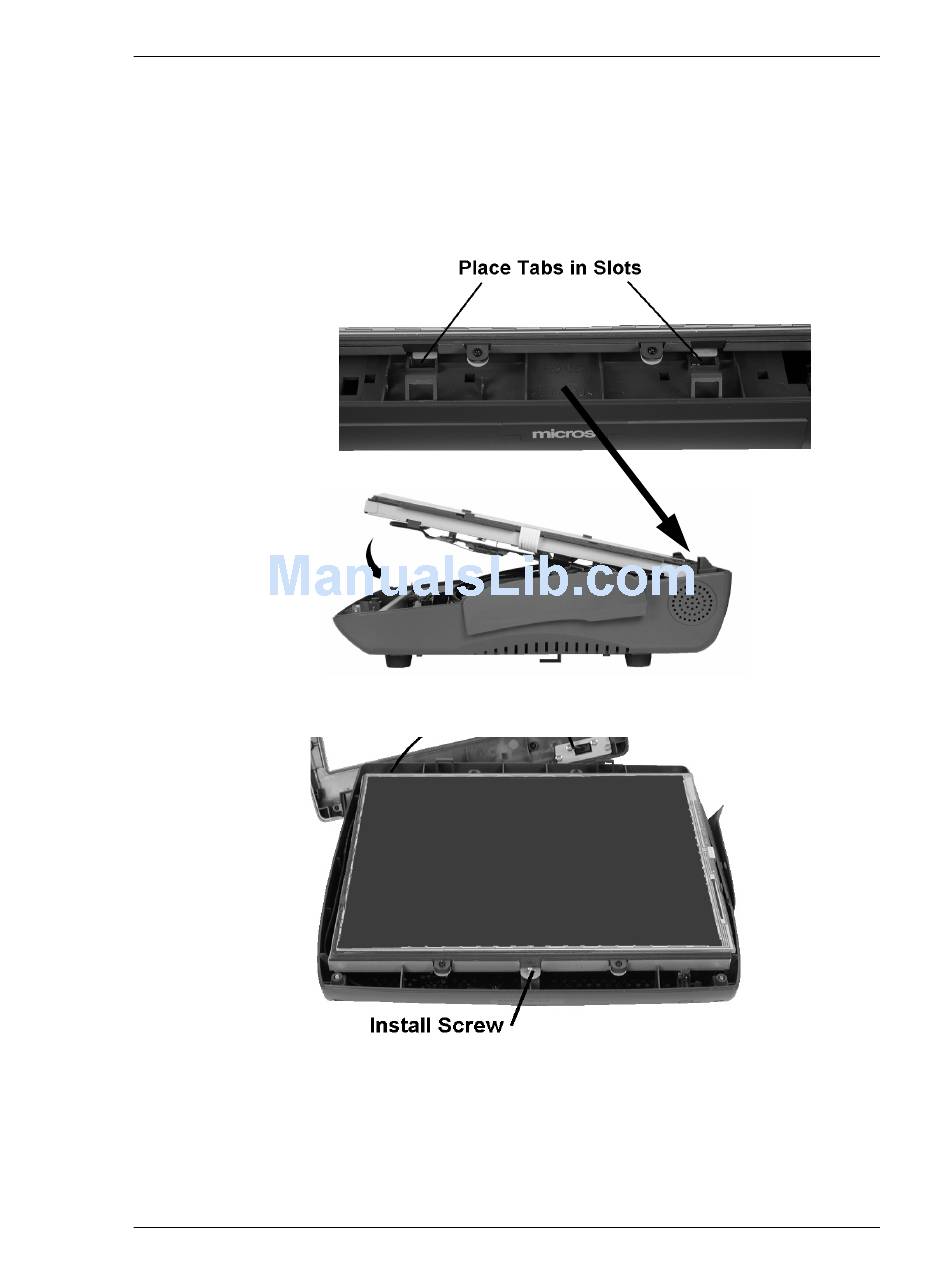

Figure 4-33: Installing the LCD/Touchscreen Assembly
If the LCD/Touchscreen assembly does not seat on the top of the
o
chassis, remove it and check for cable interference. All internal cables
must run below the top of the chassis to avoid interference.
